BLUEPRINT ENGINESPART NUMBER: 138-B427K700

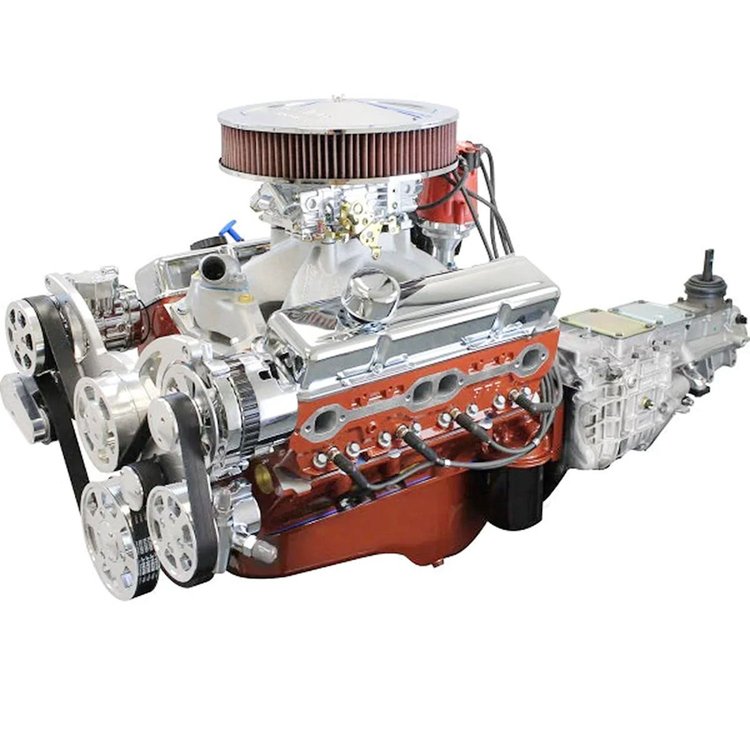

B427K700 Standard Edition GM Compatible Builder Series, Carb, Polished Pulley Kit
$19,49900
Truck Freight
Carbureted Engine and Transmission Package427 c.i. GM Compatible 540 HP / 535 lb-ft Torque 10.0:1 Compression 700R4 Automatic Transmission Aluminum Cylinder Heads Standard Edition Polished Pulley Kit Included Dyno Tested
This 427 c.i. GM Compatible Standard Edition Builder Series engine and transmission package is rated at 540 horsepower and 535 lb-ft of torque. It is built on a BluePrint Engines Cast Iron Block (4 Bolt Main, 4.125" Bore) and topped with Aluminum Cylinder Heads. The package pairs the engine with a 700R4 automatic transmission.
BluePrint Engines B427K700 Engine and Transmission Package Features:
- 540 hp and 535 lb-ft of torque
- 10.0:1 compression ratio
- Camshaft: Hydraulic Roller - .577 Intake / .577 Exhaust Lift - 240 Intake / 248 Exhaust Duration [email protected] LSA
- Rotating assembly: Forged Crank, 4.000 in. Stroke and 6.000 in. Rods, forged pistons
- Cylinder heads: Aluminum Cylinder Heads
- Intake: BluePrint Engines Single Plane, Satin Aluminum, Holley
- Transmission: 700R4 automatic
- Pulley kit: Polished - Reverse Rotation Short Water Pump, Type II Power Steering Pump, Remote Power Steering Pump Reservoir, 140amp 1-wire Alternator, 7B10 Peanut Style Air Conditioning Compressor
BluePrint Engines B427K700 Installation Notes:
- Recommended fuel: 91+ Octane
- Timing: Initial Timing 10-16 - Total Timing 32-34
- Firing order: 1,8,4,3,6,5,7,2
- Recommended torque converter stall speed: 2200+ RPM
- Recommended flexplate/flywheel: BPP399774
- Recommended harmonic balancer: BPP350
- Engine balance: Externally Balanced
- Recommended spark plug: BPP7938 NGK 7938 BKR5E, gapped at .035 in.
Part TypeEngine and Transmission Package
BrandBLUEPRINT ENGINES
Package Height30.0
Package Width30.0
Package Length60.0
Weight750.0 PG
Part CategoryPerformance Parts
Spark Plug Wires IncludedYes
Fuel Pump IncludedYes
Air Cleaner IncludedYes
Cylinder Heads IncludedYes
Water Pump IncludedYes
Harmonic Balancer IncludedYes
QuantityEA
Intake Manifold IncludedYes
Transmission TypeAutomatic
Engine BalanceExternally Balanced
Compression Ratio10.0:1
Transmission Model700R4
Rear Main Seal Style1 Piece
Fuel Delivery Type850cfm Double Pumper Carburetor w/ Manual Choke - Carbureted
Horsepower540
Distributor IncludedYes
Oil Pan IncludedYes-Rear Sump
Part FitmentSemi Universal
Timing Cover IncludedYes
Spark Plugs IncludedYes
Intake Manifold TypeSingle Plane, Satin Aluminum
Vendor Part NumberB427K700
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
