• Long Block w/361 HP/334 ft.lbs. TQ
• Carburetor
• Intake
• Distributor
• Damper
• Timing Cover
• Valve Covers
• Front Sump Oil Pan

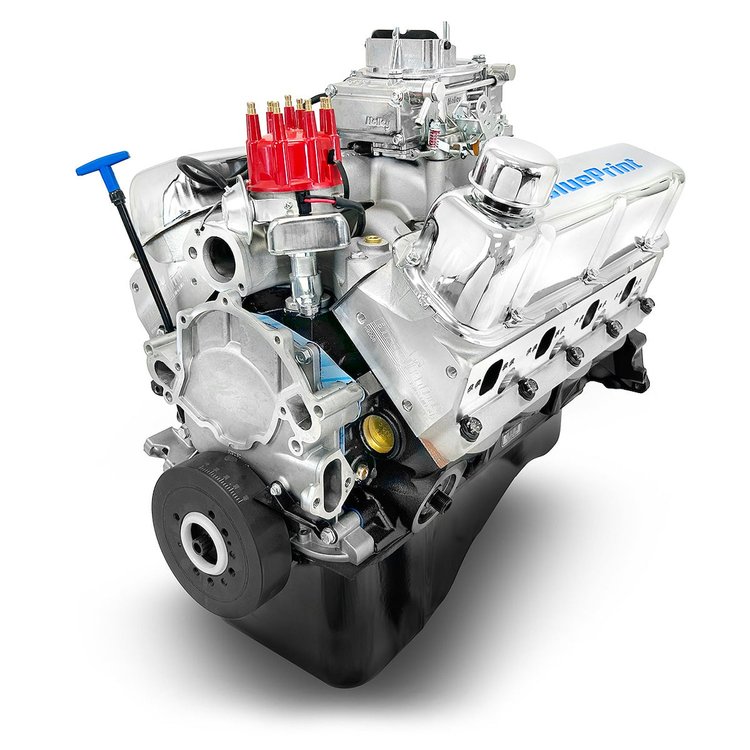

  Blueprint Engines BP302CTC Ford Small Block Compatible 302 ci. Long Block:

  • Block:
    • BluePrint Engines High-Strength Cast Iron Block
    • Increased Deck Thickness and Strength Webbing
    • Priority Main Oiling
    • Improved Water Jacket Design
    • 4-Bolt Main
    • 4 in. Bore
    • 1-Piece Rear Main Seal
  • Rotating Assembly:
    • Ford, Machined and Balanced by BluePrint Engines
    • 3 in. Stroke
    • OEM Type 5.090 in. Connecting Rods
    • Hypereutectic Pistons
    • 50 oz Externally balanced Front and Rear
  • Cylinder Heads:
    • BluePrint Aluminum Cylinder Heads HP9008
    • Compression Ratio: 9.4:1
    • 60 cc Chambers
    • 2.02 in. Intake/1.60 in. Exhaust Valves
    • 190 cc Intake/60 cc Exhaust Runners
  • Cam Specs:
    • Cam Type: Hydraulic Roller
    • .533 Intake/.544 Exhaust Lift
    • 215 Intake/220 Exhaust Duration @ .050
    • Lobe Seperation (LSA) 114
    • Firing Order: 1-5-4-2-6-3-7-8
  • Ignition Timing:
    • 10-16 Degrees Initial, 32-34 Total
  • Also Includes:
    • Front Sump Oil Pan
    • Holley Street Warrior 600cfm Vacuum Secondary Carburetor w/Electric Choke
    • Intake Manifold
    • Distributor
    • Harmonic Balancer
    • Valve Covers
    • Timing Cover

  Blueprint Engines BP302CTC Ford Small Block Compatible 302 ci. Long Block Notes:

  • Engine timing cover is designed for standard rotation water pump and pulley kit ONLY
  • Excellent cruiser and daily driver engine
  • Makes up to 16 inches of vacuum, and is designed to work excellent with power brakes, stock torque converter, stock gearing
  • Runs on 87 octane fuel

Emissions Note:

This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.

CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
