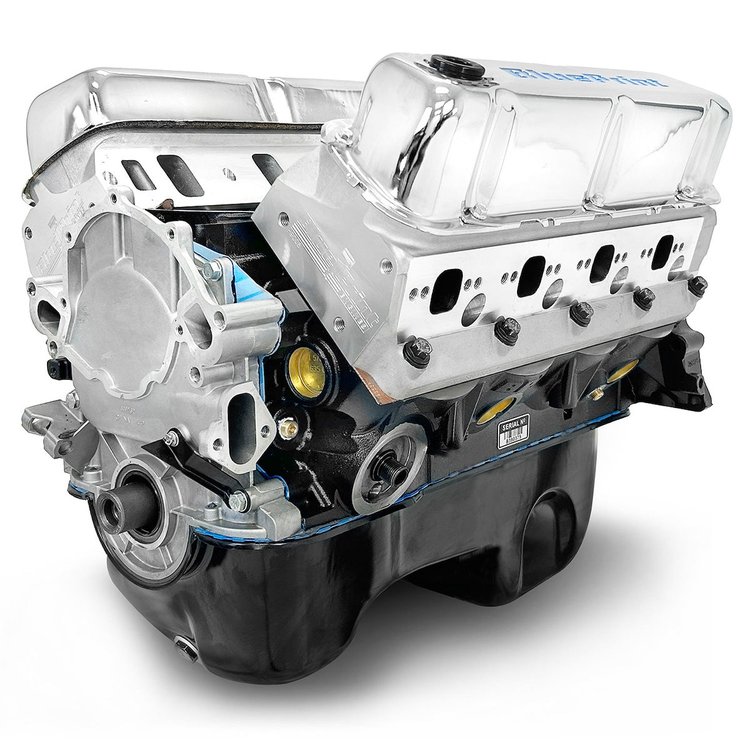

Blueprint Engines BP302RCT Ford Small Block Compatible 302 ci. Long Block:

• Block:
  • BluePrint Engines High-Strength Cast Iron Block
  • Increased Deck Thickness and Strength Webbing
  • Priority Main Oiling
  • Improved Water Jacket Design
  • 4-Bolt Main
  • 4 in. Bore
  • 1-Piece Rear Main Seal
• Rotating Assembly:
  • Ford, Machined and Balanced by BluePrint Engines
  • 3 in. Stroke
  • OEM Type 5.090 in. Connecting Rods
  • Hypereutectic Pistons
  • 50 oz Externally balanced Front and Rear
• Cylinder Heads:
  • BluePrint Aluminum Cylinder Heads HP9008
  • Compression Ratio: 9.4:1
  • 60 cc Chambers
  • 2.02 in. Intake/1.60 in. Exhaust Valves
  • 190 cc Intake/60 cc Exhaust Runners
• Cam Specs:
  • Cam Type: Hydraulic Roller
  • .533 Intake/.544 Exhaust Lift
  • 215 Intake/220 Exhaust Duration @ .050
  • Lobe Seperation (LSA) 114
  • Firing Order: 1-5-4-2-6-3-7-8
• Ignition Timing:
  • 10-16 Degrees Initial, 32-34 Total
• Also Includes:
  • Dual/Rear Sump Oil Pan
  • Valve Covers
  • Timing Cover

Blueprint Engines BP302RCT Ford Small Block Compatible 302 ci. Long Block Notes:

• Engine timing cover is designed for standard rotation water pump and pulley kit ONLY
• Excellent cruiser and daily driver engine
• Makes up to 16 inches of vacuum, and is designed to work excellent with power brakes, stock torque converter, stock gearing
• Runs on 87 octane fuel

Emissions Note:

This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.

CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
