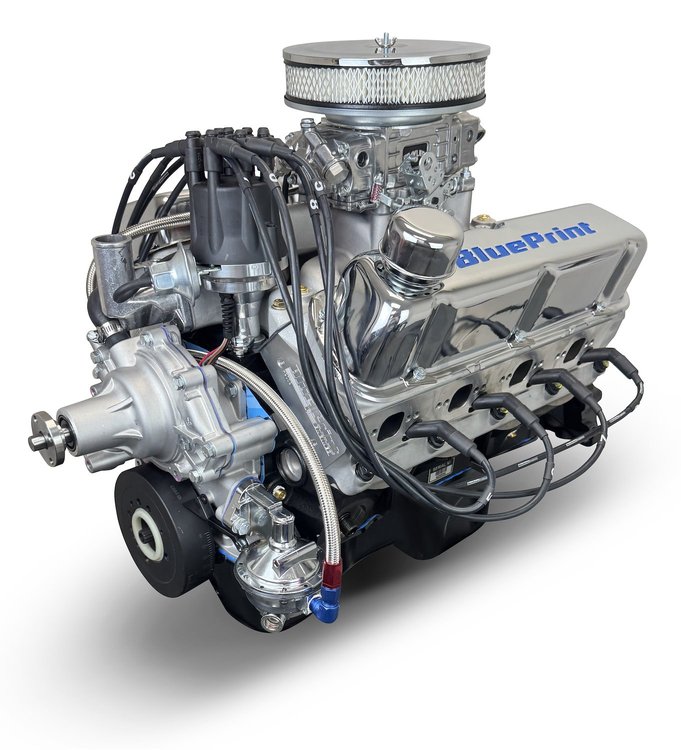

BP302RCTCD Ford Small Block Compatible 302 ci. Deluxe Dressed Crate Engine [Dual/Rear Sump]
InfoVehicle Info Needed
BLUEPRINT ENGINESPART NUMBER: 138-BP302RCTCD

BP302RCTCD Ford Small Block Compatible 302 ci. Deluxe Dressed Crate Engine [Dual/Rear Sump]

$7,29900
Truck Freight
ShippingShips on 11/23/2026
Lowest PriceLowest Price Guarantee

Items You Need

1-Ton Automotive Shop Crane [Boom Operating Range: 34 in. to 45 in.]

JEGS

1-Ton Automotive Shop Crane [Boom Operating Range: 34 in. to 45 in.]

Part Number : 555-81044K
$23698
Painted Long Tube Headers for 1979-1993 Ford Fox Body 5.0L

JEGS

Painted Long Tube Headers for 1979-1993 Ford Fox Body 5.0L

Part Number : 555-30071
$13799$252.99
You Save$115.00
Painted Long Tube Headers for Small Block Ford

JEGS

Painted Long Tube Headers for Small Block Ford

Part Number : 555-30070
$18499$203.99
You Save$19.00
Painted Black Shorty Headers for Small Block Ford Mustang, Cougar, Falcon, and more

JEGS

Painted Black Shorty Headers for Small Block Ford Mustang, Cougar, Falcon, and more

Part Number : 555-30076
$25919$281.99
You Save$22.80

Carbureted Engines
Ford 302 ci. Deluxe Engine
  • Includes:
    • Long Block w/361 HP/334 ft.lbs. TQ
    • Carburetor
    • Intake
    • Distributor
    • Damper
    • Timing Cover
    • Valve Covers
    • Water Pump
    • Plugs/Wires
    • Distributor
    • Thermostat/Housing
    • Dual/Rear Sump Oil Pan

      Blueprint Engines BP302RCTCD Ford Small Block Compatible 302 ci. Long Block:

      • Block:
        • BluePrint Engines High-Strength Cast Iron Block
        • Increased Deck Thickness and Strength Webbing
        • Priority Main Oiling
        • Improved Water Jacket Design
        • 4-Bolt Main
        • 4 in. Bore
        • 1-Piece Rear Main Seal
      • Rotating Assembly:
        • Ford, Machined and Balanced by BluePrint Engines
        • 3 in. Stroke
        • OEM Type 5.090 in. Connecting Rods
        • Hypereutectic Pistons
        • 50 oz Externally balanced Front and Rear
      • Cylinder Heads:
        • BluePrint Aluminum Cylinder Heads HP9008
        • Compression Ratio: 9.4:1
        • 60 cc Chambers
        • 2.02 in. Intake/1.60 in. Exhaust Valves
        • 190 cc Intake/60 cc Exhaust Runners
      • Cam Specs:
        • Cam Type: Hydraulic Roller
        • .533 Intake/.544 Exhaust Lift
        • 215 Intake/220 Exhaust Duration @ .050
        • Lobe Seperation (LSA) 114
        • Firing Order: 1-5-4-2-6-3-7-8
      • Ignition Timing:
        • 10-16 Degrees Initial, 32-34 Total
      • Also Includes:
        • Dual/Rear Sump Oil Pan
        • Holley Street Warrior 600cfm Vacuum Secondary Carburetor w/Electric Choke
        • Intake Manifold
        • Distributor
        • Standard Rotation Water Pump
        • Spark Plugs and Wires
        • Harmonic Balancer
        • Thermostat and Thermostat Housing
        • Valve Covers
        • Timing Cover

      Blueprint Engines BP302RCTCD Ford Small Block Compatible 302 ci. Long Block Notes:

      • Engine timing cover is designed for standard rotation water pump and pulley kit ONLY
      • Excellent cruiser and daily driver engine
      • Makes up to 16 inches of vacuum, and is designed to work excellent with power brakes, stock torque converter, stock gearing
      • Runs on 87 octane fuel

    Emissions Note:

    This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.

    CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART

  • Part TypeCrate Engine
    BrandBLUEPRINT ENGINES
    Package Height30.0
    Package Width38.0
    Package Length38.0
    Weight480.0 PG
    Part CategoryPerformance Parts
    Engine TypeHigh-Performance Crate Engine
    Cylinder Head MaterialAluminum
    Engine Block MaterialCast Iron
    Dyno TestedYes
    Fuel DeliveryCarburetor
    Engine Assembly StyleDeluxe Dressed
    Part FitmentSemi Universal
    Engine Displacement302 ci.
    Engine Make/SizeFord Small Block
    Camshaft StyleHydraulic Roller
    Vendor Part NumberBP302RCTCD
    Package Qty1
    Package TypeEA
