Made in USA
Ford Small Block 306ci Short Block
InfoVehicle Info Needed
BLUEPRINT ENGINESPART NUMBER: 138-BP3060SP

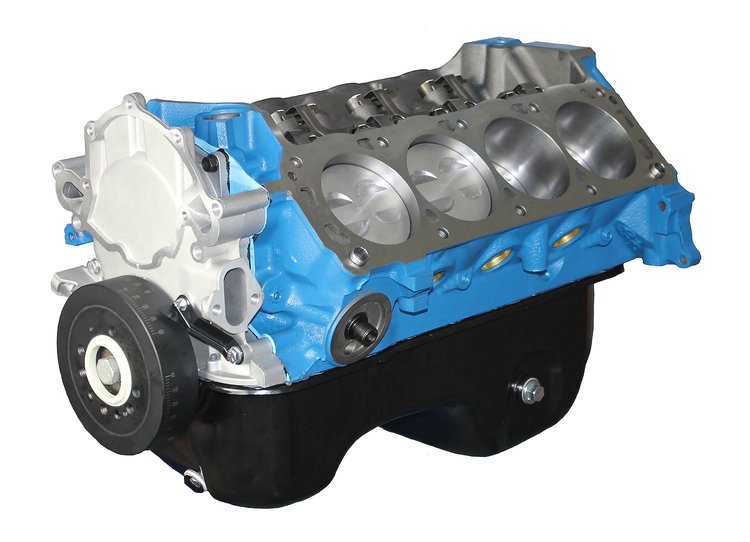

Ford Small Block 306ci Short Block

$4,71900
Truck Freight
ShippingShips on Sep 15, 2026
Lowest PriceLowest Price Guarantee

Short Block
    Small Block Ford 306ci Short Block Plus
  • Includes Rotating Assembly, Camshaft, Timing Chain & Cover
  • 50 oz. External Balance

    Short Block Plus Includes:
  • Seasoned 302ci Block (+.030')
  • 2-Bolt Main
  • 1-Piece Rear Main Seal
  • 3.000" Stroke Cast Steel Crank
  • 5.155" Connecting Rods
  • Hypereutectic Pistons
  • Hastings Moly Piston Rings
  • Cloyes Double Roller Timing Chain
  • Hydraulic Roller Cam (Blueprint recommends a steel distributor gear)
  • Duration @ .050' Lift: 218° Intake / 226° Exhaust
  • Lift: .543' Intake / .554' Exhaust
  • Lobe Separation: 112°
  • Camshaft is degreed to ensure maximum horsepower
  • New Timing Cover

    Engine Break-In Procedure

    Use or break-in oil or conventional (non-synthetic) multi-viscosity oil with zinc additive for the first 500 miles of operation. Avoid hard acceleration for sustained periods. Periodically change the engine speed while driving to help seat the rings. While the engine is running, be sure to check oil pressure and coolant temperature, and check for fluid leaks, such as oil, transmission fluid, fuel, and coolant/antifreeze. Also listen for any unusual sounds. Should you hear an unusual sound, shut the engine off, check for the source, and correct it.

    Engines with flat tappet cams only - Start the engine and bring it to 2,000 RPM. Get the engine running smoothly. Then vary the engine speed from 1,800-2,200 RPM in a slow acceleration/deceleration cycle for 30 minutes. This is necessary to provide adequate oil splash and lifter rotation to properly mate each lifter to its lobe.

    At 500 Miles change the engine oil and filter using conventional (non-synthetic) oil. After 6,000 miles, synthetic oils can be used in your engine.  For flat tappet cam engines, continued use of oil with zinc or a zinc additive for the life of your engine is recommended.

Part TypeShort Block
BrandBLUEPRINT ENGINES
Package Height24.0
Package Width26.0
Package Length30.0
Weight291.0 PG
Part CategoryPerformance Parts
Deck Height8.2 in (208.28 mm)
Package Qty1
Package TypeEA
