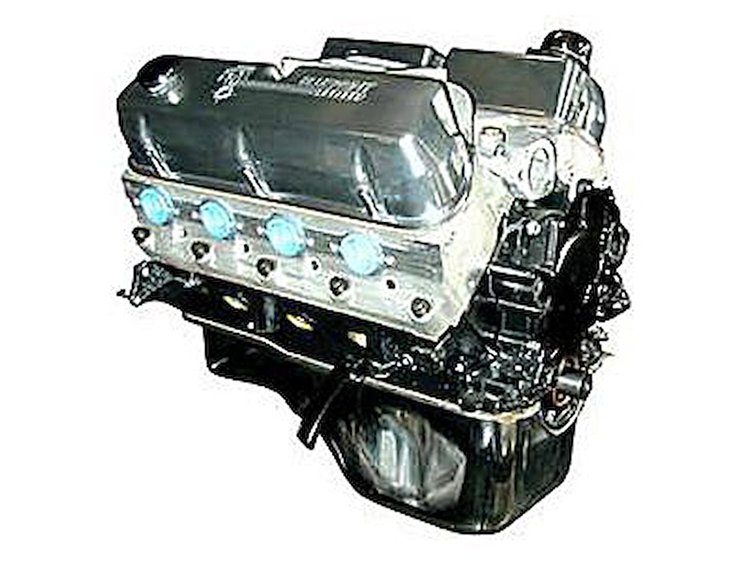

SB-Ford 347ci Base Engine 370HP/390TQ

Name: SB-Ford 347ci Base Engine 370HP/390TQ
Brand: BLUEPRINT ENGINES
SKU: 138-BP3470CT
Price: 6653.99 USD
Availability: OutOfStock

Currently Unavailable

This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

Base Engine

370HP/390TQ

30 month/50,000 mile warranty

Available as a

Base engine - Basic Blueprint engine with intake manifold and valve covers
Dress engine - Complete engine including induction, ignition, fuel pump and other accessories
Block:
Seasoned block bored .040'' over
Square and parallel decked
Align honed main bearing bore
Cylinders are sonic tested for thickness
Cylinders honed on a computer controlled machine to within .0002'' straightness and roundness
Rotating Assembly:
SCAT 3.4'' stroke cast iron crankshaft (28.4oz external balance)
SCAT 5.4'' rods with 150,000psi bolts
Keith Black hypereutectic pistons
Hastings Moly rings
Clevite bearings
Balanced rotating assembly
Melling high volume oil pump
Heavy duty double roller timing set
Cylinder Heads:
Dart aluminum heads
Hardened retainers and 1.437'' diameter valve springs
2.02'' swirl polished intake valves
1.60'' swirl polished exhaust valves
Hardened pushrods
Camshaft Specs:
Hydraulic Flat Tappet
Duration @ .050'' Lift: 218 Intake / 224 Exhaust
Lift: .493'' Intake / .500'' Exhaust
Lobe Separation: 110°
Other Features:
Professional Products dual-plane satin aluminum intake
Signature Series aluminum valve covers
New 5-quart oil pan
Brass freeze plugs
9.5:1 compression
Dress Model Adds:
Edelbrock 600cfm carburetor
Edelbrock water pump
Edelbrock fuel pump
MSD Distributor
MSD Coil
MSD spark plug wires
Professional Products balancer
Braided fuel line
Horsepower: 370
Torque: 390
