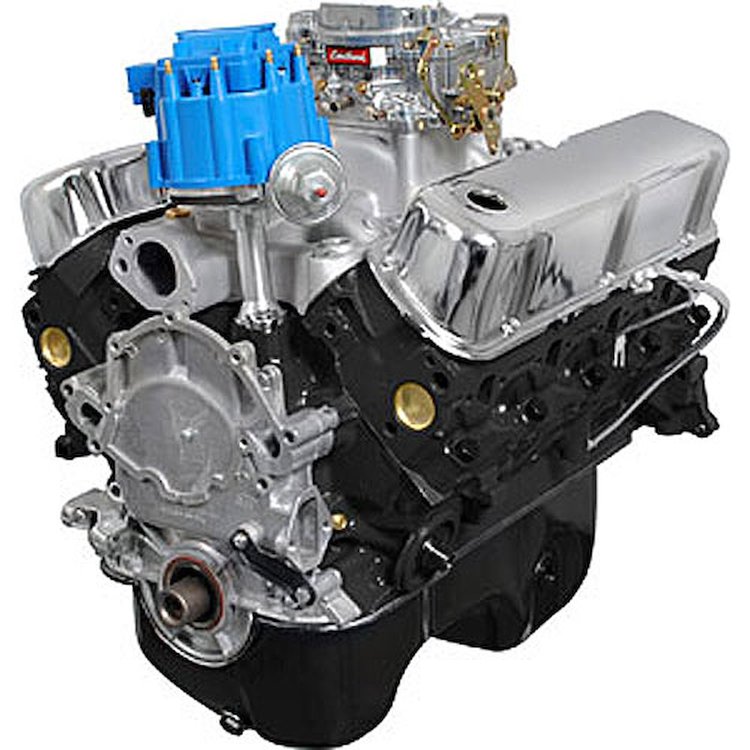

Small Block Ford 347ci Stroker Dress Engine 330HP/380TQ
Product Discontinued
BLUEPRINT ENGINESPART NUMBER: 138-BP3472CTCS

Small Block Ford 347ci Stroker Dress Engine 330HP/380TQ

Currently Unavailable

This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

Dress Engine
    Small Block Ford 347ci Stroker Dress Engine
  • 330HP/380TQ
  • 2-Bolt Main
  • 9.6:1 Compression Ratio

    Includes:
  • valve covers
  • timing cover
  • oil pan
  • Intake Manifold
  • 600 cfm carb
  • HEI distributor

    Balanced, blueprinted and dyno tested. 30 month / 50,000 mile warranty

    Engine Break-In Procedure

    Use or break-in oil or conventional (non-synthetic) multi-viscosity oil with zinc additive for the first 500 miles of operation. Avoid hard acceleration for sustained periods. Periodically change the engine speed while driving to help seat the rings. While the engine is running, be sure to check oil pressure and coolant temperature, and check for fluid leaks, such as oil, transmission fluid, fuel, and coolant/antifreeze. Also listen for any unusual sounds. Should you hear an unusual sound, shut the engine off, check for the source, and correct it.

    Engines with flat tappet cams only - Start the engine and bring it to 2,000 RPM. Get the engine running smoothly. Then vary the engine speed from 1,800-2,200 RPM in a slow acceleration/deceleration cycle for 30 minutes. This is necessary to provide adequate oil splash and lifter rotation to properly mate each lifter to its lobe.

    At 500 Miles change the engine oil and filter using conventional (non-synthetic) oil. After 6,000 miles, synthetic oils can be used in your engine.  For flat tappet cam engines, continued use of oil with zinc or a zinc additive for the life of your engine is recommended.

Part TypeEngine
BrandBLUEPRINT ENGINES
Package Height28.0
Package Width30.0
Package Length30.0
Weight450.0 PG
Part CategoryPerformance Parts
Wiring Harness IncludedNo
Spark Plug Wires IncludedNo
Air Cleaner IncludedNo
Carburetor IncludedYes
Carb Eo NumberN/A
Water Pump IncludedNo
EmissionNot Legal
Flexplate IncludedNo
Engine Balance (Oz.)External, 28 imbalance
AssembledYes
Engine Assembly StyleLong block
Intake Manifold IncludedYes
Engine Make/SizeFord Small Block
Flywheel IncludedNo
Rear Main Seal Style1-piece
Valve Covers IncludedYes
Horsepower330
Distributor IncludedYes
Camshaft StyleHydraulic roller tappet
Cylinder Heads IncludedYes
Computer IncludedNo
Throttle Body IncludedNo
Harmonic Balancer IncludedNo
QuantitySold individually
Fuel DeliveryOne Carb
Rpm Power Range1800-5800
Engine BalanceExternal, 28oz, Imbalance
Compression Ratio9.5:1
Oil Pan IncludedYes
Timing Cover IncludedYes
Spark Plugs IncludedNo
Vendor Part NumberBP3472CTCS
Package Qty1
Package TypeEA
