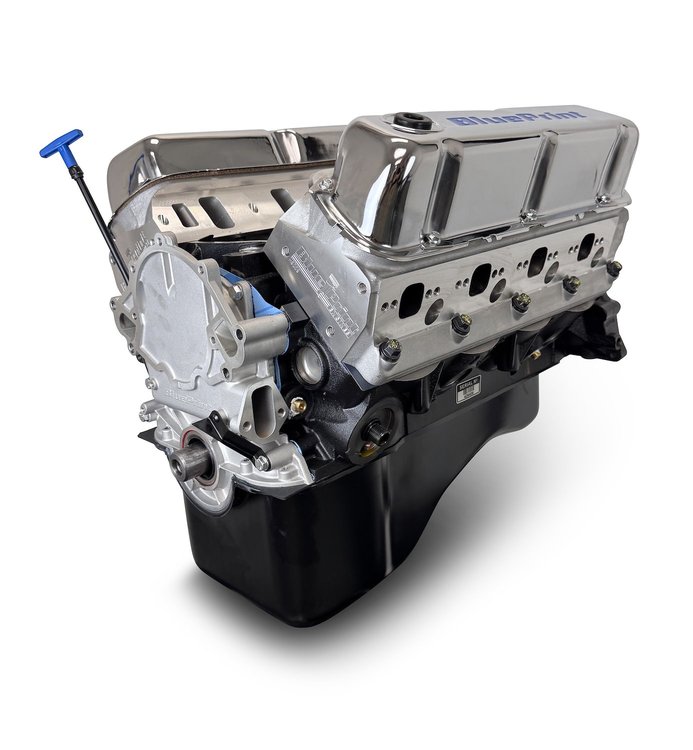

Blueprint Engines BP3479CT Ford Small Block Compatible 347 ci. Long Block:

• Block:
  • BluePrint Engines High-Strength Cast Iron Block
  • Increased Deck Thickness and Strength Webbing
  • Priority Main Oiling
  • Improved Water Jacket Design
  • 4-Bolt Main
  • 4 in. Bore
  • 1-Piece Rear Main Seal
• Rotating Assembly:
  • Steel Crank Balanced by BluePrint Engines
  • 3.400 in. Stroke
  • Forged 5.400 in. Connecting Rods
  • Forged Pistons
  • 28 oz Externally balanced Front and Rear
• Cylinder Heads:
  • BluePrint Aluminum Cylinder Heads HP9008
  • Compression Ratio: 10:1
  • 60 cc Chambers
  • 2.02 in. Intake/1.60 in. Exhaust Valves
  • 190 cc Intake/60 cc Exhaust Runners
• Cam Specs:
  • Cam Type: Hydraulic Roller
  • .543 Intake/.554 Exhaust Lift
  • 218 Intake/226 Exhaust Duration @ .050
  • Lobe Seperation (LSA) 112
  • Firing Order: 1-5-4-2-6-3-7-8
• Ignition Timing:
  • 10-16 Degrees Initial, 32-34 Total
• Also Includes:
  • Front Sump Oil Pan
  • Valve Covers
  • Timing Cover

Blueprint Engines BP3479CT Ford Small Block Compatible 347 ci. Long Block Notes:

• Engine timing cover is designed for standard rotation water pump and pulley kit ONLY

Emissions Note:

This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.

CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
