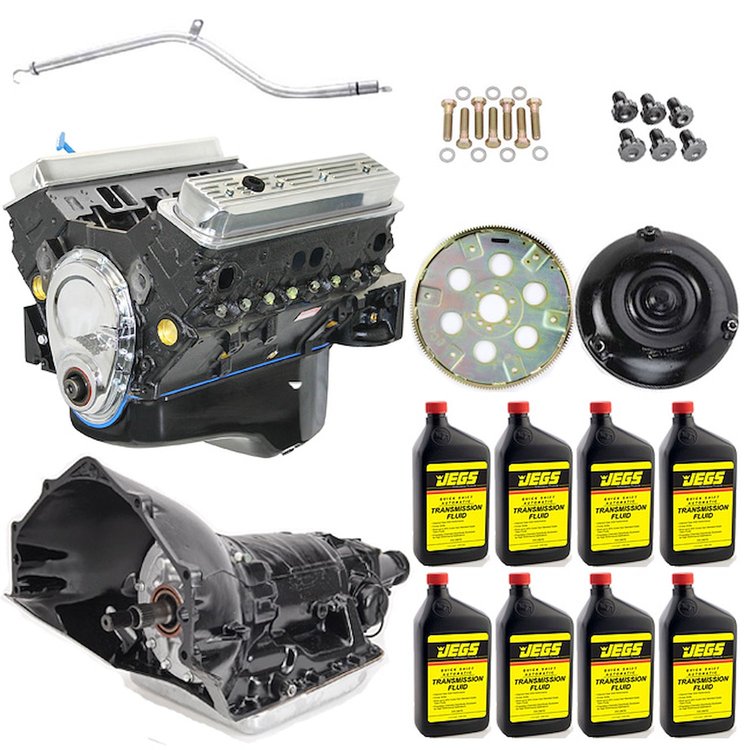

Kit Includes:

• Blueprint Engines Small Block Chevy 350ci Base Crate Engine with Vortec Cast Iron Heads - 138-BP3503CT1
• JEGS TH350 Performance Transmission with Short Tailshaft - 555-60300
• JEGS TH350 Torque Converter - 555-60402
• JEGS Heavy-Duty SFI Flexplate - 555-601074
• ARP High-Performance Series Flexplate Bolts - 070-100-2801
• JEGS Transmission-to-Block Bolt Set - 555-82510
• JEGS Quick Shift Automatic Transmission Fluid (8) - 555-28070
• RPC TH350 Transmission Dipstick - 707-R9421

Blueprint Engines are a great choice for drivable and reliable high-performance engines. All rotating assemblies are balanced within 2 grams on a computerized balancer. Blueprint Engines are dyno tested and include dyno sheets.
Best of all they feature a 30 month/50,000 mile warranty.

Recommended Stall Converter: 1800-2200 rpm
Recommended Fuel: 87 Octane

Block:

• Seasoned & Reconditioned Chevy 2-Bolt Main Block
• 1-Piece Rear Main Seal
• Square and Parallel Decked
• Align Honed Main Bearing Bore
• Cylinders are Sonic Tested for Thickness
• Cylinders Honed on a Computer-Controlled Machine to within .0002 in. Straightness and Roundness

Rotating Assembly:

• Chevy Cast Iron Crankshaft - 3.480 in. Stroke
• Chevy 5.700 in. Connecting Rods
• Hypereutectic Pistons
• 9.3:1 Compression Ratio
• Internal Front, External Rear Balanced (Late 350 Weighted Flexplate Recommended, Not Included)

Cylinder Heads:

• GM Vortec Cast Iron

Camshaft Specs:

• Hydraulic Roller Tappet
• Duration @ .050 in. Lift: 221 Intake / 226 Exhaust
• Lift: .495 in. Intake / .502 in. Exhaust
• Lobe Separation: 110-degrees
• Camshaft is degreed to ensure maximum horsepower

Timing Specifications:

• Initial Timing: 14-degrees
• Total Timing: 34-degrees
• Firing Order: 1-8-4-3-6-5-7-2
• Spark Plugs: Champion 13 with a .045 in. Gap Recommended (Not Included)

Other Features:

• New chrome valve covers
• New chrome timing cover
• New oil pan
• Brass freeze plugs

Engine Break-In Procedure

Use or break-in oil or conventional (non-synthetic) multi-viscosity oil with zinc additive for the first 500 miles of operation. Avoid hard acceleration for sustained periods. Periodically change the engine speed while driving to help seat the rings. While the engine is running, be sure to check oil pressure and coolant temperature, and check for fluid leaks, such as oil, transmission fluid, fuel, and coolant/antifreeze. Also listen for any unusual sounds. Should you hear an unusual sound, shut the engine off, check for the source, and correct it.

Engines with flat tappet cams only - Start the engine and bring it to 2,000 RPM. Get the engine running smoothly. Then vary the engine speed from 1,800-2,200 RPM in a slow acceleration/deceleration cycle for 30 minutes. This is necessary to provide adequate oil splash and lifter rotation to properly mate each lifter to its lobe.

At 500 Miles change the engine oil and filter using conventional (non-synthetic) oil. After 6,000 miles, synthetic oils can be used in your engine.  For flat tappet cam engines, continued use of oil with zinc or a zinc additive for the life of your engine is recommended.
