Small Block Chevy 350ci Base Engine Install Kit

Name: Small Block Chevy 350ci Base Engine Install Kit
Brand: BLUEPRINT ENGINES
SKU: 138-BP3504CT1K4
Price: 122.90 USD
Availability: OutOfStock

Currently Unavailable

This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

Engine Install Kits

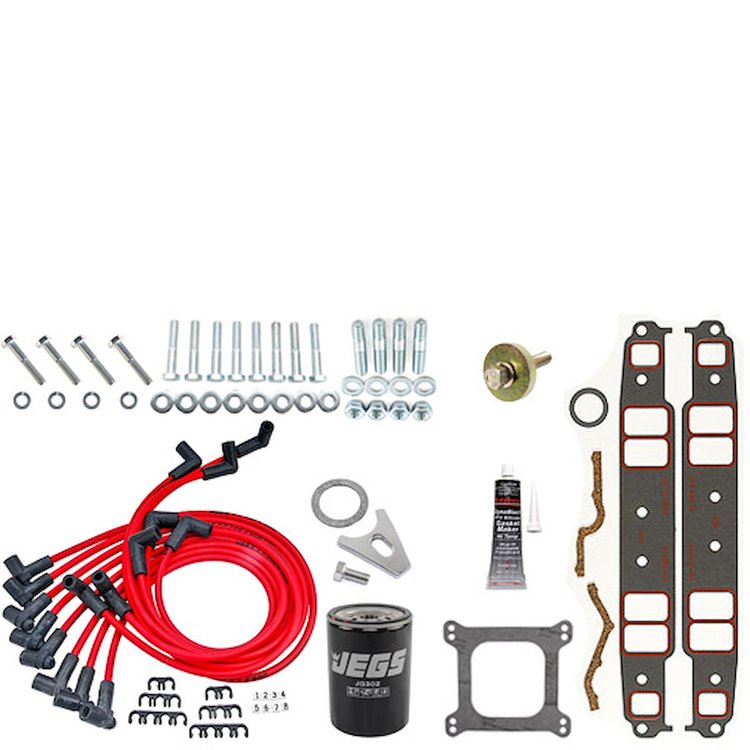

Includes:

Oil Filter
Spark Plug Wires
Balancer Bolt
Water Pump Bolts
Gasket Maker
Intake Gaskets
Distributor Hold Down
Carburetor Studs & Gasket
Intake Bolts

Kit Includes:
- JEGS Performance Oil Filter - 555-JG302
- JEGS 8.0mm Red Hot Pow'r Wires - 555-40210
- JEGS Balancer Bolt - 555-82800
- JEGS Long Water Pump Bolt Kit - 555-83901
- Dynatex DynaBlack RTV Silicone Gasket Maker - 555-28035
- JEGS Intake Manifold Gaskets - 555-210002
- JEGS Distributor Hold Down - 555-40691
- JEGS Carburetor Stud Kit - 555-15840
- JEGS Carburetor Base Gasket - 555-16100
- JEGS Intake Manifold Bolts - 555-83201

Blueprint Engines are a great choice for drivable and reliable high performance engines. All rotating assemblies are balanced within 2 grams on a computerized balancer. Blueprint Engines are dyno tested and include dyno sheets.
Best of all they feature a 30 month/50,000 mile warranty.

Recommended Stall Converter: 1800-2200 rpm
Recommended Fuel: 87 Octane

Block:

2-Bolt Main
1-Piece Rear Main Seal
Passenger Side Dipstick
Align Honed Main Bearing Bore
Cylinders Honed on Computer Controlled Machine to Within .0002" Straightness and Roundness
Cylinders are Sonic Tested for Thickness

Rotating Assembly:
Cast Steel Crank
3.480" Stroke
5.700" Rod Length
9.1:1 Compression Ratio
Hypereutectic Pistons
Hastings Piston Rings
Hydraulic Flat Tappet Camshaft
Internal Front, External Rear Balanced (Late 350 Weighted Flexplate Recommended, Not Included)

Cylinder Heads:
GM Early Cast Iron Cylinder Heads (pre-87)
64cc Combustion Chamber
Hardened Retainers and Springs
2.02" Swirl Polished Intake Valves
1.60" Swirl Polished Exhaust Valves

Camshaft Specs:
Hydraulic Flat Tappet
Lift: .480'' Intake / .486'' Exhaust
Duration @ .050'' Lift: 224° Intake / 230° Exhaust
110° Lobe Separation
1.5 Rocker Arms

Timing Specifications:
Initial Timing: 14°
Total Timing: 34°
Firing Order: 1-8-4-3-6-5-7-2
Spark Plugs: AC Delco 41-993 with a .045" Gap Recommended (Not Included)

Other Features:
New chrome valve covers
New chrome timing cover
New oil pan
Brass freeze plugs

Dress Model Adds:
Blueprint Dual Plane Aluminum Intake Manifold, Satin Finish
Blueprint HEI Distributor & Coil
Standard Rotation Water Pump
Harmonic Balancer

JEGS Easy Kits are designed by JEGS high performance racing professionals to help you get all the performance parts you need for your race car, hot rod or truck.
