• Base Dressed Engine w/390 HP/410 ft.lbs. TQ
• Black Pulley Kit
• Damper
• Spark Plugs/Wires
• Water Pump
• Water Neck w/Thermostat
• Fuel Pump
• Intake
• HEI Distributor

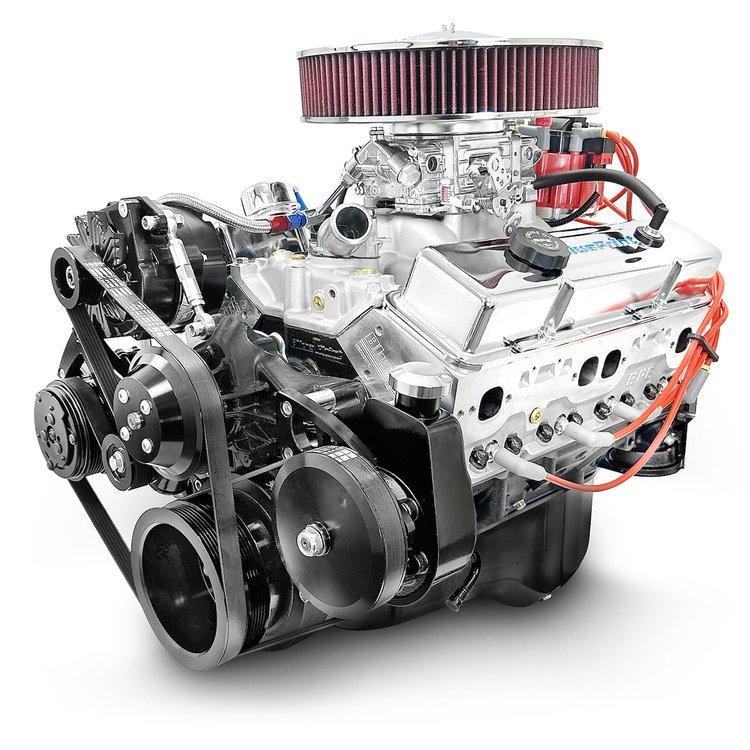

  Blueprint Engines BP3505CTCK 350 ci. Deluxe Dressed Carbureted Engine [390 HP]:

  • Block:
    • NEW BluePrint Cast Iron Block
    • 4-Bolt Main
    • 4 in. Bore
    • 1-Piece Rear Main Seal
    • Mechanical Fuel Pump Provision
    • Right/Passenger Side Dipstick
    • Drilled and Tapped for Clutch Linkage
  • Rotating Assembly:
    • Cast Crankshaft
    • 3.480 in. Stroke
    • Forged 5.700 in. Connecting Rods
    • Hypereutectic Pistons
    • Internally Balanced Front/Externally Balanced Rear
  • Cylinder Heads:
    • BluePrint Aluminum Cylinder Heads H8002K
    • Compression Ratio: 9.2:1
    • 64 cc Chambers
    • 2.02 in. Intake/1.60 in. Exhaust Valves
    • 195 cc Intake/75 cc Exhaust Runners
  • Cam Specs:
    • Cam Type: Hydraulic Roller
    • .495 Intake/.502 Exhaust Lift
    • 220 Intake/224 Exhaust Duration @ .050
    • Lobe Seperation (LSA) 114
  • Ignition Timing:
    • 32 Degrees Total at 3500 RPM
  • Also Includes:
    • Black Front Accessory Drive with Water Pump, A/C Compressor, Alternator, and Power Steering Pump
    • Holley Brawler 670cfm Vacuum Secondary Carburetor w/Electric Choke
    • Valve Covers
    • Rear Sump Oil Pan
    • Timing Cover
    • Aluminum Intake
    • HEI Distributor
    • Harmonic Balancer
    • Spark Plugs & Wires
    • Standard Rotation Long Style Water Pump
    • Water Neck w/Thermostat
    • Fuel Pump

  Blueprint Engines BP3505CTCK 350 ci. Deluxe Dressed Carbureted Engine [390 HP] Notes:

  • Front accessory drive on this engine fits many vehicles, however it is the customer responsibility to accurately measure and confirm fitment
  • Accessory drive is a low-profile design, but things such as power steering hoses, alternator wiring, and additional fittings/fabrication may be required on some vehicles
  • Front Accessory Drive Does not fit Corvette
  • The performance aluminum cylinder heads on this engine feature a .500 in. raised port vs OEM

Emissions Note:

This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.

CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
