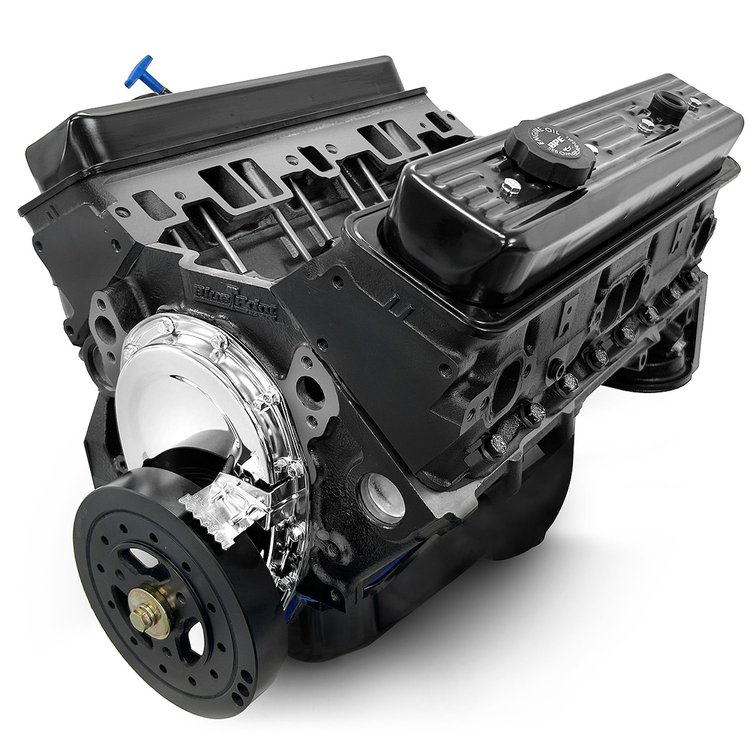

Blueprint Engines BP350TBICT GM, Chevy Small Block 350 ci. (5.7L) TBI Engine:

• Block:
  • NEW BluePrint Cast Iron Block
  • 4-Bolt Main
  • 4 in. Bore
  • 1-Piece Rear Main Seal
  • Mechanical Fuel Pump Provision
  • Right/Passenger Side Dipstick
  • Drilled and Tapped for Clutch Linkage
• Rotating Assembly:
  • Steel Crankshaft
  • 3.480 in. Stroke
  • Forged 5.700 in. Connecting Rods
  • Hypereutectic Pistons
  • Internally Balanced Front/Externally Balanced Rear
• Cylinder Heads:
  • 1987-1995 GM Iron Cylinder Heads
  • 64 cc Chamber
  • 1.94 in. Intake/1.50 in. Exhaust Valves
• Cam Specs:
  • Cam Type: Hydraulic Roller
  • .447 Intake/.459 Exhaust Lift
  • 201 Intake/208 Exhaust Duration @ .050
  • Lobe Separation (LSA) 117
• Ignition Timing:
  • Controlled by OEM Computer
• Also Includes:
  • Valve Covers
  • Rear Sump Oil Pan
  • Timing Cover
  • Harmonic Balancer

Blueprint Engines BP350TBICT GM, Chevy Small Block 350 ci. (5.7L) TBI Engine Notes:

• Not for use in pollution-controlled vehicles
• Tested in a factory equipped 1987-1995 OEM 5.7 truck with factory torque converter, fueling system, and ECU, while using 87 octane fuel
• Engine Designed specifically to install in OEM 1987-1995 TBI trucks without any tuning or fuel system upgrades required
• Recommended spark plugs are AC Delco CR43TS with .035 in. gap
• Designed as increased horsepower, factory style long block
• Customer to re-use existing intake manifold, ecu, and fuel system from 1987-1995 350 truck engine
• Excellent upgrade gaining Roller cam, 4 bolt main, and horsepower, otherwise retaining OEM components, such as torque converter and exhaust

Emissions Note:

This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.

CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
