Product Discontinued
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.
Dress Engine

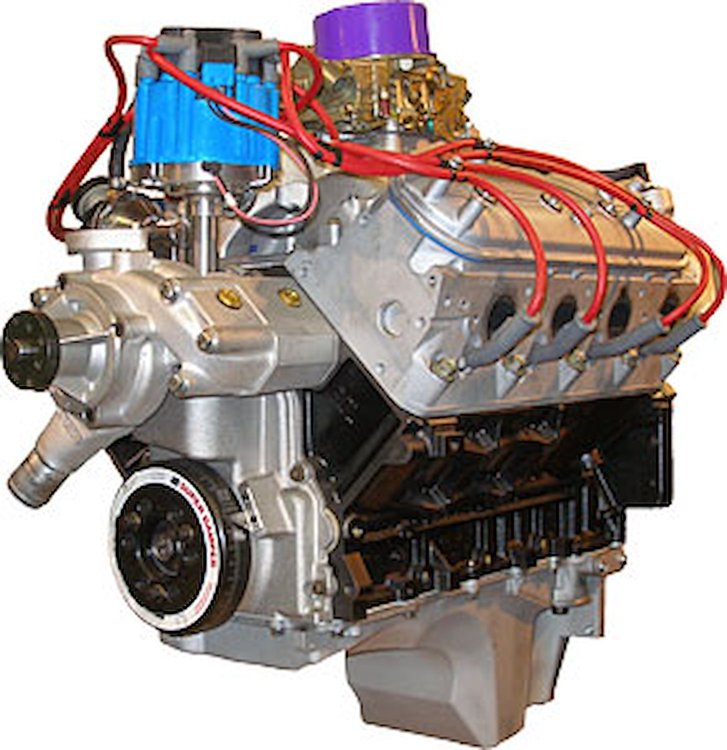

- GM LS Series Carbureted Dress Engine
- 440HP/415TQ
- Blueprint Engines are a great choice for drivable and reliable high performance engines. All rotating assemblies are balanced within 2 grams on a computerized balancer. Blueprint Engines are dyno tested and include dyno sheets. Best of all they feature a 30 month/50,000 mile warranty.
- Base engine assembly - Basic engine with intake manifold and valve covers
- Dress engine asembly - Complete engine including induction, distributor, water pump and other accessories
Block:
- 6.0L Seasoned cast iron, 6 cross bolt main
- Square and parallel decked
- Align honed main bearing bore
- Cylinders are sonic tested for thickness
- Cylinders honed on a computer controlled machine to within .0002'' straightness and roundness
Rotating Assembly:
- Blueprint premium cast iron crankshaft
- GM powdered metal rods with 150,000 psi bolts
- Forged pistons
- Balanced rotating assembly
- Melling high volume oil pump
Cylinder Heads:
- aluminum heads
- 70cc Chambers
Camshaft Specs:
- Hydraulic Roller
- Duration @ .050'' Lift: 223 Intake / 223 Exhaust
- Lift: .566'' Intake / .566'' Exhaust
- Lobe Separation: 114°
Other Features:
- GMPP timing cover
- Oil pan and valve covers
- Edelbrock aluminum dual plane satin intake manifold
- 10.3:1 compression
Dress Model Adds:
- Harmonic balancer
- Holley carburetor
- Water Pump
- Spark Plugs & Wires
- DUI Distributor
Horsepower: 440
Torque: 415
Recommended Stall Converter: 2000-2400 rpm
Available as a
Product LineBlueprint Engines GM LS Series Carbureted Engines 6.0L/ 440HP/ 415TQ
BrandBLUEPRINT ENGINES
Package Height36.5
Package Width42.0
Package Length46.0
Weight560.0 PG
Part CategoryPerformance Parts
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
