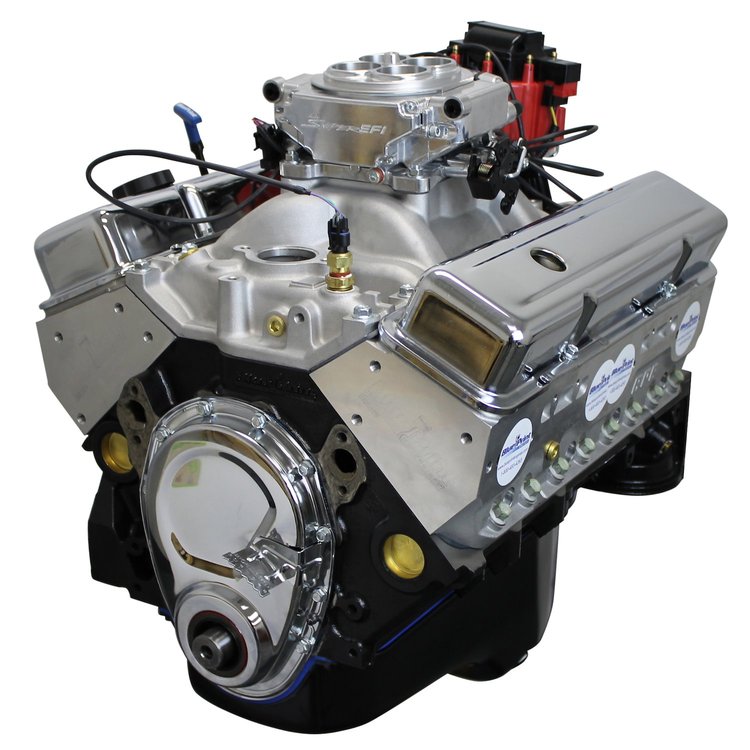

Small Block Chevy 383ci Dress Engine 430HP/450TQ
Product Discontinued
BLUEPRINT ENGINESPART NUMBER: 138-BP38313CTF1

Small Block Chevy 383ci Dress Engine 430HP/450TQ

Currently Unavailable

This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

Dress Engine With Fuel Injection
    Small Block Chevy 383ci Dress Engine
  • 430HP / 450TQ
  • 1-Piece Rear Main Seal
  • Holley Sniper EFI System

    Engine Break-In Procedure

    Use or break-in oil or conventional (non-synthetic) multi-viscosity oil with zinc additive for the first 500 miles of operation. Avoid hard acceleration for sustained periods. Periodically change the engine speed while driving to help seat the rings. While the engine is running, be sure to check oil pressure and coolant temperature, and check for fluid leaks, such as oil, transmission fluid, fuel, and coolant/antifreeze. Also listen for any unusual sounds. Should you hear an unusual sound, shut the engine off, check for the source, and correct it.

    Engines with flat tappet cams only - Start the engine and bring it to 2,000 RPM. Get the engine running smoothly. Then vary the engine speed from 1,800-2,200 RPM in a slow acceleration/deceleration cycle for 30 minutes. This is necessary to provide adequate oil splash and lifter rotation to properly mate each lifter to its lobe.

    At 500 Miles change the engine oil and filter using conventional (non-synthetic) oil. After 6,000 miles, synthetic oils can be used in your engine.  For flat tappet cam engines, continued use of oil with zinc or a zinc additive for the life of your engine is recommended.

Part TypeEngine
BrandBLUEPRINT ENGINES
Package Height27.0
Package Width30.5
Package Length38.5
Weight485.0 PG
Part CategoryPerformance Parts
Wiring Harness IncludedYes
Spark Plug Wires IncludedNo
Cylinder Head MaterialAluminum
Air Cleaner IncludedNo
Carburetor IncludedNo
Carb Eo NumberN/A
Water Pump IncludedNo
EmissionNot Legal
Flexplate IncludedNo
AssembledYes
Engine Assembly StyleLong block
Intake Manifold IncludedYes
Engine Make/SizeChevy Small Block
Flywheel IncludedNo
Rear Main Seal Style1-piece
Valve Covers IncludedYes
Horsepower430
Distributor IncludedYes
Camshaft StyleHydraulic roller tappet
Cylinder Heads IncludedYes
Computer IncludedYes
Throttle Body IncludedYes
Harmonic Balancer IncludedNo
QuantitySold individually
Fuel DeliveryOne Carb
Rpm Power Range1800-5800
Engine BalanceExternal
Compression Ratio10.0:1
Oil Pan IncludedYes
Part FitmentSemi Universal
Timing Cover IncludedYes
Spark Plugs IncludedNo
Vendor Part NumberBP38313CTF1
Package Qty1
Package TypeEA
