Small Block Chevy 383 Power Adder Base Engine Install Kit

Name: Small Block Chevy 383 Power Adder Base Engine Install Kit
Brand: BLUEPRINT ENGINES
SKU: 138-BP38316CT1K
Price: 122.90 USD
Availability: OutOfStock

Currently Unavailable

This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

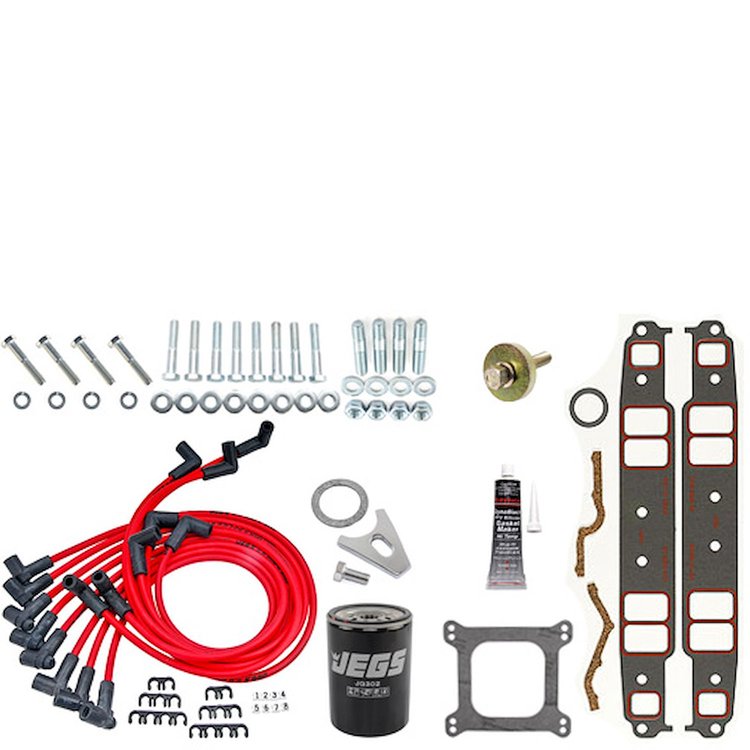

Engine Install Kit

Includes:

Oil Filter
Spark Plug Wires
Balancer Bolt
Water Pump Bolts
Gasket Maker
Intake Gaskets
Distributor Hold Down
Carburetor Studs & Gasket
Intake Bolts

Kit Includes:
- JEGS Performance Oil Filter - 555-JG302
- JEGS 8.0mm Red Hot Pow'r Wires - 555-40210
- JEGS Balancer Bolt - 555-82800
- JEGS Long Water Pump Bolt Kit - 555-83901
- Dynatex DynaBlack RTV Silicone Gasket Maker - 555-28035
- JEGS Intake Manifold Gaskets - 555-210002
- JEGS Distributor Hold Down - 555-40691
- JEGS Carburetor Stud Kit - 555-15840
- JEGS Carburetor Base Gasket - 555-16100
- JEGS Intake Manifold Bolts - 555-83201

Blueprint Small Block Chevy Engines are a great choice for drivable and reliable high performance engines. This Power Adder Series Engine is Suitable for Supercharger, Turbo Charger or Nitrous. Good up to 600 hp. All rotating assemblies are balanced within 2 grams on a computerized balancer. Blueprint Engines are dyno tested and include dyno sheets.
Best of all they feature a 30 month/50,000 mile warranty.

Recommended Fuel: 91 Octane

Block:

4-bolt main block
1-Piece rear main seal
Align honed main bearing bore
Cylinders are sonic tested for thickness
Cylinders honed on a computer controlled machine to within .0002'' straightness and roundness

Rotating Assembly:
Forged steel crankshaft & Rods
Forged pistons
Hastings Moly rings
Clevite bearings
Externally balanced rotating assembly
Melling high volume oil pump
Heavy duty double roller timing set

Cylinder Heads:
BluePrint Aluminum heads w/ 64cc chamber
Hardened retainers and 1.25'' diameter valve springs
2.02'' swirl polished intake valves
1.60'' swirl polished exhaust valves

Camshaft Specs:
Hydraulic Roller
Duration @ .050'' Lift: 224 Intake / 236 Exhaust
Lift: .536'' Intake / .555'' Exhaust
Lobe Separation: 113°

Other Features:
Chrome valve covers
Chrome timing cover
New 5-quart oil pan
Brass freeze plugs
8.5:1 compression

Horsepower: 440*
Torque: 445*
(*Enigne was designed for use with a Power Adder such as supercharger, turbo, nitrous. The HP and Torque numbers came from dyno testing normally aspirated with a 750cfm carb.)

Note: Your BluePrint engine was dyno tested with the parts and specifications listed below. If you prefer to install a different part, your engine may not produce the horsepower recorded on your dyno sheet.
Part Number: BP38316CT1
Fuel Delivery Type: Carbureted
Spark Plug: AC Delco 41-629
Spark Plug Gap: .045"
Harmonic Balancer: Non Weighted - 8" diameter
Flexplate/Flywheel: Late 350 Weighted
Intake Manifold: N/A - 1986-EARLIER BOLT PATTERN
Fuel Recommendation: 91 Octane
Timing (Initial/Total Advance): Initial timing - 10-16° and Total timing 32-34°
Firing Order: 1-8-4-3-6-5-7-2
