• Base Dressed Engine w/436 HP/443 ft.lbs. TQ
• Damper
• Spark Plugs/Wires
• Water Pump
• Water Neck w/Thermostat
• Fuel Pump
• Intake
• HEI Distributor
• Air Cleaner

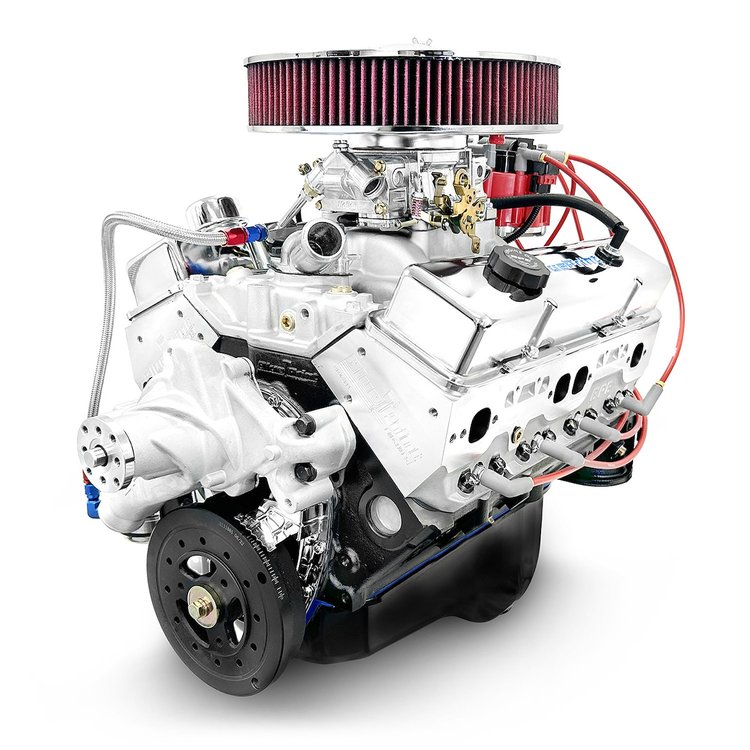

  Blueprint Engines BP38318CTC1D Small Block Chevy 383 ci. Deluxe Dressed Engine [436 HP]:

  • Block:
    • NEW BluePrint Cast Iron Block
    • 4-Bolt Main
    • 4 in. Bore
    • 1-Piece Rear Main Seal
    • Mechanical Fuel Pump Provision
    • Right/Passenger Side Dipstick
    • Drilled and Tapped for Clutch Linkage
  • Rotating Assembly:
    • Cast Steel Crankshaft
    • 3.750 in. Stroke
    • Forged 5.700 in. Connecting Rods w/150000 psi Bolts
    • Hypereutectic Pistons
    • Externally Balanced Front & Rear
  • Cylinder Heads:
    • BluePrint Aluminum Cylinder Heads H8002K
    • Compression Ratio: 10:1
    • 64 cc Chambers
    • 2.02 in. Intake/1.60 in. Exhaust Valves
    • 195 cc Intake/75 cc Exhaust Runners
  • Cam Specs:
    • Cam Type: Hydraulic Roller
    • .544 Intake/.555 Exhaust Lift
    • 230 Intake/236 Exhaust Duration @ .050
    • Lobe Seperation (LSA) 110
  • Ignition Timing:
    • Initial Timing 10-16 ° and Total timing 32-34°
  • Also Includes:
    • Holley Classic 750cfm Vacuum Secondary Carburetor w/Manual Choke
    • Dual Plane, Satin Aluminum Intake Manifold
    • Chrome Timing Cover
    • Distributor
    • Melling High Volume Oil Pump
    • Chrome Valve Covers
    • Painted Oil Pan
    • Right/Passenger Side Dipstick
    • Standard Rotation Long-Style Water Pump
    • Thermostat and Thermostat Housing
    • Harmonic Balancer
    • Spark Plugs
    • Spark Plug Wires
    • Mechanical Fuel Pump

  Blueprint Engines BP38318CTC1D Small Block Chevy 383 ci. Deluxe Dressed Engine [436 HP] Notes:

  • Intake Manifold height will not clear a stock Corvette hood
  • This engine features a true 4-inch bore, which mathematically yields 377 CID with a 3.75-inch stroke
  • Not for EGR
  • The performance aluminum cylinder heads on this engine feature a .500 in. raised port vs OEM

Emissions Note:

This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.

CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
