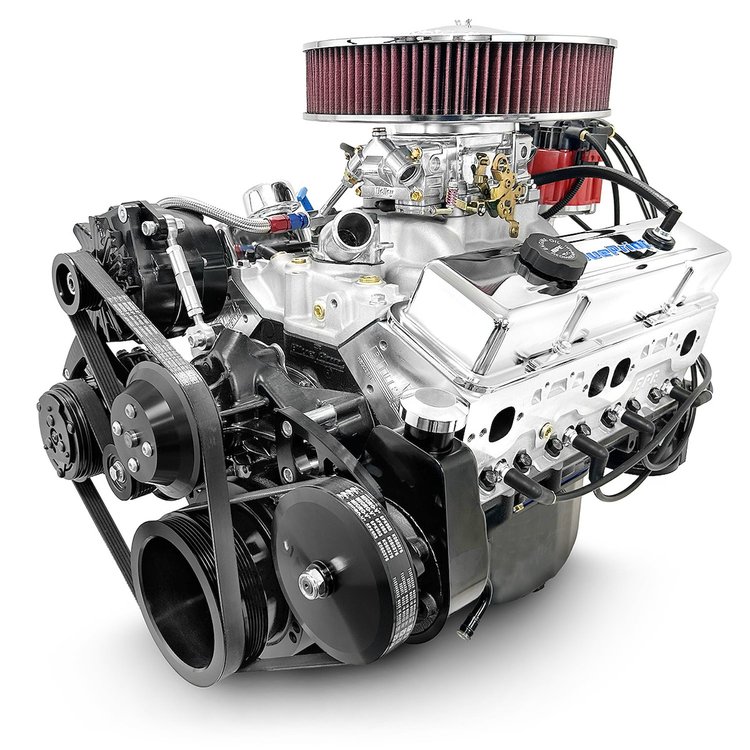

BP38318CTC1DK GM Compatible Small Block Chevy 383 ci. Deluxe Dressed Carbureted Crate Engine w/Black Pulley Kit [436 HP]
InfoVehicle Info Needed
BLUEPRINT ENGINESPART NUMBER: 138-BP38318CTCDK

BP38318CTC1DK GM Compatible Small Block Chevy 383 ci. Deluxe Dressed Carbureted Crate Engine w/Black Pulley Kit [436 HP]

$10,09900
Truck Freight
3 left in stock
ShippingShips Today
ShippingFree shippingLowest PriceLowest Price Guarantee

Items You Need

1-Ton Automotive Shop Crane [Boom Operating Range: 34 in. to 45 in.]

JEGS

1-Ton Automotive Shop Crane [Boom Operating Range: 34 in. to 45 in.]

Part Number : 555-81044K
$23698
Engine Load Leveler [1,000 lb.]

JEGS

Engine Load Leveler [1,000 lb.]

Part Number : 555-80048
$5999$65.99
You Save$6.00
Engine Lifting Chain 34"

JEGS

Engine Lifting Chain 34"

Part Number : 555-80049
$1399$15.99
You Save$2.00
Engine Sling [1000 lb. Capacity]

JEGS

Engine Sling [1000 lb. Capacity]

Part Number : 555-81378
$10299$113.99
You Save$11.00

Carbureted Engine
GM Small Block Chevy 383 ci. Deluxe Dressed Crate Engine
  • Includes:
    • Deluxe Dressed Engine w/436 HP/443 ft.lbs. TQ
    • Front Accessory Drive Kit
    • Power Steering
    • 7B10 Peanut-Style A/C Compressor
    • 1-Wire Alternator

      Blueprint Engines BP38318CTC1DK GM Compatible Small Block Chevy 383 ci. Deluxe Dressed Carbureted Crate Engine:

      • Block:
        • NEW BluePrint Cast Iron Block
        • 4-Bolt Main
        • 4 in. Bore
        • 1-Piece Rear Main Seal
        • Mechanical Fuel Pump Provision
        • Right/Passenger Side Dipstick
        • Drilled and Tapped for Clutch Linkage
      • Rotating Assembly:
        • Forged Steel Crankshaft
        • 3.750 in. Stroke
        • OEM Type 5.700 in. Connecting Rods w/150,000 PSI Bolts
        • Hypereutectic Pistons
        • Internal Front/ External Rear Engine Balance
      • Cylinder Heads:
        • BluePrint Aluminum Cylinder Heads H8002K
        • Compression Ratio: 10:1
        • 64 cc Chambers
        • 2.02 in. Intake/1.60 in. Exhaust Valves
        • 230 cc Intake/75 cc Exhaust Runners
      • Cam Specs:
        • Cam Type: Hydraulic Roller
        • .544 Intake/.555 Exhaust Lift
        • 230 Intake/236 Exhaust Duration @ .050
        • Lobe Seperation (LSA) 110
      • Ignition Timing:
        • 34 Degrees Total at 3500 RPM
      • Also Includes:
        • Front Accessory Drive with Power Steering, 7B10 Peanut style A/C compressor, 1-Wire Alternator
        • Holley 750 cfm Vacuum Secondary Carburetor w/Manual Choke
        • Intake Manifold Dual Plane, Satin Aluminum
        • Thermostat and Thermostat Housing
        • Distributor
        • Valve Covers
        • Harmonic Balancer
        • Spark Plugs and Wires
        • Fuel Pump
        • Oil Pan
        • Timing Cover
        • Long Style Water Pump

      Blueprint Engines BP38318CTC1DK GM Compatible Small Block Chevy 383 ci. Deluxe Dressed Carbureted Crate Engine Notes:

      • Front Accessory Drive does NOT fit Corvette
      • Front accessory drive on this engine fits many vehicles, however it is the customer responsibility to accurately measure and confirm fitment. Note this is a low-profile design, but things such as power steering hoses, alternator wiring, and additional fittings/fabrication may be required on some vehicles
      • Not for EGR
      • The performance aluminum cylinder heads on this engine feature a .500 in. raised port vs OEM

      Emissions Note:

      This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.

      CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART

  • Part TypeCrate Engine
    BrandBLUEPRINT ENGINES
    Package Height27.0
    Package Width30.0
    Package Length38.0
    Weight485.0 PG
    Part CategoryPerformance Parts
    Engine TypeHigh-Performance Crate Engine
    Cylinder Head MaterialAluminum
    Engine Block MaterialCast Iron
    Dyno TestedYes
    Fuel DeliveryCarburetor
    Engine Assembly StyleDeluxe Dressed
    Part FitmentSemi Universal
    Engine Displacement383 ci.
    Engine Make/SizeChevy Small Block
    Camshaft StyleHydraulic Roller
    Vendor Part NumberBP38318CTC1DK
    Package Qty1
    Package TypeEA
