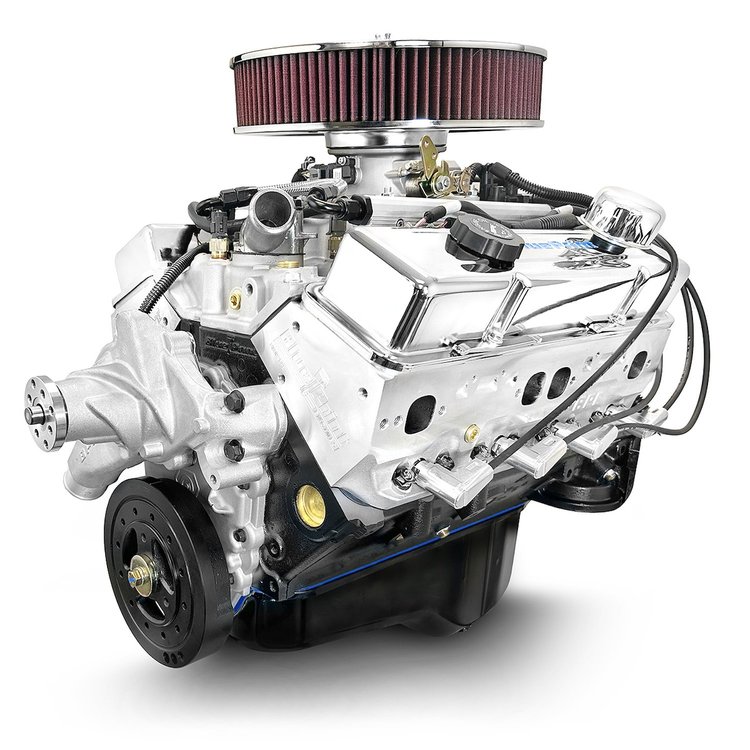

Blueprint Engines BP38318MPFID 383 ci. Crate Engine Specs:

• Block:
  • NEW Blueprint Cast Iron Block
  • 4-Bolt Main
  • 4 in. Bore
  • 1-Piece Rear Main Seal
  • Passenger Side Dipstick
  • Mechanical Fuel Pump Provision
  • Drilled and Tapped for Clutch Linkage
• Rotating Assembly:
  • New BluePrint Cast Steel Crankshaft
  • 3.750 in. Stroke
  • Hypereutectic Pistons
  • Forged 5.700 in. Connecting Rods
  • Internally Balanced Front-Externally Balanced Rear
• Cylinder Heads:
  • BluePrint Aluminum Cylinder Heads H8002K
  • 64 cc Chambers
  • 2.02 in. Intake/1.60 in. Exhaust Valves
• Cam Specs:
  • Hydraulic Roller
  • .544 Intake/.555 Exhaust Lift
  • 230 Intake/236 Exhaust Duration @ .050
  • 110 Degree Lobe Separation
• Ignition Timing:
  • Computer Controlled by Blueprint ECU

Blueprint Engines BP38318MPFID 383 ci. Crate Engine Also Includes:

• Multi-Port Fuel Injection w/Required Sensors, Harness
• Self-Learning Electronic Control Unit (ECU)
• Distributor
• Harmonic Balancer
• Single Plane Machined Aluminum Intake Manifold
• Oil Pan
• Timing Cover
• Polished Chrome Valve Covers
• Satin Aluminum Water Pump
• Polished Chrome Blueprint Air Cleaner
• Spark Plugs and Wires
• Thermostat w/Thermostat Housing

Blueprint Engines BP38318MPFID 383 ci. Crate Engine Note:

• Features a true 4 in. bore, which mathematically yields 377 ci. with a 3.75 in. stroke

Emissions Note:

This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.

CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
