Product Discontinued
BLUEPRINT ENGINESPART NUMBER: 138-BP3833CT1

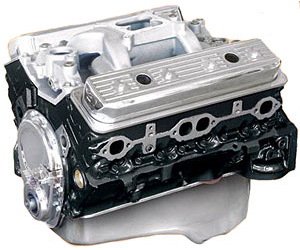

Small Block Chevy 383ci 420 HP Base Crate Engine, Vortec Cast Iron Heads
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.
Base Engine
Small Block Chevy 383ci Base Vortec Cast Iron Heads w/Roller Cam 420HP/ 440TQ
Blueprint Engines BP3833CT1 Features:
You can get most versions built up to the intake manifold. Our base units come complete with oil pans, valve covers and front timing covers. We'll let you finish the engine out with your fuel and ignition systems. Base models are balanced, blueprinted and dyno tested. If you have good ?top end? components, use them on a BluePrint base model. * Some exceptions apply - please see individual engine specs for details.Part TypeEngine
BrandBLUEPRINT ENGINES
Package Height27.0
Package Width30.0
Package Length32.0
Weight405.0 PG
Part CategoryPerformance Parts
Wiring Harness IncludedNo
Spark Plug Wires IncludedNo
Air Cleaner IncludedNo
Carburetor IncludedNo
Carb Eo NumberN/A
Water Pump IncludedNo
EmissionNot Legal
Flexplate IncludedNo
AssembledYes
Engine Assembly StyleLong block
Intake Manifold IncludedYes
Engine Make/SizeChevy Small Block
Flywheel IncludedNo
Rear Main Seal Style1-piece
Valve Covers IncludedYes
Horsepower420
Distributor IncludedNo
Camshaft StyleHydraulic roller tappet
Cylinder Heads IncludedYes
Computer IncludedNo
Throttle Body IncludedNo
Harmonic Balancer IncludedNo
QuantitySold individually
Fuel DeliveryOne Carb
Rpm Power Range1800-5800
Engine BalanceExternal
Compression Ratio9.5:1
Oil Pan IncludedYes
Timing Cover IncludedYes
Spark Plugs IncludedNo
Vendor Part NumberBP3833CT1
Package Qty1
Package TypeEA
