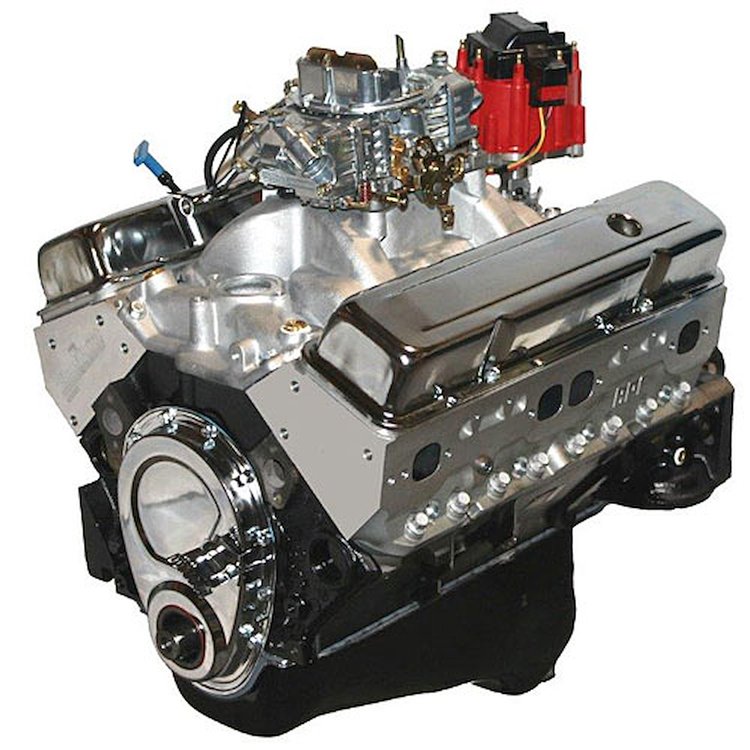

SBC 383ci Dress Engine 420HP/440TQ w/ Aluminum Heads

Name: SBC 383ci Dress Engine 420HP/440TQ w/ Aluminum Heads
Brand: BLUEPRINT ENGINES
SKU: 138-BP3834CTC1
Price: 4999.99 USD
Availability: OutOfStock

Currently Unavailable

This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

Dress Engine

Aluminum Intake manifold
Carburetor
Distributor
Hydraulic Roller Cam
420HP/440TQ

Engine Break-In Procedure
Use or break-in oil or conventional (non-synthetic) multi-viscosity oil with zinc additive for the first 500 miles of operation. Avoid hard acceleration for sustained periods. Periodically change the engine speed while driving to help seat the rings. While the engine is running, be sure to check oil pressure and coolant temperature, and check for fluid leaks, such as oil, transmission fluid, fuel, and coolant/antifreeze. Also listen for any unusual sounds. Should you hear an unusual sound, shut the engine off, check for the source, and correct it.
Engines with flat tappet cams only - Start the engine and bring it to 2,000 RPM. Get the engine running smoothly. Then vary the engine speed from 1,800-2,200 RPM in a slow acceleration/deceleration cycle for 30 minutes. This is necessary to provide adequate oil splash and lifter rotation to properly mate each lifter to its lobe.
At 500 Miles change the engine oil and filter using conventional (non-synthetic) oil. After 6,000 miles, synthetic oils can be used in your engine. For flat tappet cam engines, continued use of oil with zinc or a zinc additive for the life of your engine is recommended.

Blueprint Engines are a great choice for drivable and reliable high performance engines. All rotating assemblies are balanced within 2 grams on a computerized balancer. Blueprint Engines are dyno tested and include dyno sheets.
Best of all they feature a 30 month/50,000 mile warranty.

Recommended Stall Converter: 2000-2400 rpm
Recommended Fuel: 91 Octane

Block:

4-bolt main block
1-piece rear main seal
Square and parallel decked
Align honed main bearing bore
Cylinders are sonic tested for thickness
Cylinders honed on a computer controlled machine to within .0002'' straightness and roundness

Rotating Assembly:
Premium cast iron crankshaft (1 piece rear main seal)
Chevy heavy beam rods with 150,000 PSI bolts
Hypereutectic pistons; 10.0 to 1 Compression
Hastings Moly rings
Hydraulic flat tappet cam
Melling high volume oil pump
Heavy duty double roller timing set

Cylinder Heads:
Blueprint aluminum heads
Hardened retainers and valve springs
2.02'' swirl polished intake valves
1.60'' swirl polished exhaust valves

Camshaft Specs:
Hydraulic Roller
Duration @ .050'' Lift: 220 Intake / 224 Exhaust
Lift: .495'' Intake / .502'' Exhaust

Hydraulic Flat Tappet
Duration @ .050'' Lift: 229 Intake / 230 Exhaust
Lift: .480'' Intake / .486'' Exhaust

Other Features:
New short chrome valve covers
New chrome timing cover
New oil pan
Brass freeze plugs

Dress Model Adds:
Aluminum intake manifold
Holley 750cfm Manual Choke Carburetor
HEI distributor

Note: This engine will not work for applications requiring EGR.
Your BluePrint engine was dyno tested with the parts and specifications listed below. If you prefer to install a different part, your engine may not produce the horsepower recorded on your dyno sheet.
Part Number: BP3834CT1
Fuel Delivery Type: Carbureted , 750 cfm
Spark Plug: Champion 792
Spark Plug Gap: .032"
Harmonic Balancer: 400 ci weighted, 8" diameter
Flexplate/Flywheel: Late 350 Weighted
Stall Converter: 2000-2400 rpm
Intake Manifold: Dual plane
Fuel Recommendation: 91 Octane
Timing (Initial/Total Advance): Initial timing - 10-16° and Total timing 32-34°
Firing Order: 1-8-4-3-6-5-7-2
