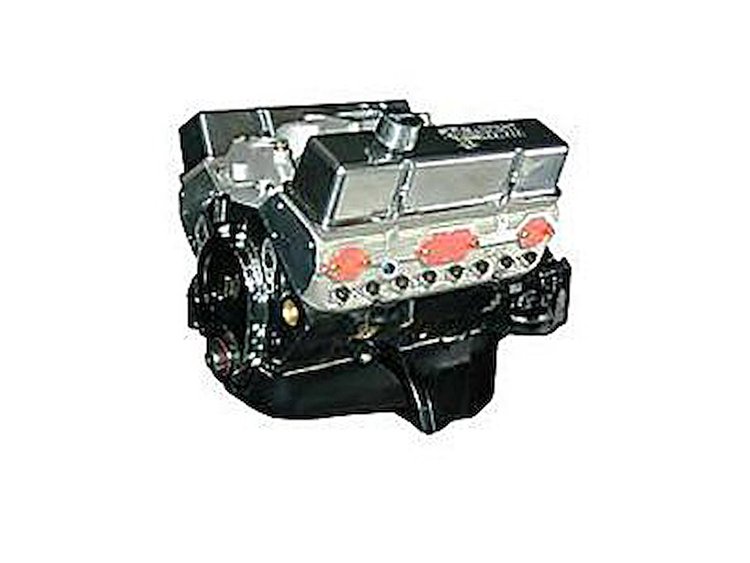

SB-Chevy 383ci Base Engine 395HP/440TQ

Name: SB-Chevy 383ci Base Engine 395HP/440TQ
Brand: BLUEPRINT ENGINES
SKU: 138-BP3836CT
Price: 6411.99 USD
Availability: OutOfStock

Currently Unavailable

This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

Base Engine

395HP/440TQ

30 month/50,000 mile warranty

Available as a

Base engine - Basic engine with intake manifold and valve covers
Dress engine - Complete engine including induction, ignition, fuel pump and other accessories
Block:
4-bolt main block
Passenger side dipstick
Square and parallel decked
Align honed main bearing bore
Cylinders are sonic tested for thickness
Cylinders honed on a computer controlled machine to within .0002'' straightness and roundness
Rotating Assembly:
SCAT 3.75'' stroke cast crankshaft (2 piece rear main seal)
SCAT 5.7'' I-beam rods
Keith Black hypereutectic pistons
Hastings Moly rings
Clevite bearings
Externally balanced rotating assembly
Melling high volume oil pump
Heavy duty double roller timing set
Cylinder Heads:
Dart aluminum heads
Hardened retainers and 1.437'' diameter valve springs
2.02'' swirl polished intake valves
1.60'' swirl polished exhaust valves
Hardened pushrods
Camshaft Specs:
Hydraulic Flat Tappet
Duration @ .050'' Lift: 224 Intake / 230 Exhaust
Lift: .480'' Intake / .486'' Exhaust
Lobe Separation: 110°
Other Features:
Professional Products dual-plane satin aluminum intake
Signature Series aluminum valve covers
Chrome timing cover
New 5-quart oil pan
Brass freeze plugs
Professional Products balancer
9.5:1 compression
Dress Model Adds:
Edelbrock 750cfm Carburetor
Edelbrock water pump
Edelbrock fuel pump
MSD distributor
MSD Coil
MSD spark plug wires
Braided fuel line
Horsepower: 395
Torque: 440
Note: All Blueprint Chevy 383 engines include a balance plate and require the use of a neutral balance flywheel/flexplate. This engine will not work for applications requiring EGR.
