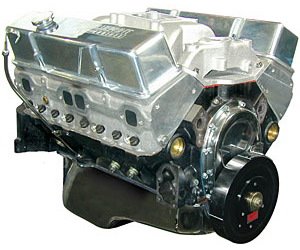

396ci SB Chevy Base Engine 500HP/525TQ

Name: 396ci SB Chevy Base Engine 500HP/525TQ
Brand: BLUEPRINT ENGINES
SKU: 138-BP3960CT
Price: 7098.99 USD
Availability: OutOfStock

Currently Unavailable

This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

Base Engine

500HP/525TQ

30 month/50,000 mile warranty.

Available as a:

Base Engine Assembly - Basic engine with aluminum valve covers
Dress Engine Assembly - Complete engine includes aluminum intake manifold, carburetor, distributor and other accessories
Block:
4 bolt main block (1 piece rear main seal)
Passenger side dipstick.
Square and parallel decked.
Align honed main bearing bore.
Cylinders are sonic tested for thickness.
Cylinders honed on a computer controlled machine to within .0002" straightness and roundness.
Rotating Assembly
Scat 3.875" stroke forged crankshaft.
Scat 6" forged I-Beam rods with 150,000 PSI rod bolts.
Melling high volume oil pump.
Heavy duty double roller timing set.
Probe Flat top forged pistons 10.4 to 1 compression
Hastings Moly Rings
Hydraulic Roller Cam and lifters
Comp Cams Pro Magnum 1.6 Roller Rockers
Cylinder Heads
New Performance aluminum heads.
195cc Intake Runners
64cc chamber.
Hardened retainers and springs
2.02 swirl polished intake valves
1.60 swirl polished exhaust valves
Hardened pushrods.
Cam Specs
Hydraulic Roller Cam
Lift: .544 Int/.554 Exh
Duration: 230 Int/236 Exh @ .050
Other Features:
Edelbrock Performer RPM intake manifold
Professional Products balancer
Signature series aluminum valve covers
Brass freeze plugs
Dyno tested - and shipped with results
Dress Model Adds:
Edelbrock 750CFM Carburetor
MSD 8362 Street Fire Distributor w/coil
Edelbrock mechanical fuel pump
Spark plug wires
Spark plugs
Edelbrock aluminum water pump
** This engine is not designed for EGR
** 2000+ RPM stall torque converter required
** 91 Octane fuel required
