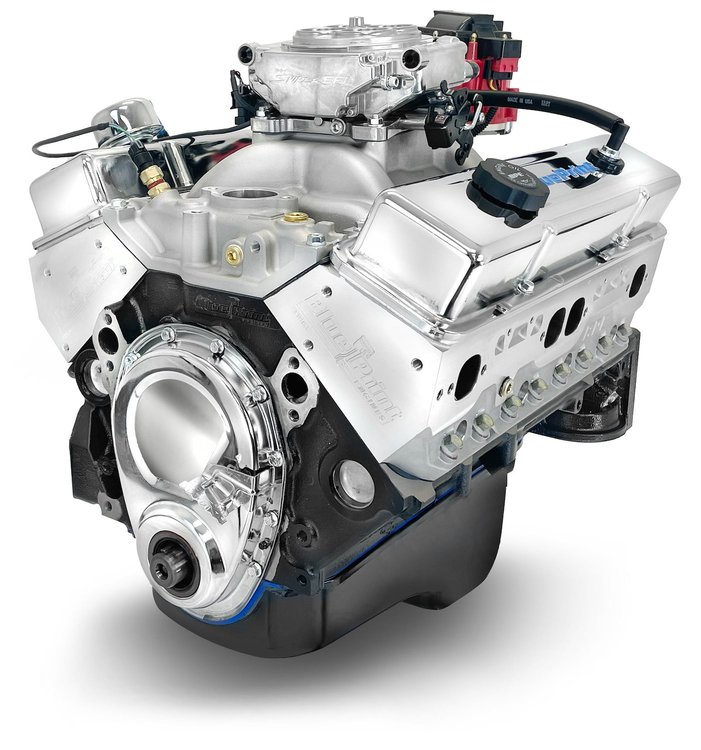

BP3961CTF Small Block Chevy 396 ci Stroker Dress Engine

Name: BP3961CTF Small Block Chevy 396 ci Stroker Dress Engine
Brand: BLUEPRINT ENGINES
SKU: 138-BP3961CTF
Price: 7499.00 USD
Availability: OutOfStock

Currently Unavailable

This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

Fuel Injected Engines

Small Block Chevy 396ci Stroker Dress Engine491 HP/509 TQ

1-Piece Rear Main Seal

Holley Sniper EFI System

Features:

Fuel injection throttle body, wiring harness, and computer are included
The computer is preloaded with engine specifications and then dyno-tuned, ready to install.
Balance: Internal Front/ External Rear
Harmonic Balancer: Non-weighted, 8 in. diameter
Flexplate/Flywheel: Late 350 weighted

Note: A high-pressure fuel system is required and sold separately.

Engine Break-In Procedure

Use or break-in oil or conventional (non-synthetic) multi-viscosity oil with zinc additive for the first 500 miles of operation. Avoid hard acceleration for sustained periods. Periodically change the engine speed while driving to help seat the rings. While the engine is running, be sure to check oil pressure and coolant temperature, and check for fluid leaks, such as oil, transmission fluid, fuel, and coolant/antifreeze. Also listen for any unusual sounds. Should you hear an unusual sound, shut the engine off, check for the source, and correct it.

Engines with flat tappet cams only - Start the engine and bring it to 2,000 RPM. Get the engine running smoothly. Then vary the engine speed from 1,800-2,200 RPM in a slow acceleration/deceleration cycle for 30 minutes. This is necessary to provide adequate oil splash and lifter rotation to properly mate each lifter to its lobe.

At 500 Miles change the engine oil and filter using conventional (non-synthetic) oil. After 6,000 miles, synthetic oils can be used in your engine. For flat tappet cam engines, continued use of oil with zinc or a zinc additive for the life of your engine is recommended.

Emissions Note:

This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.

CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART

Blueprint Small Block Chevy Engines are a great choice for drivable and reliable high-performance engines. All rotating assemblies are balanced within 2 grams on a computerized balancer. Blueprint Engines are dyno tested and include dyno sheets.
Best of all they feature a 30 month/50,000 mile warranty.

Recommended Stall Converter: 2000+ rpm
Recommended Fuel: 91 Octane

Block:

4-bolt main block
1-piece rear main seal
Align honed main bearing bore
Cylinders are sonic tested for thickness
Cylinders honed on a computer controlled machine to within .0002'' straightness and roundness

Rotating Assembly:
Forged Steel 3.875" stroke crankshaft
Heavy Beam 6" Rods
Forged pistons, 10.4 to 1 compression
Hastings Moly rings
Clevite bearings
Externally balanced rotating assembly
Melling high volume oil pump
Heavy duty double roller timing set

Cylinder Heads:
Blueprint Performance Aluminum Heads w/ 64cc chamber
Hardened retainers and 1.25'' diameter valve springs
2.08'' swirl polished intake valves
1.60'' swirl polished exhaust valves
Hardened pushrods

Camshaft Specs:
Hydraulic Roller Cam
Duration @ .050'' Lift: 230 Intake / 236 Exhaust
Lift: .544'' Intake / .555'' Exhaust

Other Features:
Chrome valve covers
Chrome timing cover
New 5-quart oil pan
Brass freeze plugs
10.4:1 compression

Dress Model Adds:
Dual Plane, Satin Aluminum Intake Manifold
Holley 750 cfm Manual Choke Vacuum Secondary Zinc Carburetor - 510-0-3310S or Holley Sniper EFI System
HEI Distributor & Coil

Note: This engine will not work for applications requiring EGR. Does not include flywheel/flexplate.
Your BluePrint engine was dyno tested with the parts and specifications listed below. If you prefer to install a different part, your engine may not produce the horsepower recorded on your dyno sheet.
Part Number: BP3961CT
Fuel Delivery Type: Carbureted, 750cfm
Spark Plug: AC Delco 41-629
Spark Plug Gap: .045"
Harmonic Balancer: Non-Weighted - 8" diameter
Flexplate/Flywheel: Late 350 Weighted
Intake Manifold: Dual plane
Fuel Recommendation: 91 Octane
Timing (Initial/Total Advance): Total timing 32°
Firing Order: 1-8-4-3-6-5-7-2
