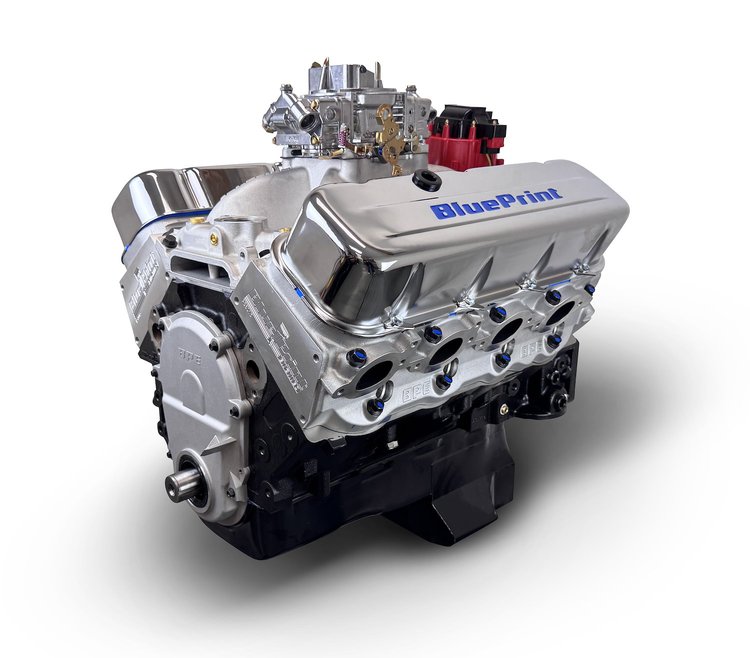

Blueprint Engines BP4967CTC Big Block Chevy 496 ci. Base Dressed Engine [600 HP]:

• Block:
  • NEW BluePrint Cast Iron Block
  • 4-Bolt Main
  • 4.310 in. Bore
  • 1-Piece Rear Main Seal
  • Mechanical Fuel Pump Provision
  • Standard Deck
• Rotating Assembly:
  • New BluePrint Forged Crankshaft
  • 4.250 in. Stroke
  • OEM Type 6.135 in. Connecting Rods w/150000 PSI Bolts
  • Hypereutectic Pistons
  • External Balance
• Cylinder Heads:
  • BluePrint Aluminum Cylinder Heads PS8013
  • Compression Ratio: 10.1:1
  • 119 cc Chambers
  • 2.30 in. Intake/1.88 in. Exhaust Valves
  • 316 cc Intake/124 cc Exhaust Runners
  • .300 in. Raised Exhaust Port vs OEM Casting
• Cam Specs:
  • Cam Type: Hydraulic Roller
  • .647 Intake/.647 Exhaust Lift
  • 248 Intake/254 Exhaust Duration @ .050
  • Lobe Seperation (LSA) 112
• Ignition Timing:
  • Initial Timing 10-16° and Total Timing 32-34°
• Also Includes:
  • Holley 850 cfm Double Pumper Carburetor w/Manual Choke
  • Intake Manifold Single Plane, Satin Aluminum
  • Oil Pan
  • Valve Covers
  • Timing Cover

Blueprint Engines BP4967CTC Big Block Chevy 496 ci. Base Dressed Engine [600 HP] Notes:

• External 42.5 oz. imbalance
• Cylinder heads on this engine feature a .300 in. raised exhaust port vs OEM Verify Header/Exhaust Clearance
• A bronze distributor gear is NOT recommended on this engine

Emissions Note:

This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.

CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
