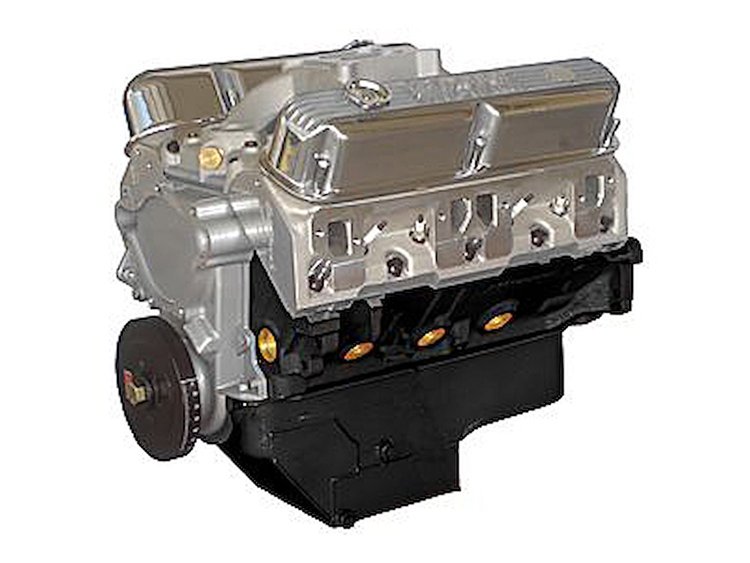

SB-Chrysler 408ci Base Engine 455HP/510TQ

Name: SB-Chrysler 408ci Base Engine 455HP/510TQ
Brand: BLUEPRINT ENGINES
SKU: 138-BPC4081CT
Price: 7017.99 USD
Availability: OutOfStock

Currently Unavailable

This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

Base Model

455HP/510TQ

Blueprint Engines

30 month/50,000 mile warranty

Available as a

Base engine - Basic engine with intake manifold and valve covers
Dress engine - Complete engine including induction, ignition, fuel pump and other accessories
Block:
Seasoned 360 block
Square and parallel decked
Align honed main bearing bore
Cylinders are sonic tested for thickness
Cylinders honed on a computer controlled machine to within .0002'' straightness and roundness
Rotating Assembly:
SCAT 4'' stroke cast iron crankshaft
Keith Black forged pistons
SCAT 6.123'' H-beam rods with 150,000 psi ARP bolts
Hastings Moly rings
Clevite bearings
Externally balanced rotating assembly
Melling high volume oil pump
Heavy duty double roller timing set
Cylinder Heads:
Edelbrock Aluminum Performer RPM heads
Hardened retainers and 1.435'' diameter valve springs
2.02'' swirl polished intake valves
1.60'' swirl polished exhaust valves
Hardened pushrods
Camshaft Specs:
Hydraulic Flat Tappet
Duration @ .050'' Lift: 241 Intake / 247 Exhaust
Lift: .545'' Intake / .545'' Exhaust
Lobe Separation: 110°
Other Features:
Edelbrock RPM Air-Gap Intake
New 7-quart oil pan
Brass freeze plugs
Professional Products balancer
10.0:1 compression
Dress Model Adds:
Demon 825cfm carburetor
Edelbrock water pump
MSD Distributor
MSD Coil
MSD spark plug wires
Holley fuel pump
Braided fuel line
Mopar Performance Aluminum valve covers
Horsepower: 455
Torque: 510
