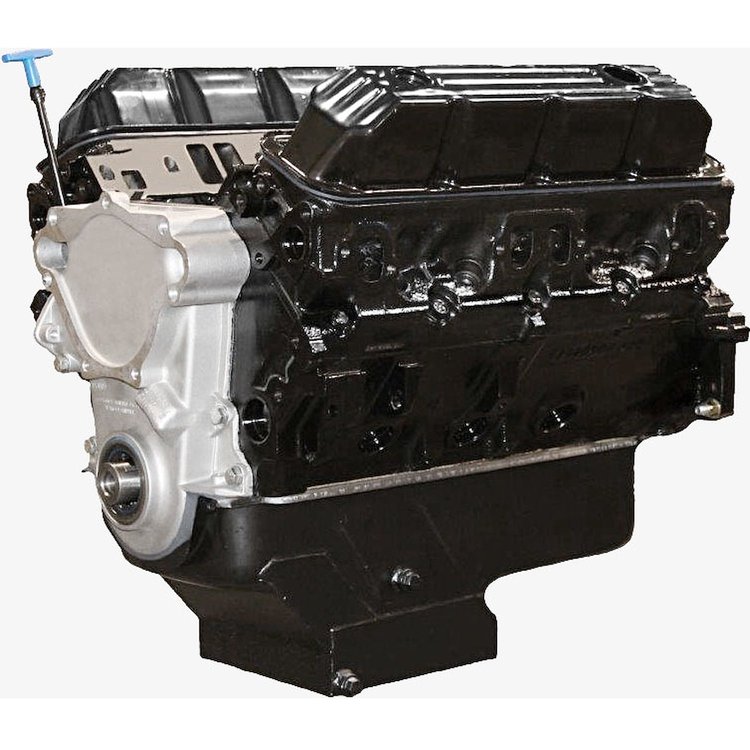

*USED Small Block Chrysler 408ci Stroker Base Engine 375HP/460TQ

Name: *USED Small Block Chrysler 408ci Stroker Base Engine 375HP/460TQ
Brand: BLUEPRINT ENGINES
SKU: 138-BPC4082CTU
Price: 4250.99 USD
Availability: OutOfStock

Currently Unavailable

This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

Base Engine

Small Block Chrysler 408ci Stroker Base Engine

375HP/460TQ

*Used* - Factory Warranty Does Not Apply

Externally Balanced - Requires harmonic balancer 312-P5007187AB , or 428-80012 w/ weight 91013 (included) - 1993-'03 5.9L External Balance.
Externally Balanced - Requires Flex Plate 130-10236, 130-10239, or 1971-92 OEM 360 Torque Convertor w/ balance weight.

Blueprint Engines are a great choice for drivable and reliable high performance engines. All rotating assemblies are balanced within 2 grams on a computerized balancer. Blueprint Engines are dyno tested and include dyno sheets. Best of all they feature a 30 month/50,000 mile warranty.

Recommended Stall Converter: 1800-2200 rpm
Recommended Fuel: 91 Octane

Block:

360 LA Stroker block bored .040'' over
2-Bolt Main
Square and parallel decked
Align honed main bearing bore
Cylinders are sonic tested for thickness
Cylinders honed on a computer controlled machine to within .0002'' straightness and roundness

Rotating Assembly:
Cast Steel 4.000" Stroke Crank & 6.123" Rods
Forged flat top pistons
Hastings Moly rings
Clevite bearings
Balanced rotating assembly
Melling high volume oil pump
Heavy duty double roller timing set

Cylinder Heads:
Blueprint Magnum Cast Iron heads
Hardened Retainers and Springs
1.92" Swirl Polished Intake Valves
1.625" Swirl Polished Exhaust Valves
Hardened Push Rods
62cc Chamber

Camshaft Specs:
Flat Tappet Cam
Duration @ .050'' Lift: 238 Intake / 238 Exhaust
Lift: .474'' Intake / .474'' Exhaust
Lobe Separation: 110°

Other Features:
Aluminum Valve Covers
New oil pan
New timing cover
Brass freeze plugs
9.8:1 compression

Dress Model Adds:
Dual Plane Satin Aluminum Intake Manifold
Holley 750 cfm Manual Choke Vacuum Secondary Zinc Carburetor - 510-0-3310S
Distributor & Coil
