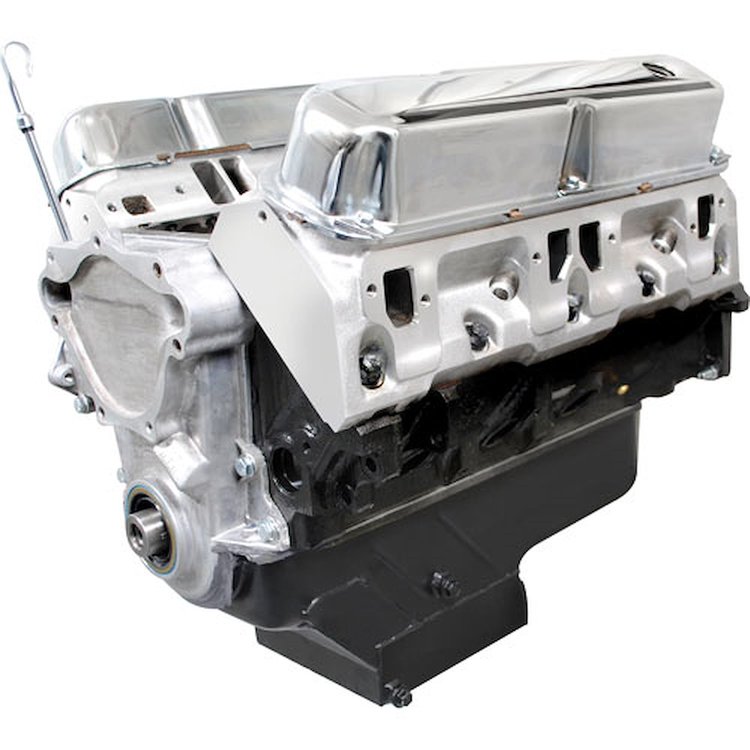

Blueprint Engines are a great choice for drivable and reliable high performance engines. All rotating assemblies are balanced within 2 grams on a computerized balancer. Blueprint Engines are dyno tested and include dyno sheets.
Best of all they feature a 30 month/50,000 mile warranty.

Recommended Stall Converter: 2000-2400 rpm
Recommended Fuel: 91 Octane

Block:

• 360 LA Stroker block bored .040" over
• 2-Bolt Mains
• Square and parallel decked
• Align honed main bearing bore
• Cylinders are sonic tested for thickness
• Cylinders honed on a computer controlled machine to within .0002" straightness and roundness

  Rotating Assembly:
• Cast Steel 4.000" Stroke Crank & 6.123" Rods
• Forged flat top pistons
• Hastings Moly rings
• Clevite bearings
• Balanced rotating assembly
• Melling high volume oil pump
• Heavy duty double roller timing set

  Cylinder Heads:
• Aluminum heads, 63cc Chamber
• 2.02" swirl polished intake valves
• 1.60" swirl polished exhaust valves

  Camshaft Specs:
• Flat Tappet Cam
• Duration @ .050" Lift: 241 Intake / 247 Exhaust
• Lift: .545" Intake / .545" Exhaust
• Lobe Seperation: 110°

  Other Features:
• Chrome Aluminum Valve Covers
• New oil pan
• New timing cover
• Brass freeze plugs
• 10:1 compression

  Dress Model Adds:
• Dual Plane Satin Aluminum Intake Manifold
• 750 cfm Carburetor or Holley Sniper EFI System
• Distributor & Coil



  ---




  Note: Your BluePrint engine was dyno tested with the parts and specifications listed below. If you prefer to install a different part, your engine may not produce the horsepower recorded on your dyno sheet.

• Part Number: BPC4083CT
• Fuel Delivery Type: Carbureted, 750cfm
• Spark Plug: Champion 792
• Spark Plug Gap: .045"
• Harmonic Balancer: 360 Magnum Weighted, 7.25" Diameter
• Flexplate/Flywheel: Pre-Magnum, Weighted 360
• Intake Manifold: Dual plane
• Fuel Recommendation: 91 Octane
• Timing (Initial/Total Advance): Initial timing - 10-16° and Total timing 32-34°
• Firing Order: 1-8-4-3-6-5-7-2

JEGS Easy Kits are designed by JEGS high performance racing professionals to help you get all the performance parts you need for your race car, hot rod or truck.
