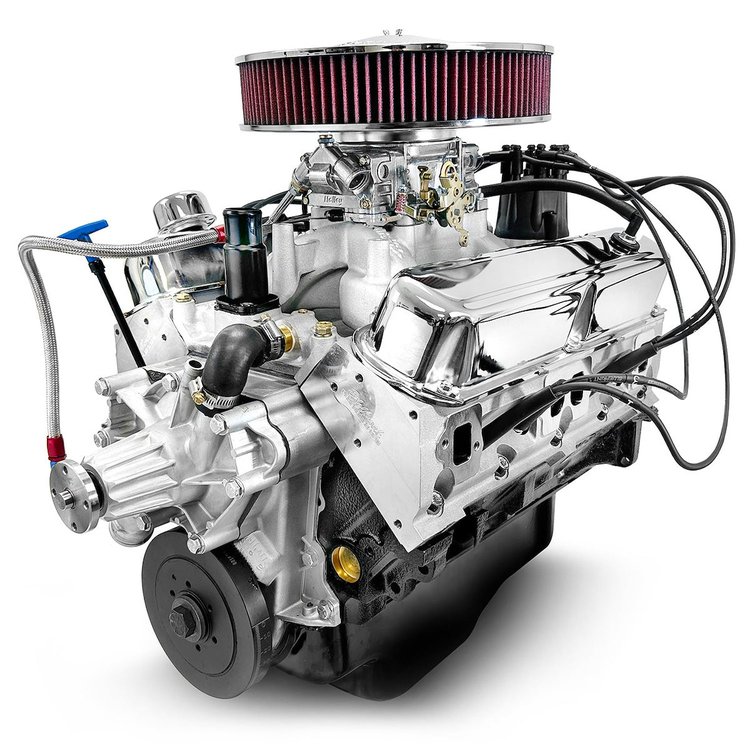

BPC4085CTCD Chrysler Small Block Compatible 408 ci. Stroker Deluxe Dressed Engine [465 HP]

Name: BPC4085CTCD Chrysler Small Block Compatible 408 ci. Stroker Deluxe Dressed Engine [465 HP]
Brand: BLUEPRINT ENGINES
SKU: 138-BPC4085CTCD
Price: 9999.00 USD
Availability: InStock

^$9,999⁰⁰

Truck Freight

Ships on Sep 07, 2026

Lowest Price Guarantee

Deluxe Dressed Engines

Chrysler Small Block 408 ci. Stroker Deluxe Dressed Engine

Includes:

Base Dressed Engine w/465 HP, 494 ft.lbs. TQ
Spark Plugs & Wires
Thermostat w/Housing
Fuel Pump & Line
Water Pump
Air Cleaner

Blueprint BPC4085CTCD Chrysler Small Block Compatible 408 ci. Stroker Deluxe Dressed Engine:
- Block:
  - Hand-Picked Seasoned Block
  - Square and Parallel Decked
  - Align Honed Main Bearing Bore
  - Cylinders Honed on Computer Controlled Machine to Within .0002 Straightness and Roundness
  - Cylinders are Sonic Tested for Thickness
  - 2-Bolt Main
  - 4.040 in. Bore
  - 2-Piece Rear Main Seal
  - Mechanical Fuel Pump Provision
- Rotating Assembly:
  - New Steel Crankshaft
  - 4 in.Stroke
  - Forged Magnum 6.123 in. Connecting Rods w/150000 PSI Bolts
  - Forged Pistons
  - Externally Balanced Front and Rear
- Cylinder Heads:
  - BluePrint Engines Assembled and Machined Edelbrock 61769 Casting
  - Aluminum Magnum Pattern
  - Compression Ratio: 10:1
  - 58 cc Chambers
  - Aluminum Roller Rockers
  - 2.02 in. Intake/1.60 in. Exhaust Valves
  - 176 cc Intake/75 cc Exhaust Runners
- Cam Specs:
  - Cam Type: Hydraulic Roller
  - .544 Intake/.541 Exhaust Lift
  - 236 Intake/242 Exhaust Duration @ .050
  - Lobe Seperation (LSA) 110
- Ignition Timing:
  - 34 Degrees at 4000 RPM
- Also Includes:
  - Valve Covers
  - Oil Pan
  - Timing Cover
  - Spark Plugs and Wires
  - Distributor
  - Water Neck
  - Thermostat and Thermostat Housing
  - Fuel Pump and Fuel Line
  - Harmonic Balancer
  - Air Cleaner
  - Driver Side Inlet Water Pump
Blueprint BPC4085CTCD Chrysler Small Block Compatible 408 ci. Stroker Deluxe Dressed Engine Notes:
- Recommended Pilot Bearing OD is 1.81 in. if using a Manual Transmission
Emissions Note:
This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.
CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART

Mopar Stroker Engines with Big Performance

Blueprint Chrysler 408 ci. Engines are a great choice for those needing high-performance with great street manners and driveability. All rotating assemblies are balanced within 2 grams on a computerized balancer to ensure smooth operation across the RPM rev range. Every Blueprint engine will include the dyno testing sheet so you can see the horsepower, torque, and confidence of a properly tested engine.

Part TypeEngine

Product LineBlueprint Engines Chrysler Small Block 408 ci. Stroker Crate Engines

BrandBLUEPRINT ENGINES

Package Height27.0

Package Width30.0

Package Length38.0

Weight545.0 PG

Part CategoryPerformance Parts

Engine TypeHigh-Performance Crate Engine

Cylinder Head MaterialAluminum

Engine Block MaterialCast Iron

Dyno TestedYes
