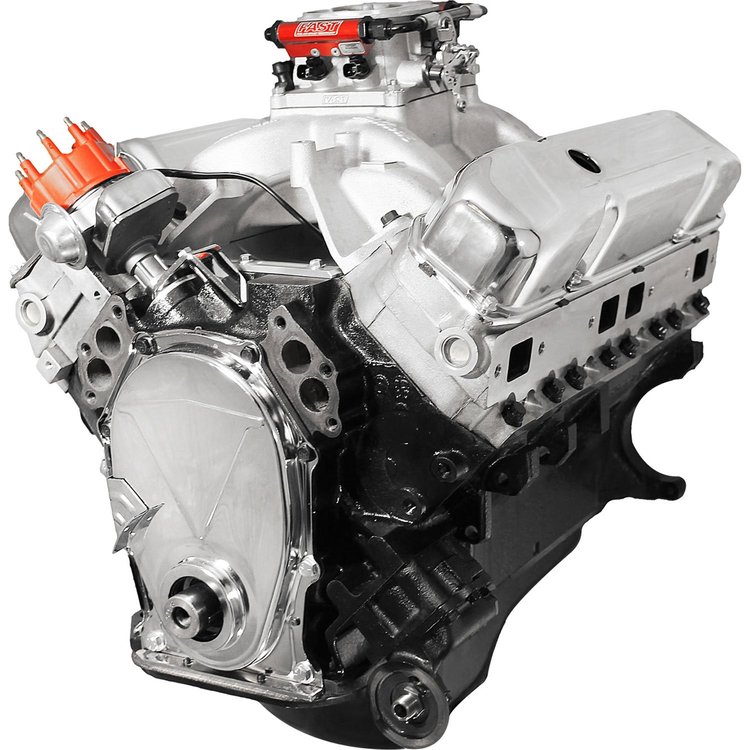

Blueprint Engines are a great choice for drivable and reliable high performance engines. All rotating assemblies are balanced within 2 grams on a computerized balancer. Blueprint Engines are dyno tested and include dyno sheets.
Best of all they feature a 30 month/50,000 mile warranty.

Recommended Stall Converter: 2000-2400 rpm
Recommended Fuel: 91 Octane

Engine Block:

• 440 Chrysler Block
• Square and Parallel Decked
• Align Honed Main Bearing Bore
• Cylinders are Sonic Tested for Thickness
• Cylinders Honed on a Computer Controlled Machine to Within .0002'' Straightness and Roundness

  Rotating Assembly:
• New Forged Steel 4.150" Crankshaft
• Forged 6.760" Connecting Rods
• 10.0:1 Compression Ratio
• Forged Pistons
• Hastings Moly Piston Rings
• Balanced Rotating Assembly
• Melling High Volume Oil Pump
• Hydraulic Flat Tappet Camshaft
• Heavy Duty Double Roller Timing Set

  Cylinder Heads:
• Aluminum
• 80cc Combustion Chambers

  Camshaft Specs:
• Hydraulic Flat Tappet Lifters
• Lift: .545'" Intake / .545" Exhaust
• Duration @ .050'' Lift: 241° Intake / 247° Exhaust

  Other Features:
• Valve Covers
• New 4-Quart Oil Pan
• New Timing Cover
• Brass Freeze Plugs

  Dress Model Adds:
• Edelbrock Dual Plane Intake Manifold, Satin Aluminum Finish
• Edelbrock 800cfm Carburetor or Fast EZ EFI System
• HEI Distributor



  ---




  Note: Your BluePrint engine was dyno tested with the parts and specifications listed below. If you prefer to install a different part, your engine may not produce the horsepower recorded on your dyno sheet.

• Part Number: BPC4931CT
• Fuel Delivery Type: Carbureted, 850cfm
• Spark Plug: Champion 792
• Spark Plug Gap: .045"
• Harmonic Balancer: Non Weighted
• Flexplate/Flywheel: Non-Weighted
• Intake Manifold: Dual Plane
• Fuel Recommendation: 91 Octane
• Timing (Initial/Total Advance): Initial timing - 10-16° and Total timing 32-34°
• Firing Order: 1-8-4-3-6-5-7-2
