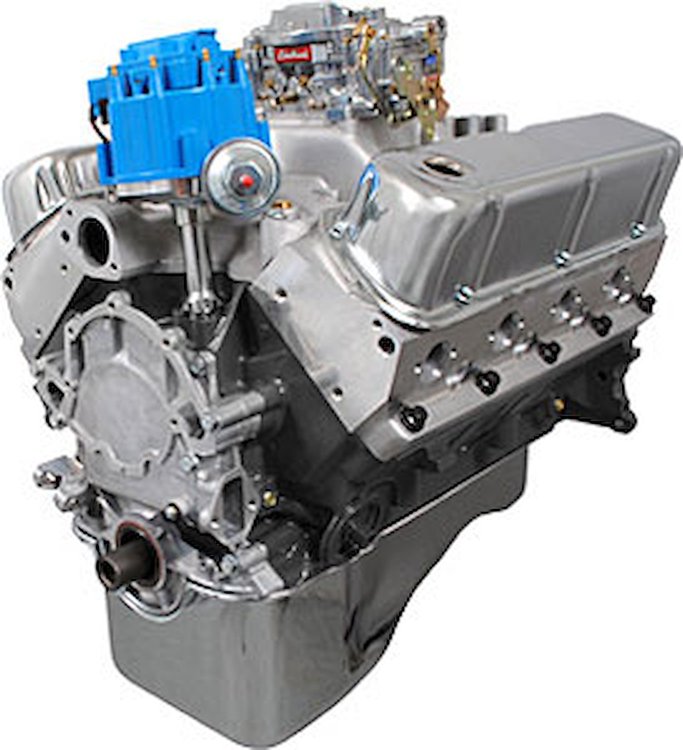

Small Block Ford 408ci Stroker Dress Engine 425 HP/455 ft.-lbs.

Name: Small Block Ford 408ci Stroker Dress Engine 425 HP/455 ft.-lbs.
Brand: BLUEPRINT ENGINES
SKU: 138-BPF4088CTC
Price: 6799.00 USD
Availability: OutOfStock

Currently Unavailable

This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

Dress Engine

425 HP/455 ft.-lbs.
Dress Engine

Engine Break-In Procedure
Use or break-in oil or conventional (non-synthetic) multi-viscosity oil with zinc additive for the first 500 miles of operation. Avoid hard acceleration for sustained periods. Periodically change the engine speed while driving to help seat the rings. While the engine is running, be sure to check oil pressure and coolant temperature, and check for fluid leaks, such as oil, transmission fluid, fuel, and coolant/antifreeze. Also listen for any unusual sounds. Should you hear an unusual sound, shut the engine off, check for the source, and correct it.
Engines with flat tappet cams only - Start the engine and bring it to 2,000 RPM. Get the engine running smoothly. Then vary the engine speed from 1,800-2,200 RPM in a slow acceleration/deceleration cycle for 30 minutes. This is necessary to provide adequate oil splash and lifter rotation to properly mate each lifter to its lobe.
At 500 Miles change the engine oil and filter using conventional (non-synthetic) oil. After 6,000 miles, synthetic oils can be used in your engine. For flat tappet cam engines, continued use of oil with zinc or a zinc additive for the life of your engine is recommended.

Stroker Small Block Ford Power!!

Blueprint Engines are a great choice for drivable and reliable high-performance engines. All rotating assemblies are balanced within 2 grams on a computerized balancer. Blueprint Engines are dyno tested and include dyno sheets.
Best of all they feature a 30 month / 50,000 mile warranty.

Recommended Stall Converter: 2000-2400 rpm
Recommended Fuel: 91 Octane

Block:

Seasoned 351W block
2-Bolt Main
1-Piece Rear Main Seal
Mechanical Fuel Pump Provision
Square and parallel decked
Align honed main bearing bore
Cylinders are sonic tested for thickness
Cylinders honed on a computer controlled machine to within .0002'' straightness and roundness

Rotating Assembly:

Cast Steel 4.000 in. stroke crank, internal balance
Forged I-beam 6.200 in. rods
Forged pistons
Clevite bearings
Balanced rotating assembly
Melling high volume oil pump
Heavy duty double roller timing set

Cylinder Heads:

Aluminum heads [138-HP9009]
60cc combustion chamber
2.020 in. intake valves
1.600 in. exhaust valves
190cc intake runner
65cc exhaust runner

Camshaft Specs:

Hydraulic roller cam
Duration @ .050 in. lift 218 intake / 226 exhaust
Lift: .543 in. intake / .554 in. exhaust
Lobe Separation: 112

Other Features:

New Chrome Valve Covers
New oil pan
New timing cover
Brass freeze plugs
9.8:1 compression

Dress Model Adds:

Professional Dual Plane Satin Aluminum Intake Manifold
Holley 750 cfm Manual Choke Vacuum Secondary Zinc Carburetor - 510-0-3310S or Holley Sniper EFI System
HEI Distributor & Coil

Note: Your BluePrint engine was dyno tested with the parts and specifications listed below. If you prefer to install a different part, your engine may not produce the horsepower recorded on your dyno sheet.
Part Number: BPF4088CT
Fuel Delivery Type: Carbureted, 750 cfm
Spark Plug: Champion 792
Spark Plug Gap: .045 in.
Harmonic Balancer: Non-weighted 6.400 in. Diameter
Flexplate/Flywheel: Non-weighted
Intake Manifold: Dual plane
Fuel Recommendation: 91 Octane
Timing (Initial/Total Advance): Initial timing - 10-16 degrees and Total timing 32-34 degrees
Firing Order: 1-3-7-2-6-5-4-8
