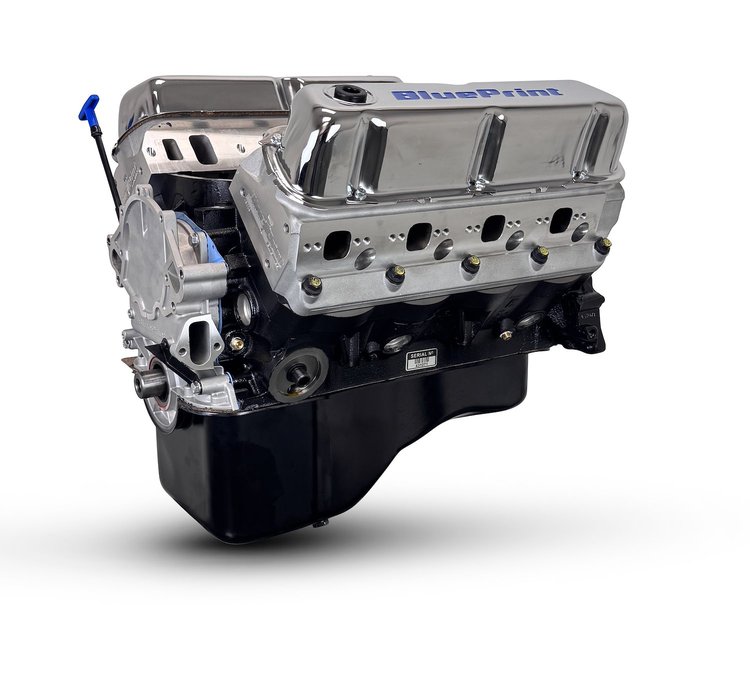

Blueprint Engines BPF4089CT Ford Small Block Compatible 408 ci. Long Block:

• Block:
  • Hand-Picked Seasoned Block
  • Square and Parallel Decked
  • Priority Main Oiling
  • Line Honed Main Bearing Bore
  • Cylinders Honed on Computer-Controlled Machine to Within .0002 in. Straightness and Roundness
  • Cylinders are Sonic Tested for Thickness
  • 4-Bolt Main
  • 4.040 in. Bore
  • 1-Piece Rear Main Seal
  • Mechanical Fuel Pump Provision
• Rotating Assembly:
  • New Steel Crankshaft
  • 4 in. Stroke
  • Forged 6.200 in. Connecting Rods
  • Forged Pistons
  • 28 oz Externally balanced Front and Rear
• Cylinder Heads:
  • BluePrint Aluminum Cylinder Heads HP9010 w/Spring Upgrade
  • Compression Ratio: 10:1
  • 60 cc Chambers
  • 2.02 in. Intake/1.60 in. Exhaust Valves
  • 190 cc Intake/65 cc Exhaust Runners
• Cam Specs:
  • Cam Type: Hydraulic Roller
  • .579 Intake/.579 Exhaust Lift
  • 236 Intake/248 Exhaust Duration @ .050
  • Lobe Seperation (LSA) 114
• Ignition Timing:
  • 34 Degrees Total @ 3500 RPM
• Also Includes:
  • Front Sump Oil Pan
  • Valve Covers
  • Timing Cover

Blueprint Engines BPF4089CT Ford Small Block Compatible 408 ci. Long Block Note:

• A bronze distributor gear is NOT recommended on this engine

Emissions Note:

This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.
