• Long Block w/450 HP/470 ft.lbs. TQ
• Throttle Body
• Intake
• Distributor
• Damper
• Timing Cover
• Valve Covers
• Front Sump Oil Pan

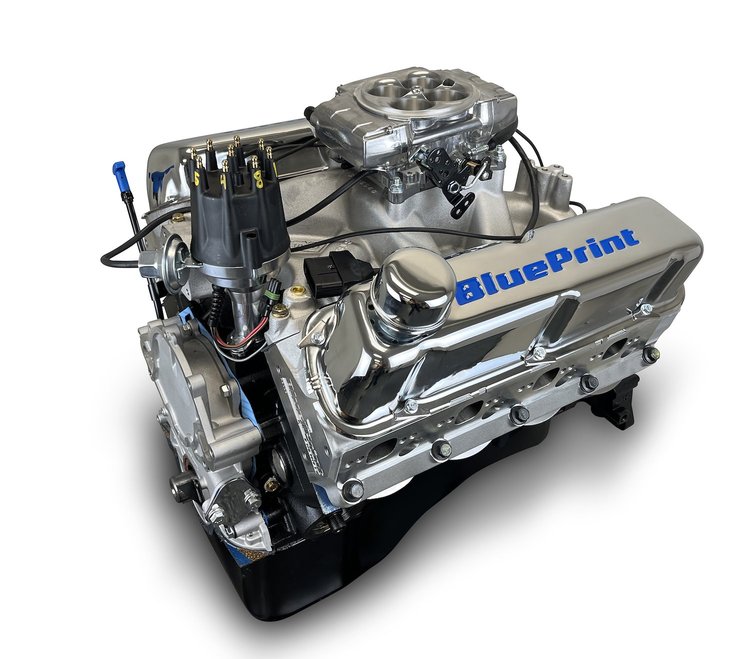

  Blueprint Engines BPF4089CTF Ford Small Block Compatible 408 ci. Long Block:

  • Block:
    • Hand-Picked Seasoned Block
    • Square and Parallel Decked
    • Priority Main Oiling
    • Line Honed Main Bearing Bore
    • Cylinders Honed on Computer-Controlled Machine to Within .0002 in. Straightness and Roundness
    • Cylinders are Sonic Tested for Thickness
    • 4-Bolt Main
    • 4.040 in. Bore
    • 1-Piece Rear Main Seal
    • Mechanical Fuel Pump Provision
  • Rotating Assembly:
    • New Steel Crankshaft
    • 4 in. Stroke
    • Forged 6.200 in. Connecting Rods
    • Forged Pistons
    • 28 oz Externally balanced Front and Rear
  • Cylinder Heads:
    • BluePrint Aluminum Cylinder Heads HP9010 w/Spring Upgrade
    • Compression Ratio: 10:1
    • 60 cc Chambers
    • 2.02 in. Intake/1.60 in. Exhaust Valves
    • 190 cc Intake/65 cc Exhaust Runners
  • Cam Specs:
    • Cam Type: Hydraulic Roller
    • .579 Intake/.579 Exhaust Lift
    • 236 Intake/248 Exhaust Duration @ .050
    • Lobe Seperation (LSA) 114
  • Ignition Timing:
    • 34 Degrees Total @ 3500 RPM
  • Also Includes:
    • Front Sump Oil Pan
    • Holley Sniper 2 EFI System
    • Intake Manifold
    • Distributor
    • Valve Covers
    • Timing Cover

  Blueprint Engines BPF4089CTF Ford Small Block Compatible 408 ci. Long Block Notes:

  • Does not include fuel pump
  • Holley Sniper EFI is NOT compatible with AOD trans. It does NOT have AOD kickdown lever

Emissions Note:

This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.

CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
