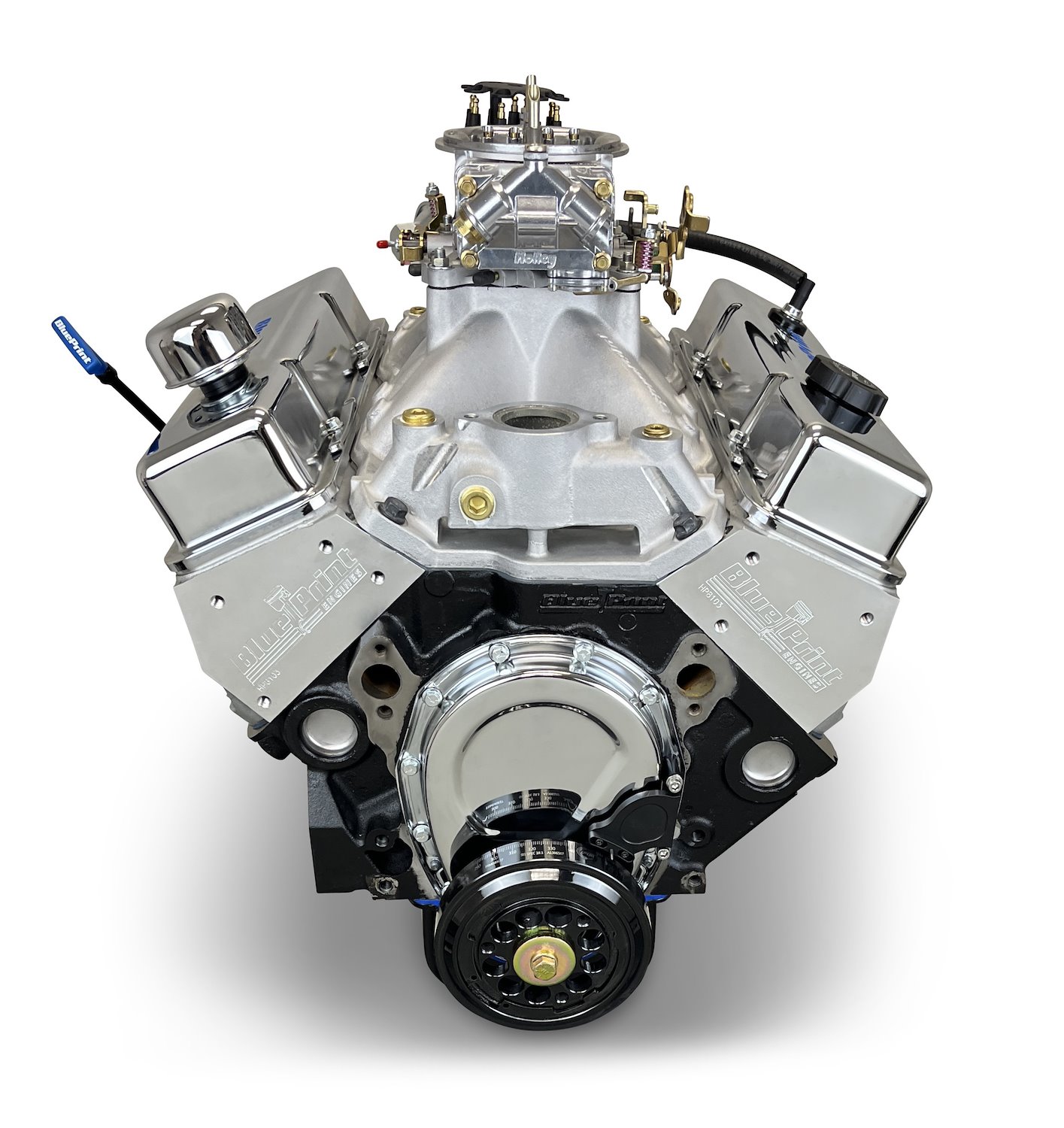

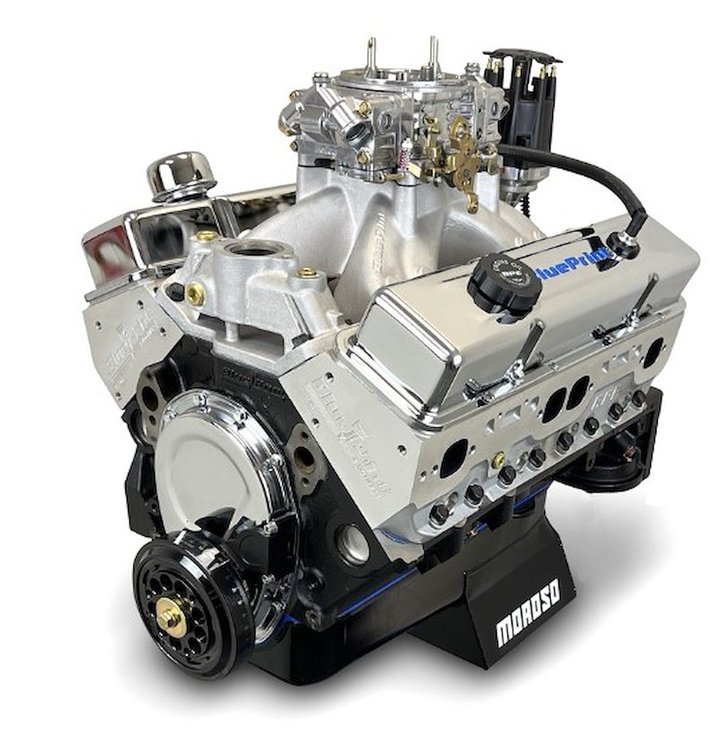

Blueprint Motorsports BPMS396CTC Crate Engine Overview:

• All-forged Small Block Chevy-Compatible engine
• Built for hard-hitting racing performance
• Designed to handle extreme conditions with race-proven components

• Description:
• 530 Horsepower / 480 FT. LBS. Torque
• Compression Ratio: 10.4:1
• BluePrint Aluminum Cylinder Heads
• BluePrint Hydraulic Roller Camshaft
• BluePrint Forged Crankshaft
• BluePrint Forged 4032 Pistons
• Block:
• BluePrint High-Strength Cast Iron Block
• Cylinders honed on computer-controlled machine to within .0002in. straightness and roundness
• Cylinders sonic tested for thickness
• Drilled and tapped for clutch linkage
• Align-honed main bearing bore
• Mechanical fuel pump provision: Yes
• Passenger side dipstick
• 1-piece rear main seal
• 4-bolt main
• 4.000in. bore
• Rotating Assembly:
• BluePrint Forged Crankshaft
• 3.875in. stroke
• Forged I-beam 6.000in. connecting rods
• BluePrint Forged 4032 Pistons
• Internally balanced front / externally balanced rear
• Cylinder Heads:
• BluePrint Aluminum Cylinder Heads - HP8103
• 64cc chambers
• 2.08in. intake / 1.60in. exhaust valves
• 220cc intake / 67cc exhaust runners
• Cam Specs:
• Hydraulic roller camshaft
• .638in. intake / .622in. exhaust lift
• 251 intake / 259 exhaust duration @ .050
• 114° lobe separation
• Ignition Timing:
• 34° total ignition timing
• Also Includes:
• Holley 950 CFM Double Pumper Carburetor w/ mechanical secondaries - BPP082951
• BluePrint Aluminum Intake Manifold - BPP427454INT
• BluePrint Valve Covers - BPP9518
• Moroso Street / Strip Oil Pan
• HEI Distributor - BPP3503BK
• High volume oil pump
• Timing cover
• Balancer

Blueprint Motorsports BPMS396CTC Crate Engine Notes:

• Designed for maximum performance and extreme duty applications
• No warranty expressed or implied due to high-stress usage
• True 4.000in. bore with 3.875in. stroke equals 389 CID displacement
• Performance aluminum heads feature .500in. raised ports vs OEM

Emissions Note:

This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.
