BPMS396CTF GM Small Block Compatible 396 ci. Base Dressed Fuel Injected Engine [530 HP]
InfoVehicle Info Needed
BLUEPRINT ENGINESPART NUMBER: 138-BPMS396CTF

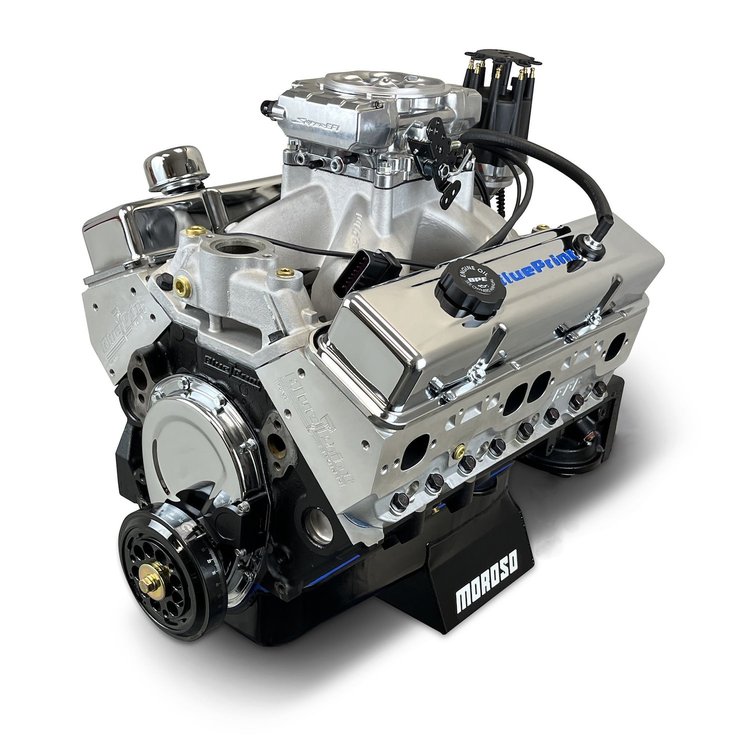

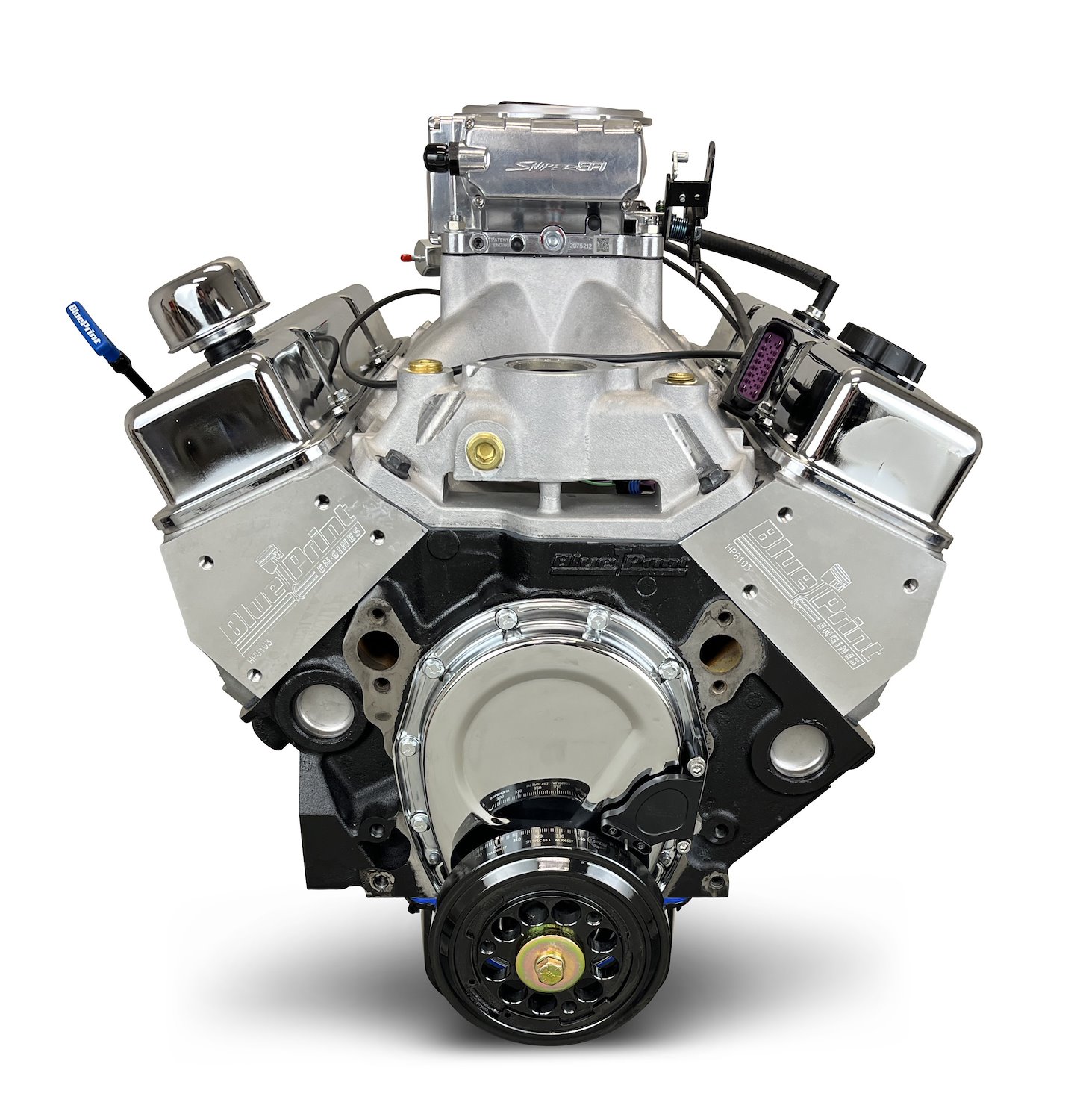

BPMS396CTF GM Small Block Compatible 396 ci. Base Dressed Fuel Injected Engine [530 HP]

$9,39900
Truck Freight
ShippingShips on 11/25/2026
Lowest PriceLowest Price Guarantee

Items You Need

1-Ton Automotive Shop Crane [Boom Operating Range: 34 in. to 45 in.]

JEGS

1-Ton Automotive Shop Crane [Boom Operating Range: 34 in. to 45 in.]

Part Number : 555-81044K
$23698
Air Cleaner with Logo 14 in. x 3 in. [Chrome-Plated]

JEGS

Air Cleaner with Logo 14 in. x 3 in. [Chrome-Plated]

Part Number : 555-50022
$5299$58.99
You Save$6.00
Premium High-Flow Short-Style Aluminum Water Pump Fits Select 1955-1972 Small Block Chevy 265-400 V8 [Natural]

JEGS

Premium High-Flow Short-Style Aluminum Water Pump Fits Select 1955-1972 Small Block Chevy 265-400 V8 [Natural]

Part Number : 555-51060
$14999$164.99
You Save$15.00
Harmonic Balancer Bolt for Small Block Chevy 283-400 Engines [6-Point Hex Head]

JEGS

Harmonic Balancer Bolt for Small Block Chevy 283-400 Engines [6-Point Hex Head]

Part Number : 555-82800
$699$7.99
You Save$1.00

Fuel Injected Engines
GM Big Block Chevy 396 ci. Base Dressed Crate Engine
  • 530 HP/480 ft.lbs. TQ
  • New Cast Iron Block
  • Aluminum Cylinder Heads
  • Hydraulic Roller Cam
  • Throttle Body
  • Intake
  • Distributor
  • Oil Pan
  • Timing Cover
  • Valve Covers

    Blueprint Motorsports BPMS396CTF Crate Engine Overview:

    • All-forged Small Block Chevy-Compatible engine
    • Built for hard-hitting racing performance
    • Designed to handle extreme conditions with race-proven components
    • Description:
      • 530 Horsepower / 480 FT. LBS. Torque
      • Compression Ratio: 10.4:1
      • BluePrint Aluminum Cylinder Heads
      • BluePrint Hydraulic Roller Camshaft
      • BluePrint Forged Crankshaft
      • BluePrint Forged 4032 Pistons
    • Block:
      • BluePrint High-Strength Cast Iron Block
      • Cylinders honed on computer-controlled machine to within .0002in. straightness and roundness
      • Cylinders sonic tested for thickness
      • Drilled and tapped for clutch linkage
      • Align-honed main bearing bore
      • Mechanical fuel pump provision: Yes
      • Passenger side dipstick
      • 1-piece rear main seal
      • 4-bolt main
      • 4.000in. bore
    • Rotating Assembly:
      • BluePrint Forged Crankshaft
      • 3.875in. stroke
      • Forged I-beam 6.000in. connecting rods
      • BluePrint Forged 4032 Pistons
      • Internally balanced front / externally balanced rear
    • Cylinder Heads:
      • BluePrint Aluminum Cylinder Heads - HP8103
      • 64cc chambers
      • 2.08in. intake / 1.60in. exhaust valves
      • 220cc intake / 67cc exhaust runners
    • Cam Specs:
      • Hydraulic roller camshaft
      • .638in. intake / .622in. exhaust lift
      • 251 intake / 259 exhaust duration @ .050
      • 114° lobe separation
    • Ignition Timing:
      • 34° total ignition timing
    • Also Includes:
      • BluePrint Aluminum Intake Manifold - BPP427454INT
      • Holley Sniper 2 EFI Self-Tuning Kit, Chrome - 550-510-3XX
      • BluePrint Valve Covers - BPP9518
      • Moroso Street / Strip Oil Pan
      • HEI Distributor - BPP3503BK
      • High volume oil pump
      • Timing cover
      • Balancer

    Blueprint Motorsports BPMS396CTF Crate Engine Notes:

    • Designed for maximum performance and extreme duty applications
    • No warranty expressed or implied due to high-stress usage
    • True 4.000in. bore with 3.875in. stroke equals 389 CID displacement
    • Performance aluminum heads feature .500in. raised ports vs OEM

    Emissions Note:

    This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.

    CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART

  • Blueprint Small Block Chevy Engines are a great choice for drivable and reliable high-performance engines. All rotating assemblies are balanced within 2 grams on a computerized balancer. Blueprint Engines are dyno tested and include dyno sheets.
    Best of all they feature a 30 month/50,000 mile warranty.

    Show More

    Recommended Stall Converter: 2000+ rpm
    Recommended Fuel: 91 Octane

    Block:

    • 4-bolt main block
    • 1-piece rear main seal
    • Align honed main bearing bore
    • Cylinders are sonic tested for thickness
    • Cylinders honed on a computer controlled machine to within .0002'' straightness and roundness

      Rotating Assembly:
    • Forged Steel 3.875" stroke crankshaft
    • Heavy Beam 6" Rods
    • Forged pistons, 10.4 to 1 compression
    • Hastings Moly rings
    • Clevite bearings
    • Externally balanced rotating assembly
    • Melling high volume oil pump
    • Heavy duty double roller timing set

      Cylinder Heads:
    • Blueprint Performance Aluminum Heads w/ 64cc chamber
    • Hardened retainers and 1.25'' diameter valve springs
    • 2.08'' swirl polished intake valves
    • 1.60'' swirl polished exhaust valves
    • Hardened pushrods

      Camshaft Specs:
    • Hydraulic Roller Cam
    • Duration @ .050'' Lift: 230 Intake / 236 Exhaust
    • Lift: .544'' Intake / .555'' Exhaust

      Other Features:
    • Chrome valve covers
    • Chrome timing cover
    • New 5-quart oil pan
    • Brass freeze plugs
    • 10.4:1 compression

      Dress Model Adds:
    • Dual Plane, Satin Aluminum Intake Manifold
    • Holley 750 cfm Manual Choke Vacuum Secondary Zinc Carburetor - 510-0-3310S or Holley Sniper EFI System
    • HEI Distributor & Coil



      Note: This engine will not work for applications requiring EGR. Does not include flywheel/flexplate.
      Your BluePrint engine was dyno tested with the parts and specifications listed below. If you prefer to install a different part, your engine may not produce the horsepower recorded on your dyno sheet.

    • Part Number: BP3961CT
    • Fuel Delivery Type: Carbureted, 750cfm
    • Spark Plug: AC Delco 41-629
    • Spark Plug Gap: .045"
    • Harmonic Balancer: Non-Weighted - 8" diameter
    • Flexplate/Flywheel: Late 350 Weighted
    • Intake Manifold: Dual plane
    • Fuel Recommendation: 91 Octane
    • Timing (Initial/Total Advance): Total timing 32°
    • Firing Order: 1-8-4-3-6-5-7-2

    JEGS Easy Kits are designed by JEGS high-performance racing professionals to help you get all the performance parts you need for your race car, hot rod or truck.

    Part TypeCrate Engine
    Product LineBlueprint Engines GM Chevy Small Block 396 ci. Engines
    BrandBLUEPRINT ENGINES
    Package Height27.0
    Package Width30.0
    Package Length38.0
    Weight525.0 PG
    Part CategoryPerformance Parts
    Engine TypeHigh-Performance Crate Engine
    Cylinder Head MaterialAluminum
    Engine Block MaterialCast Iron
    Dyno TestedYes
    Fuel DeliveryFuel Injected
    Engine Assembly StyleBase Dressed
    Part FitmentSemi Universal
    Engine Displacement396 ci.
    Engine Make/SizeChevy Small Block
    Camshaft StyleHydraulic Roller
    Vendor Part NumberBPMS396CTF
    Package Qty1
    Package TypeEA
