BB Chevy Cast Iron Engine Block Gen IV 2-Piece Rear Main Seal

Product Discontinued

BLUEPRINT ENGINESPART NUMBER: 138-BPS4250200S

BB Chevy Cast Iron Engine Block Gen IV 2-Piece Rear Main Seal

Name: BB Chevy Cast Iron Engine Block Gen IV 2-Piece Rear Main Seal
Brand: BLUEPRINT ENGINES
SKU: 138-BPS4250200S
Price: 2099.99 USD
Availability: OutOfStock

Currently Unavailable

This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

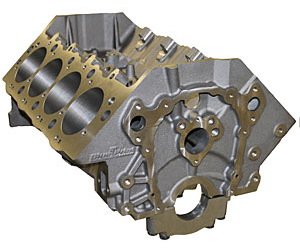

Cast Iron Big Block Chevy Block

Gen IV 9.8 Deck

Gen IV 2-Piece Rear Main Seal
4.250" Bore
9.8" Deck Height

!
Specifications for 138-BPS4250200S:
Material: Cast Iron
Deck Height: 9.800"
Deck Thickness: .700" minimum
Bore Size: 4.250"
Max. Bore: 4.625"
Cylinder Wall Configuration: Siamese
Cylinder Wall Thickness: .300"
Main Caps: Ductile Iron, 4 bolt splayed
Main Bearings: Standard Chevy
Main Bearing Bore: 2.9370" - 2.9380"
Crank Clearance: 4.375" for 9.800" deck
Rear Main Type: 2-Piece Rear Main Seal
Camshaft Location: Stock
Cam Bearings: Standard Chevy
Cam Drive: Timing Chain, Gear Drive and Belt Drive
Cam Plug: Standard BBC, 2.215" diameter
Timing Cover Pattern: Gen IV (10-bolt)
Lifter Bores: Gen V/VI, Will Accept Link Bar
Freeze Plugs: Standard 1 5/8" (Not included)
Lubrication: Main Priority Oiling, Wet or Dry Sump
Oil Filter Boss: Integral mount for spin-on filter
Oil Cooler Holes: Integral to block
Oil Pan Rail: Standard Big Block Chevy 2-Piece Rear Main Seal Bolt Pattern
Fuel Pump Boss: Yes
Fuel Pump Pushrod: Standard Big Block Chevy
Starter: Standard location
Motor Mounts: Front and side
Stud and Bolt Holes: Blind tapped to prevent leaks
Head Bolt Pattern: Standard Big Block Chevy
Inside Head Bosses: Yes
Torque Specs: All 1/2" bolts 105 ft/lbs
Clutch Linkage Boss: Yes
Weight: Approximately 275 lbs

Part TypeEngine Block

BrandBLUEPRINT ENGINES

Package Height27.0

Package Width30.5

Package Length31.5

Weight433.0 PG

Part CategoryPerformance Parts

Engine Block Weight (Lbs.)275

Deck Height9.8 in (248.92 mm)

ToolStroker Combinations

Vendor Part NumberBPS4250200S

Package Qty1

Package TypeEA
