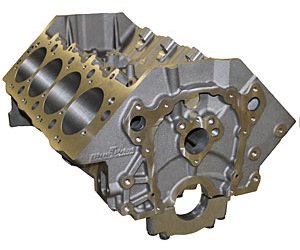

BB Chevy Cast Iron Engine Block Gen V/VI 1-Piece Rear Main Seal

Product Discontinued

BLUEPRINT ENGINESPART NUMBER: 138-BPT4600100S

BB Chevy Cast Iron Engine Block Gen V/VI 1-Piece Rear Main Seal

Name: BB Chevy Cast Iron Engine Block Gen V/VI 1-Piece Rear Main Seal
Brand: BLUEPRINT ENGINES
SKU: 138-BPT4600100S
Price: 2150.99 USD
Availability: OutOfStock

Currently Unavailable

This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

Cast Iron Big Block Chevy Block

Gen V/VI 10.2 Deck

Gen V/VI 1-Piece Rear Main Seal
4.600" Bore
10.2" Deck Height

!
Specifications for 138-BPT4600100S:
Material: Cast Iron
Deck Height: 10.200"
Deck Thickness: .700" minimum
Bore Size: 4.600"
Max. Bore: 4.625"
Cylinder Wall Configuration: Siamese
Cylinder Wall Thickness: .300"
Main Caps: Ductile Iron, 4 bolt splayed
Main Bearings: Standard Chevy
Main Bearing Bore: 2.9370" - 2.9380"
Crank Clearance: 4.750" for 10.200" deck
Rear Main Type: 1-Piece Rear Main Seal
Camshaft Location: Stock
Cam Bearings: Standard Chevy
Cam Drive: Timing Chain, Gear Drive and Belt Drive
Cam Plug: Standard BBC, 2.215" diameter
Timing Cover Pattern: Gen V/VI (6-bolt)
Lifter Bores: Gen V/VI, Will Accept Link Bar
Freeze Plugs: Standard 1 5/8" (Not included)
Lubrication: Main Priority Oiling, Wet or Dry Sump
Oil Filter Boss: Integral mount for spin-on filter
Oil Cooler Holes: Integral to block
Oil Pan Rail: Standard Big Block Chevy 1-Piece Rear Main Seal Bolt Pattern
Fuel Pump Boss: Yes
Fuel Pump Pushrod: Standard Big Block Chevy
Starter: Standard location
Motor Mounts: Front and side
Stud and Bolt Holes: Blind tapped to prevent leaks
Head Bolt Pattern: Standard Big Block Chevy
Inside Head Bosses: Yes
Torque Specs: All 1/2" bolts 105 ft/lbs
Clutch Linkage Boss: Yes
Weight: Approximately 275 lbs

Part TypeEngine Block

BrandBLUEPRINT ENGINES

Package Width275.0

Weight275.0 PG

Part CategoryPerformance Parts

Main Journal Type454 mains

Engine Block StyleAftermarket/OEM tall deck

Engine Block MaterialCast iron

Cylinder Bore As Shipped4.59 in (116.586 mm)

Engine Block Weight (Lbs.)275

QuantitySold individually

Raised Cam LocationNo

Freeze Plugs IncludedNo

Main Bolt Style4-bolt

Deck Height10.2 in (259.08 mm)

Main Bearings IncludedNo

Main Cap MaterialDuctile iron

Rear Main Seal Style1-piece

Main Caps IncludedYes

Finished Cylinder BoresNo

Cylinder Bore Diameter4.6 in (116.84 mm)

Cam Bearings IncludedNo

Main Cap Fasteners IncludedYes

Vendor Part NumberBPT4600100S

Package Qty1

Package TypeEA
