![E632 Big Block Chevy 632 ci. ProSeries Long Block for Power Adders [775 HP]](https://www.jegs.com/images/mini_750/100/138/138-e632.jpg)

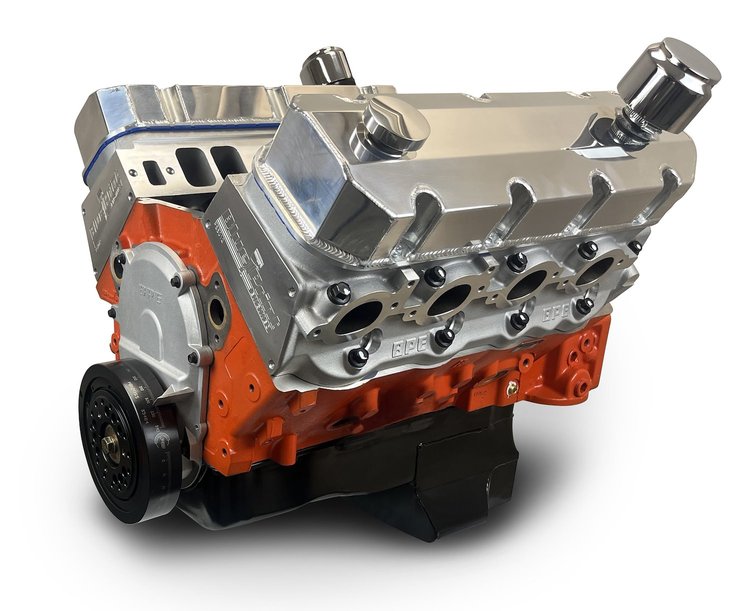

E632 Big Block Chevy 632 ci. ProSeries Long Block for Power Adders [775 HP]
Items You Need
Blueprint Engines E632 Big Block Chevy 632 ci. ProSeries Long Block for Power Adders [775 HP]:
- Block:
- NEW BluePrint Cast Iron Block
- 4-Bolt Main
- 4.600 in. Bore
- 1-Piece Rear Main Seal
- Mechanical Fuel Pump Provision
- Tall Deck (Cylinder Deck is Approx .400 in. Taller/Wider than OEM Block)
- Rotating Assembly:
- Forged Crankshaft w/Dual Keyway
- 4.750 in. Stroke
- Forged H-Beam 6.635 in. Connecting Rods
- ARP 2000 Series Bolts
- Mahle Motorsports Forged Pistons
- Precision Gap, Power Adder Piston Rings
- Internal Balance
- Cylinder Heads:
- BluePrint Aluminum Cylinder Heads PS8012
- Compression Ratio: 9.6:1
- 119 cc Chambers
- 2.30 in. Intake/1.88 in. Exhaust Valves
- 358 cc Intake/125 cc Exhaust Runners
- .300 in. Raised Exhaust Port vs OEM Casting
- MLS Head Gaskets
- Cam Specs:
- Cam Type: Roller
- .698 Intake/.698 Exhaust Lift
- 272 Intake/282 Exhaust Duration @ .050
- Lobe Seperation (LSA) 110
- Also Includes:
- SFI Approved Dual Keyway Harmonic Balancer
- Oil Pan
- Valve Covers
- Timing Cover
Blueprint Engines E632 Big Block Chevy 632 ci. ProSeries Long Block for Power Adders [775 HP] Notes:
- Built to accept Power Adders - Turbo chargers, superchargers, NOS etc.
- This engine features .300 raised exhaust ports and .400 deck height increase over OEM
- Built with Dual Keyway Crankshaft for Harmonic Balancer
- Must verify clearance of exhaust, shift linkage, steering components etc
Emissions Note:
This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.
CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
Maximum Big Block Chevy Stroker Performance!!
Blueprint Pro Series 632 ci Big Block Chevy engines are a great choice for reliable high-performance power. Dyno tested for quality assurance, Blueprint crate engine will include dyno sheets for proven results. All rotating assemblies are balanced within 2 grams on a computerized balancer. Best of all, Blueprint Pro Series engines feature a 30 Month/50,000 Mile Warranty.
Show More
Recommended Stall Converter: 2200+ RPM
Recommended Fuel: 91 Octane
Block:
- BluePrint Engines new block casting - 10.2 in. Tall Deck
- 1-Piece Rear Main Seal
- 4-Bolt Main with 4.600 in. Bore
Rotating Assembly: - Forged 4.750 in. Stroke Crank
- Forged 6.635 in. H-Beam Connecting Rods
- Forged Pistons
- Mahle Rings
- Compression: 11:1
- Bore/Stroke: 4.600 in. /4.750 in.
- Oil Pump
- Double Roller Timing Set
- Harmonic Balancer
Cylinder Heads: - Blueprint Aluminum with 119cc Chambers - 138-PS8012
- Roller Rocker Arms
- Aluminum Valve Covers
- Recommended Spark Plugs: Champion 792 with .035 in. gap
Hydraulic Roller Camshaft: - Duration @ .050 in. Lift: 258 Intake / 266 Exhaust
- Lift: .647 in. Intake / .647 in. Exhaust
- Lobe Separation: 112 Degrees
Dress Engine Includes: - 1250 cfm Dominator Carb or Holley Sniper Fuel Injected
- Distributor
- Intake manifold
- Oil Pan
- Spark Plugs
- Spark Plug Wires
Note: Your BluePrint engine was dyno tested with the parts and specifications listed below. If you prefer to install a different part, your engine may not produce the horsepower recorded on your dyno sheet.
- Part Number: PS6320CT
- Fuel Delivery Type: Carbureted
- Spark Plug: Champion 792
- Spark Plug Gap: .035 in.
- Harmonic Balancer: Non-Weighted
- Flexplate/Flywheel: Non-Weighted
- Intake Manifold: Single plane
- Fuel Recommendation: 91 Octane
- Timing (Initial/Total Advance): Initial timing - 10-16 Degrees and Total timing 32-34Degrees
- Firing Order: 1-8-4-3-6-5-7-2
