• See Fitment Tab for Vehicles That Meet Emissions Requirements

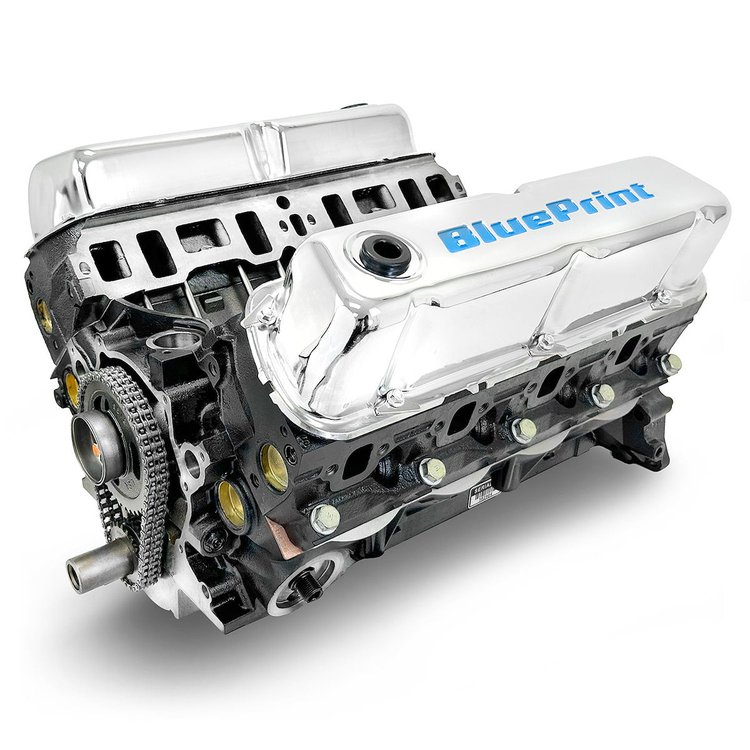

Blueprint Engines F3029293 Ford Replacement Engine:

• Block:
  • NEW BluePrint Cast Iron Block
  • 4-Bolt Main
  • 4 in. Bore
  • 1-Piece Rear Main Seal
• Rotating Assembly:
  • Ford, Machined and Balanced by BluePrint Engines
  • 3 in. Stroke
  • OEM Type 5.090 in. Connecting Rods
  • OEM Spec Pistons
  • 50 oz Externally balanced Front and Rear
• Cylinder Heads:
  • Iron Heads
• Cam Specs:
  • Cam Type: Hydraulic Roller
  • OEM Spec Per Listed Vehicles
  • .278 Intake/.278 Exhaust Lift
  • 210 Intake/211 Exhaust Duration @ .050
  • Lobe Seperation (LSA) 115
  • Firing Order: 1-5-4-2-6-3-7-8
• Ignition Timing:
  • OEM Specifications
• Also Includes:
  • Valve Covers

Blueprint Engines F3029293 Ford Replacement Engine Notes:

• Designed as factory replacement long block for specified vehicles and year ranges, using OEM specification parts. Customer to re-use existing intake manifold, ecu (if equipped), exhaust, fuel system etc. Modification or replacement of provided tinware, and minor accommodations such as dipstick location may be required
• Specifically designed as an OEM spec engine to meet emissions requirements of the specified vehicles, to meet the criteria of ""replacement engine"" in all 50 states
• See Vehicle Fitment Tab for fitment
