Product Discontinued
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

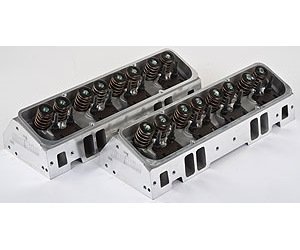

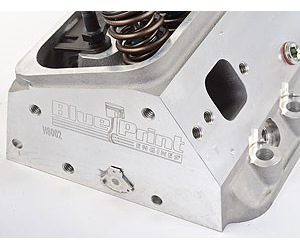

Muscle Car Series Aluminum Cylinder Heads
- Aluminum Cylinder Head
- SB-Chevy
- 195CC Intake
- 64CC Combustion Chamber
- Straight Plug
- Assembled
- Single Head
Features: - Combustion Chamber Volume (cc): 64cc
- Intake Runner Volume (cc): 195cc
- Exhaust Runner Volume (cc): 75cc
- Intake Port Location: Standard
- Exhaust Port Shape: Square-port
- Exhaust Port Location: Standard
- Spark Plug Style: Straight, .750 Reach Gasket
- Intake Valve Diameter (in): 2.020"
- Exhaust Valve Diameter (in): 1.600"
- Maximum Valve Lift (in): .575"
- Spring Pressure Closed: 115-125 @ 1.800"
- Spring Pressure Open: 295-305 @ 1.225"
- Outside Diameter of Outer Spring (in): 1.437"
- Number of Springs Per Valve: Dual
- Retainer Material: Chromemoly steel
- Lock Style: 7 degree
- Valve Stem Seal Style: Viton® Fluoroelastomer
- Rocker Arm Nut Thread Size: 3/8" x 24
- Guideplate Pushrod Size: 5/16"
- Valve Cover Mounting Style: Perimeter bolt
- Accessory Bolt Holes Drilled: Yes
- Intake Valve Angle: 23 Degrees
- Exhaust Valve Angle: 23 Degrees
- Valve Guide Material: Manganese bronze
- Valve Seat Machine Style: 3-angle
- Valve Seat Material: Chrome Nickel
- Steam Holes Drilled: No
- Oiling Style: Through pushrod
- Machined for O-Ring: NoHeat Crossover: No
BrandBLUEPRINT ENGINES
Package Height7.1
Package Width9.7
Package Length21.6
Weight30.87 PG
Part CategoryPerformance Parts
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
