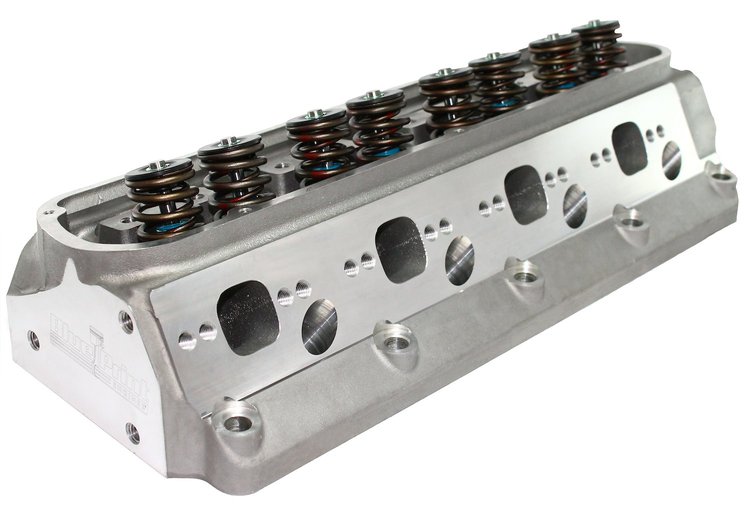

HP9009 Muscle Car Series Aluminum Cylinder Head Small Block Ford
InfoVehicle Info Needed
BLUEPRINT ENGINESPART NUMBER: 138-HP9009

HP9009 Muscle Car Series Aluminum Cylinder Head Small Block Ford

$84900
ShippingShips on 12/02/2026
Lowest PriceLowest Price Guarantee

Muscle Car Series Aluminum Cylinder Heads
Aluminum Cylinder Head
  • SB Ford Aluminum Cylinder Head 190cc Stud Mount Assembled
  • Combustion Chamber Volume (cc): 60cc
  • Exhaust Runner Volume (cc): 65cc
  • Exhaust Valve Angle: 20
  • Exhaust Valve Diameter (in.): 1.600 in.

    This assembled aluminum cylinder head fits small block Ford engines with stud mount rocker arms. It has 190cc intake runners, 60cc combustion chambers, square exhaust ports and a 20 degree valve angle, and is set up for a hydraulic roller camshaft.

    BluePrint Engines HP9009 Cylinder Head Features:

    • Combustion Chamber Volume (cc): 60cc
    • Exhaust Runner Volume (cc): 65cc
    • Exhaust Valve Angle: 20
    • Exhaust Valve Diameter (in.): 1.600 in.
    • Guide plate Pushrod Size: 5/16 in.
    • Includes damper spring, exhaust valves, guide plates, intake valves, locks, retainers, valve guides, valve springs, valve stem seals
    • Intake Runner Volume (cc): 190cc
    • Intake Valve Angle: 20

    BluePrint Engines HP9009 Installation Notes:

    • Uses Stud mount rocker arms
    • BluePrint Muscle Car Series Small Block Ford Aluminum Cylinder heads are designed to accomodate hydraulic flat tappet and hydraulic roller cams. These heads are available with provisions for pedestal mount or stud mount rocker arms. The 190cc intake, 65cc exhaust runners and 60cc combustion chambers are as cast. Great port and combustion chamber design, combined with high quality 21-4n Stainless steel valves, Viton seals, and double springs make these heads a great value as well as making great power!
    Part TypeCylinder Head
    Product LineBlueprint Engines Small Block Ford 190cc Aluminum Cylinder Heads
    BrandBLUEPRINT ENGINES
    Package Height7.1
    Package Width9.6
    Package Length21.8
    Weight29.05 PG
    Part CategoryPerformance Parts
    Cylinder Head MaterialAluminum
    Intake Port LocationStandard
    Exhaust Valves IncludedYes
    Locks IncludedYes
    Retainers IncludedYes
    Lock Style7 degree
    Guideplates IncludedYes
    Rocker Arms IncludedNo
    Oiling StyleThrough pushrod
    Rocker Arm Nuts IncludedNo
    Cylinder Head FinishNatural
    Valve Seats MachinedYes
    Intake Valve Angle20
    Maximum Valve Lift0.575 in (14.605 mm)
    Valve Seat MaterialChrome nickel
    Heat CrossoverNo
    Number Of Springs Per ValveDual
    Valve Springs IncludedYes
    Valve Seat Machine Style5-angle
    Damper Spring IncludedYes
    Valve Guides IncludedYes
    Cnc-Machined Intake RunnerNo
    Intake Valves IncludedYes
    QuantitySold individually
    Valve Stem Seals IncludedYes
    Intake Valve Diameter2.02 in (51.308 mm)
    Accessory Bolt Holes DrilledYes
    Exhaust Runner Volume (Cc)65
    Exhaust Port LocationStandard
    Valve Guide MaterialManganese bronze
    Outside Diameter Of Outer Spring1.437 in (36.5 mm)
    Combustion Chamber Volume (Cc)60
    Machined For O-RingNo
    Exhaust Valve Angle20
    Steam Holes DrilledNo
    Rocker Arm Studs IncludedYes
    Cylinder Head StyleAssembled
    Part FitmentUniversal
    Valve Cover Mounting StylePerimeter bolt
    Retainer MaterialChromoly steel
    Intake Runner Volume (Cc)190
    Cnc-Machined Exhaust RunnerNo
    Cnc-Machined Combustion ChamberNo
    Exhaust Valve Diameter1.6 in (40.64 mm)
    Vendor Part NumberHP9009
    Package Qty1
    Package TypeEA
