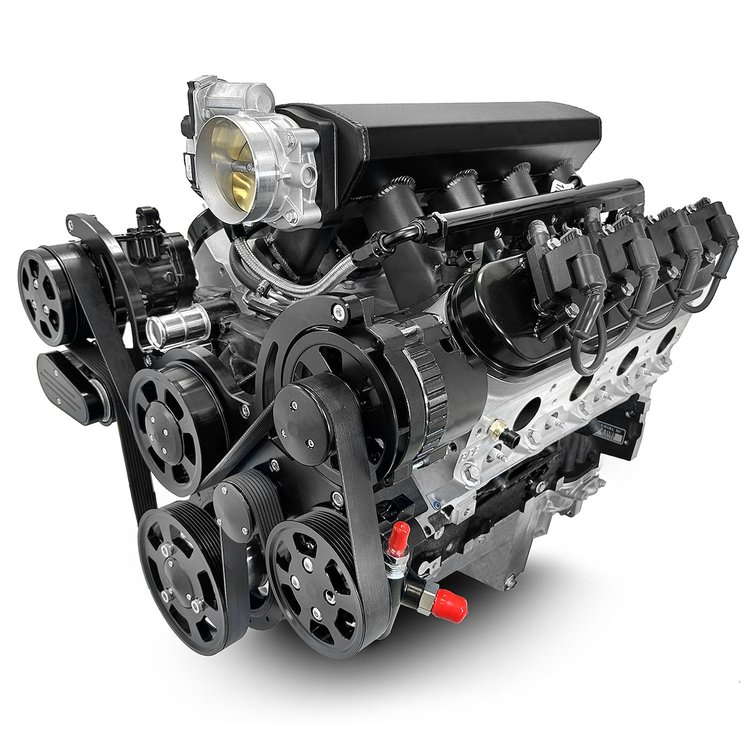

PSLS37651CTFKB GM LS 376 ci. (6.2L) ProSeries Deluxe Dressed Engine w/LS3 Fabricated Aluminum Intake & Black Pulley Kit [525 HP]
InfoVehicle Info Needed
BLUEPRINT ENGINESPART NUMBER: 138-LS37651CTFKB

PSLS37651CTFKB GM LS 376 ci. (6.2L) ProSeries Deluxe Dressed Engine w/LS3 Fabricated Aluminum Intake & Black Pulley Kit [525 HP]

$13,89900
Truck Freight
ShippingShips on 12/29/2026
Lowest PriceLowest Price Guarantee

Items You Need

1-Ton Automotive Shop Crane [Boom Operating Range: 34 in. to 45 in.]

JEGS

1-Ton Automotive Shop Crane [Boom Operating Range: 34 in. to 45 in.]

Part Number : 555-81044K
$23698
GM LS Engine Swap Headers for 1967-1999 GM Pickup Trucks [Black]

JEGS

GM LS Engine Swap Headers for 1967-1999 GM Pickup Trucks [Black]

Part Number : 555-30069
$14999$349.99
You Save$200.00
LS Engine Swap Motor-Mount Adapters Billet Aluminum [Adapts Chevy Motor-Mounts to LS-Series Engine]

JEGS

LS Engine Swap Motor-Mount Adapters Billet Aluminum [Adapts Chevy Motor-Mounts to LS-Series Engine]

Part Number : 555-50539
$4999$54.29
You Save$4.30
Motor Mount LS Engines

CHEVROLET PERFORMANCE

Motor Mount LS Engines

Part Number : 809-10349965
$9699

LS3 Fabricated Aluminum Intake Manifold
GM LS 376 ci. (6.2L) ProSeries Deluxe Dressed Engine
  • 525 HP/460 ft.lbs. TQ
  • New Cast Iron Block
  • New LS3 Aluminum Cylinder Heads
  • LS3 Fabricated Aluminum Intake Manifold
  • Black Pulley Kit
  • INCLUDES Holley Terminator X Max EFI System

    Blueprint Engines PSLS37651CTFKB GM LS 376 ci. (6.2L) ProSeries Deluxe Dressed Engine w/LS3 Fabricated Aluminum Intake & Black Pulley Kit [525 HP]:

    • Block:
      • NEW BluePrint High-Strength Cast Iron (LSX Style) Block
      • Increased Deck Thickness and Strength Webbing
      • Extended Cylinder Skirt
      • Priority Main Oiling
      • 6-Bolt Main
      • 4.0662 in. Bore
      • 1-Piece Rear Main Seal
      • Improved Water Jacket Design
      • Utilizes OEM LS3 Front and Rear Covers
    • Rotating Assembly:
      • Nodular Iron Crankshaft
      • 3.622 in. Stroke
      • 6.125 in. Connecting Rods w/150000 PSI Bolts
      • Hypereutectic Pistons
      • Internally Balanced Front and Rear
    • Cylinder Heads:
      • BluePrint Aluminum Cylinder Heads PS8015
      • Compression Ratio: 10.7:1
      • 69 cc Chambers
      • 2.165 in. Intake/1.590 in. Exhaust Valves
      • 259 cc Intake/102 cc Exhaust Runners
    • Cam Specs:
      • Cam Type: Hydraulic Roller
      • .612 Intake/.585 Exhaust Lift
      • 225 Intake/238 Exhaust Duration @ .050
      • Lobe Separation (LSA) 113
    • Holley Terminator X Max Specific Features and Benefits:
      • Real Time Fuel Map Learning simplifies tuning by dynamically adjusting the base fuel rate
      • On-board Bosch LSU 4.9 wideband control, enabling accurate AFR readings and closed loop tuning
      • Eight high impedance injector drivers, ideal for stock LS injectors and Holley EFI injectors
      • Integrated 1-Bar MAP sensor for naturally aspirated or nitrous setups, with harness support for external higher bar sensors if needed
      • 4 configurable inputs (12V, ground, 5V, frequency) and 2 outputs (ground, PWM), ideal for electric fans, boost control solenoids, nitrous control, and more
      • Free PC tuning software via USB/CAN interface for full laptop control and advanced setup
      • Integrated 3.5 in. touchscreen handheld with setup wizard, internal data logging, and real-time gauge displays
      • Terminator X Max ECU includes a base timing map pre-configured for this engine
    • Also Includes:
      • Drive by Wire Throttle Body - BPP12191019
      • LS3 Fabricated Aluminum Intake Manifold
      • LS Swap Oil Pan - BPP81073
      • Water Pump - BPPLS126WP
      • Injectors and Fuel Rail Kit
      • Spark Plugs & Wiring
      • Harmonic Balancer
      • Timing Cover
      • Valve Covers
      • Coil Packs
      • Gas Pedal
      • Black Pulley Kit
        • LS2 Style Water Pump
        • 1- Wire 140 amp Alternator
        • Peanut Style Air Conditioning Compressor
        • Type II Power Steering Pump with Remote Reservoir

    Blueprint Engines PSLS37651CTFKB GM LS 376 ci. (6.2L) ProSeries Deluxe Dressed Engine w/LS3 Fabricated Aluminum Intake & Black Pulley Kit [525 HP] Notes:

    • This engine requires a non-weighted flex plate such as (BPP12654640) or flywheel (BPPLS1611)
    • Recommended fuel: 91 octane
    • BluePrint Engines recommends a 2200+ RPM stall converter
    • Retro fit oil pan fits most 1955–1995 GM front engine, RWD, V8 cars
    • Not for use in pollution-controlled vehicles or in dry sump applications
    • This Holley EFI-equipped engine has a fully calibrated ECU by BluePrint Engines; do not follow the Holley EFI manual for ECU calibration

    Emissions Note:

    This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.

    CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART

  • Part TypeCrate Engine
    BrandBLUEPRINT ENGINES
    Package Height27.0
    Package Width30.0
    Package Length38.0
    Weight610.0 PG
    Part CategoryPerformance Parts
    Engine TypeHigh-Performance Crate Engine
    Cylinder Head MaterialAluminum
    Engine Block MaterialCast Iron
    Dyno TestedYes
    Fuel DeliveryFuel Injected
    Engine Assembly StyleDeluxe Dressed
    Part FitmentSemi Universal
    Engine Displacement376 ci. (6.2L)
    Engine Make/SizeGM Gen III/IV LS
    Camshaft StyleHydraulic Roller
    Vendor Part NumberPSLS37651CTFKB
    Package Qty1
    Package TypeEA
