Made in USA

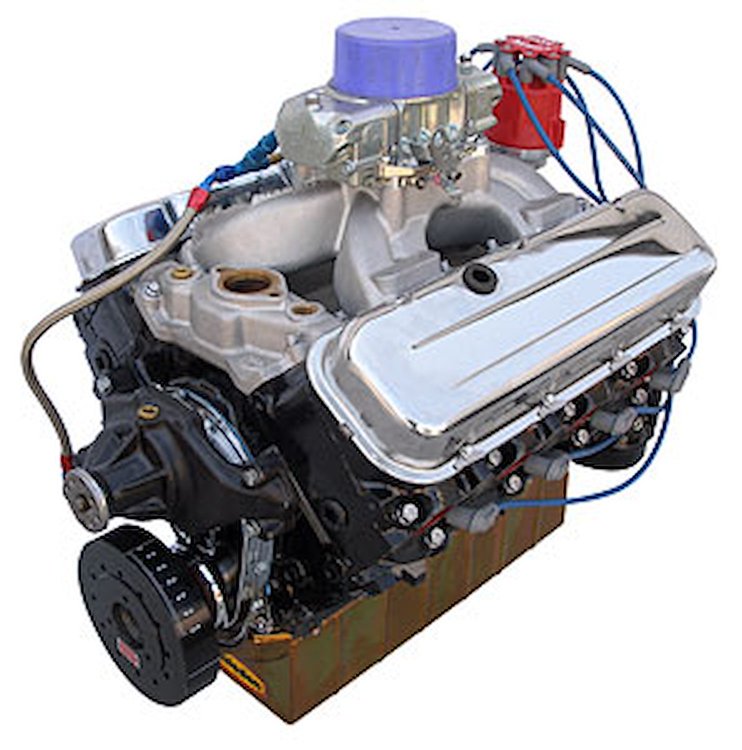

MBP4960CTC Big Block Chevy Marine Dress Engine 496ci / 460HP / 515TQ
InfoVehicle Info Needed
BLUEPRINT ENGINESPART NUMBER: 138-MBP4960CTC

MBP4960CTC Big Block Chevy Marine Dress Engine 496ci / 460HP / 515TQ

$9,97999
Truck Freight
ShippingShips on 09/17/2026
Lowest PriceLowest Price Guarantee

Dress Engine
    Big Block Chevy Marine Dress Engine
  • 496ci / 460HP / 515TQ
  • 2-Piece Rear Main Seal

  • These engines require neutral balance balancers and flywheels

    Engine Break-In Procedure

    Use or break-in oil or conventional (non-synthetic) multi-viscosity oil with zinc additive for the first 30 hours of operation. Avoid hard acceleration for sustained periods. Periodically change the engine speed to help seat the rings. While the engine is running, be sure to check oil pressure and coolant temperature, and check for fluid leaks, such as oil, fuel, and coolant/antifreeze. Also listen for any unusual sounds. Should you hear an unusual sound, shut the engine off, check for the source, and correct it.

    Engines with flat tappet cams only - Start the engine and bring it to 2,000 RPM. Get the engine running smoothly. Then vary the engine speed from 1,800-2,200 RPM in a slow acceleration/deceleration cycle for 30 minutes. This is necessary to provide adequate oil splash and lifter rotation to properly mate each lifter to its lobe.

    After 30 hours of operation change the engine oil and filter. For flat tappet cam engines, continued use of oil with zinc or a zinc additive for the life of your engine is recommended.



Part TypeEngine
BrandBLUEPRINT ENGINES
Package Height26.0
Package Width36.0
Package Length44.0
Weight742.0 PG
Part CategoryPerformance Parts
Wiring Harness IncludedNo
Spark Plug Wires IncludedYes
Cylinder Head MaterialCast iron
Air Cleaner IncludedNo
Carburetor IncludedYes
Carb Eo NumberN/A
Water Pump IncludedYes
EmissionNot Legal
Flexplate IncludedNo
AssembledYes
Engine Assembly StyleLong block
Intake Manifold IncludedYes
Engine Make/SizeChevy Big Block
Flywheel IncludedNo
Rear Main Seal Style2-piece
Valve Covers IncludedYes
Horsepower460
Distributor IncludedYes
Camshaft StyleHydraulic flat tappet
Cylinder Heads IncludedYes
Computer IncludedNo
Throttle Body IncludedNo
Harmonic Balancer IncludedYes
QuantitySold individually
Fuel DeliveryOne Carb
Rpm Power Range1800-5800
Engine BalanceInternal
Compression Ratio9.0:1
Oil Pan IncludedYes
Timing Cover IncludedYes
Spark Plugs IncludedYes
Vendor Part NumberMBP4960CTC
Package Qty1
Package TypeEA
