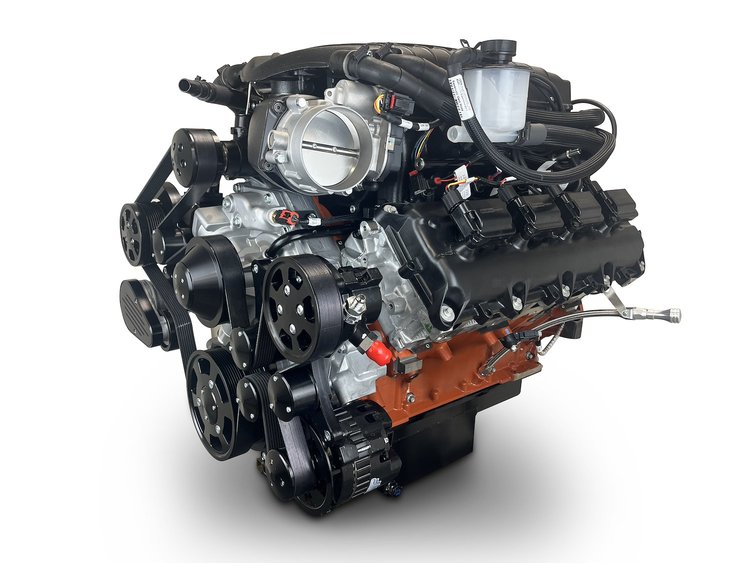

Blueprint PS426SCTKB Chrysler Gen III Hemi Compatible 426 ci. Supercharged ProSeries Deluxe Dressed Engine:

• Block:
  • NEW “BGE” Hellcat Engine Block
  • 4-Bolt Mains
  • 4.090 in. Bore
  • 1-Piece Rear Main Seal
• Rotating Assembly:
  • Forged Steel Crank
  • 4.050 in. Stroke
  • 6.125 in. Connecting Rods
  • Forged Pistons
  • Internally Balanced Front and Rear
• Cylinder Heads:
  • Gen III Hemi Apache Aluminum Cylinder Heads
  • Compression Ratio: 10.48:1
  • 73 cc Combustion Chambers
  • 2.140 in. Intake/1.650 in. Exhaust Valves
• Cam Specs:
  • Cam Type: Hydraulic Roller
  • .610 Intake/.611 Exhaust Lift
  • 231 Intake/255 Exhaust Duration @ .050
  • Lobe Seperation (LSA) 113
• Ignition Timing:
  • Controlled by ECU
• Also Includes:
  • Whipple 3.0L Supercharger
  • Supercharger Coolant Reservoir
  • Hellcat Throttle Body
  • Harmonic Balancer
  • Fabricated Intake Manifold
  • Muscle Car Style Mid-Sump Oil Pan
  • Spark Plugs
  • Coils
  • Timing Cover
  • Valve Covers
  • Water Pump
  • Holley Terminator ECU Controller Kit and Wiring Harness
  • Black Front Accessory Drive with Water Pump, Alternator, Power Steering Pump, and A/C Compressor

Blueprint PS426SCTKB Chrysler Gen III Hemi Compatible 426 ci. Supercharged ProSeries Deluxe Dressed Engine Notes:

• 2013 + 58X Reluctor Wheel
• 2009 + Crankshaft Spacing
• 2009 + Car Timing Cover
• VVT (Variable Valve Timing) Locked Out
• MDS (Multi-Displacement) Eliminated

Emissions Note:

This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.
