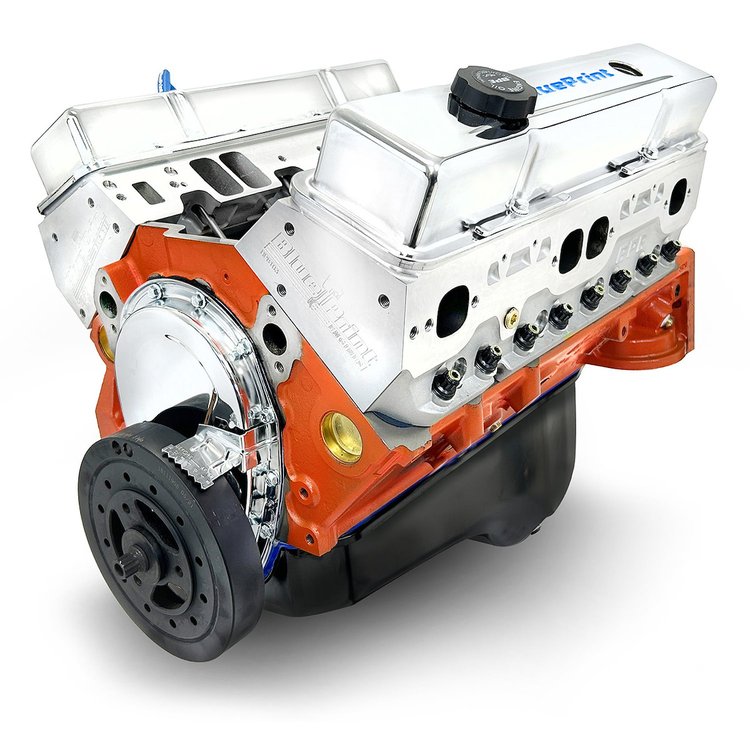

Pro Series 427ci Small Block Chevy Base Engine 540 HP
InfoVehicle Info Needed
BLUEPRINT ENGINESPART NUMBER: 138-PS4272CT

Pro Series 427ci Small Block Chevy Base Engine 540 HP

$8,69900
Truck Freight
ShippingShips on 09/11/2026
Lowest PriceLowest Price Guarantee

Long Block Engines
    Pro Series 427ci Small Block Chevy Base Engine
  • 540 HP
  • 535 ft/lbs. TQ
  • 2-Piece Rear Main Seal

    Engine Break-In Procedure

    Use or break-in oil or conventional (non-synthetic) multi-viscosity oil with zinc additive for the first 500 miles of operation. Avoid hard acceleration for sustained periods. Periodically change the engine speed while driving to help seat the rings. While the engine is running, be sure to check oil pressure and coolant temperature, and check for fluid leaks, such as oil, transmission fluid, fuel, and coolant/antifreeze. Also listen for any unusual sounds. Should you hear an unusual sound, shut the engine off, check for the source, and correct it.

    Engines with flat tappet cams only - Start the engine and bring it to 2,000 RPM. Get the engine running smoothly. Then vary the engine speed from 1,800-2,200 RPM in a slow acceleration/deceleration cycle for 30 minutes. This is necessary to provide adequate oil splash and lifter rotation to properly mate each lifter to its lobe.

    At 500 Miles change the engine oil and filter using conventional (non-synthetic) oil. After 6,000 miles, synthetic oils can be used in your engine.  For flat tappet cam engines, continued use of oil with zinc or a zinc additive for the life of your engine is recommended.

    Emissions Note:

    This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.

    CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART

    Big Cubes = Big Power

    Blueprint Engines GM Compatible Small Block Chevy 427 ci. Crate Engines are a great choice for drivable and reliable high performance engines. All rotating assemblies are balanced within 2 grams on a computerized balancer. Blueprint Pro Series Engines are dyno tested and include dyno sheets.

Part TypeEngine
Product LineBlueprint Engines GM Small Block Chevy 427 ci. ProSeries Engines
BrandBLUEPRINT ENGINES
Package Height27.0
Package Width30.5
Package Length38.0
Weight439.0 PG
Part CategoryPerformance Parts
Engine TypeHigh-Performance Crate Engine
Cylinder Head MaterialAluminum
Engine Block MaterialCast Iron
Fuel Delivery TypeNone
Dyno TestedYes
Engine Assembly StyleLong Block
Part FitmentSemi Universal
Engine Displacement427 ci.
Engine Make/SizeChevy Small Block
Camshaft StyleHydraulic Roller
Package Qty1
Package TypeEA
