BLUEPRINT ENGINESPART NUMBER: 138-PS502CTC

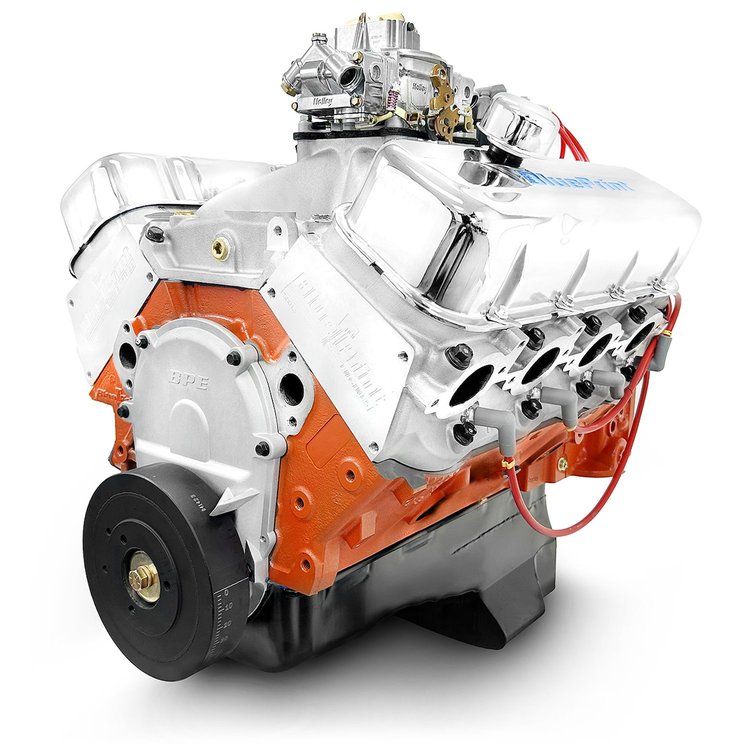

PS502CTC 502CI GM Big Block Compatible Base Dressed, Carb
$12,99900
Truck Freight
Carbureted Crate Engine502 c.i. GM Big Block Compatible 627 HP / 569 lb-ft Torque 10.0:1 Compression Aluminum Cylinder Heads Base Dressed Dyno Tested
This 502 c.i. GM Big Block Compatible Pro Series crate engine is rated at 627 horsepower and 569 lb-ft of torque. It is built on a BluePrint Engines Cast Iron Block (4 Bolt Main, Standard Deck, 4.466 " Bore) and topped with Aluminum Cylinder Heads. Induction is an Edelbrock Single Plane, Satin Aluminum with Holley carburetion. It is dyno tested.
BluePrint Engines PS502CTC Crate Engine Features:
- 627 hp and 569 lb-ft of torque
- 10.0:1 compression ratio
- Camshaft: Hydraulic Roller - .647 Intake / .647 Exhaust Lift - 248 Intake / 254 Exhaust Duration - @.050-112 LSA
- Rotating assembly: Forged Crank, 4.050 in. Stroke and 6.385 in. Rods, forged pistons
- Cylinder heads: Aluminum Cylinder Heads
- Intake: Edelbrock Single Plane, Satin Aluminum, Holley
- Includes oil pan (rear sump), distributor, spark plug wires
- Dyno tested
BluePrint Engines PS502CTC Installation Notes:
- Recommended fuel: 91+ Octane
- Timing: Initial Timing 10-16 - Total Timing 32-34
- Firing order: 1,8,4,3,6,5,7,2
- Recommended torque converter stall speed: 2200+ RPM
- Recommended flexplate/flywheel: BPP168T2P - BPP460130
- Recommended harmonic balancer: BPP454I
- Engine balance: Internally Balanced
- Recommended spark plug: BPP7938 - NGK 7938 BKR5E, gapped at .035 in.
- Air cleaner is not included
Part TypeCrate Engine
BrandBLUEPRINT ENGINES
Package Height34.0
Package Width35.0
Package Length44.0
Weight679.0 PG
Part CategoryPerformance Parts
Spark Plug Wires IncludedYes
Air Cleaner IncludedNo
Cylinder Heads IncludedYes
Water Pump IncludedNo
Harmonic Balancer IncludedYes
QuantityEA
Intake Manifold IncludedYes
Engine Make/SizeChevy Big Block
Engine BalanceInternally Balanced
Compression Ratio10.0:1
Rear Main Seal Style1 Piece
Fuel Delivery Type850cfm Double Pumper Carburetor w/ Manual Choke - Carbureted
Horsepower621
Distributor IncludedYes
Piston MaterialForged
Oil Pan IncludedYes-Rear Sump
Part FitmentSemi Universal
Timing Cover IncludedYes
Spark Plugs IncludedYes
Intake Manifold TypeSingle Plane, Satin Aluminum
Vendor Part NumberPS502CTC
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
