Vehicle Info NeededBLUEPRINT ENGINESPART NUMBER: 138-PS6320CTCX

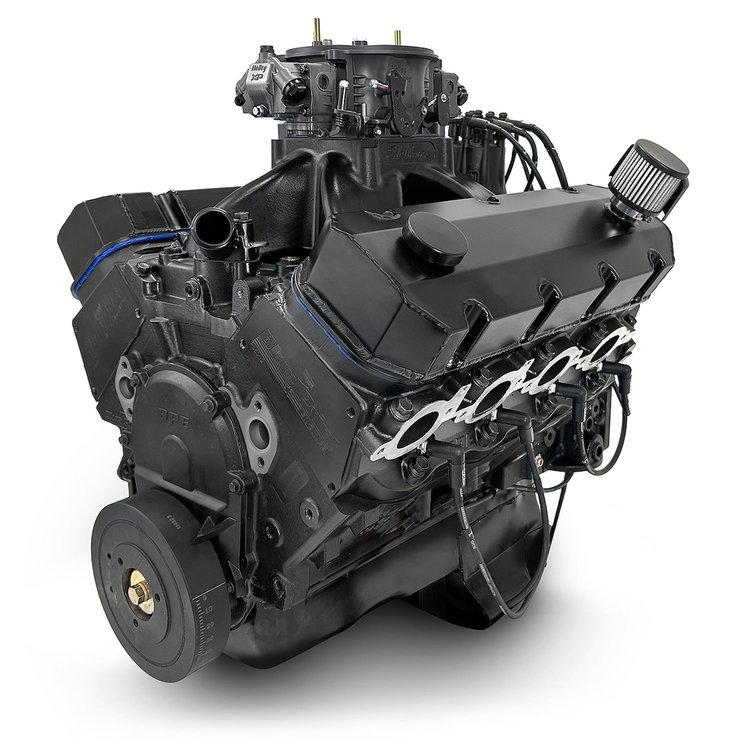

PS6320CTCX 632CI GM Big Block Compatible Base Dressed, Carb, Blackout
$18,59900
Truck Freight
Ships on Sep 08, 2026
Lowest Price Guarantee632 c.i. GM Big Block CompatibleBlackout Deluxe Dressed Carburetor. Includes 30-Month / 50,000 Mile Warranty & Dyno Tested
BluePrint Engines PS6320CTCX
- Air Cleaner Included: No
- Block Description: BluePrint Engines Cast Iron Block - 4 Bolt Main - Tall Deck - 4.600" Bore
- Cam: Hydraulic Roller - .698 Intake / .698 Exhaust Lift - 272 Intake / 282 Exhaust Duration - @.050-110 LSA
- Carb/Fuel Injection Included: Yes
- Compression Ratio: 11:01
- Crankshaft Vendor: BluePrint Engines
- Cylinder Head Vendor: BluePrint Engines
- Cylinder Heads: Aluminum Cylinder Heads
- Cylinder Heads Included: Yes
- Distributor Included: Yes
- Distributor Vendor: BluePrint Pro Billet
- Engine Balance: Internally Balanced
- Firing Order: 1,8,4,3,6,5,7,2
- flexplate/flywheel included: No
- Fuel Delivery Type: 1250cfm Gen 3 Ultra Dominator - Black - Carbureted
- Fuel Delivery Vendor: Holley
- Harmonic Balancer Included: Yes
- Horsepower: 815
- Intake Manifold Included: Yes
- Intake Manifold Type: Single Plane, Satin Aluminum
- Intake Manifold Vendor: Edelbrock
- Oil Pan Included: Yes-Rear Sump
- Pistons: Forged
- Quantity: EA
- Rear Main Seal Style: 1 Piece
- Recommended Flexplate/Flywheel: BPP168T2P - BPP460130
- Recommended Harmonic Balancer: BPP454I
- Recommended Octane Fuel: 91+ Octane
- Recommended Spark Plug: BPP7938 - NGK 7938 BKR5E
- Recommended Spark Plug Gap: .035 in.
- Recommended Stall Converter: 3800-4200 RPM
- Rotating Assembly: Forged Crank - 4.750 in. Stroke and 6.635 in. Rods
- Spark Plug Wires Included: Yes
- Spark Plugs Included: Yes
- Timing Cover Included: Yes
- Timing Requirements: Initial Timing 10-16 - Total Timing 32-34
- Torque: 775
- Water Pump Included: No
Part TypeEngine
BrandBLUEPRINT ENGINES
Package Height34.0
Package Width35.0
Package Length44.0
Weight750.0 PG
Part CategoryPerformance Parts
Spark Plug Wires IncludedYes
Air Cleaner IncludedNo
Cylinder Heads IncludedYes
Water Pump IncludedNo
Harmonic Balancer IncludedYes
QuantityEA
Intake Manifold IncludedYes
Engine BalanceInternally Balanced
Compression Ratio11:01
Rear Main Seal Style1 Piece
Fuel Delivery Type1250cfm Gen 3 Ultra Dominator - Black - Carbureted
Horsepower815
Distributor IncludedYes
Oil Pan IncludedYes-Rear Sump
Part FitmentSemi Universal
Timing Cover IncludedYes
Spark Plugs IncludedYes
Intake Manifold TypeSingle Plane, Satin Aluminum
Vendor Part NumberPS6320CTCX
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
