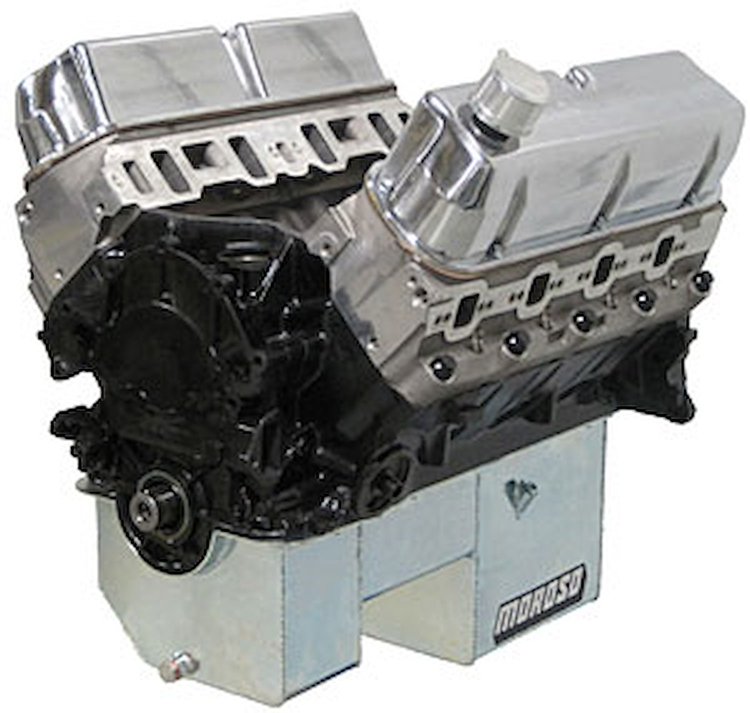

Blueprint Pro Series Small Block Ford 427ci/525HP Base Engine

Name: Blueprint Pro Series Small Block Ford 427ci/525HP Base Engine
Brand: BLUEPRINT ENGINES
SKU: 138-PSF4270CT
Price: 11199.99 USD
Availability: OutOfStock

Currently Unavailable

This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

Base Engine

Base Engine

30 month/50,000 mile warranty.

Recommended Stall Converter: 2200+ rpm
Recommended Fuel: 91 Octane

Available as a:

Base engine - Basic Blueprint engine with cylinder heads and valve covers
Dress engine - Complete engine includes aluminum intake manifold, carburetor, distributor and other accessories
Block:
NEW World Products Man 'O War 351W w/ 9.5" Deck Height
2-Piece Rear Main Seal
Rotating Assembly:
SCAT 4340 Forged 4.000" Stroke Crank
SCAT 4340 Forged 6.200" Rods
Forged pistons with 10:1 compression ratio
Mahle rings
Melling oil pump
Cloyes double roller timing set
Cylinder Heads:
AFR Aluminum, 72cc chamber
Comp Cams pushrods
Comp Cams roller rocker arms
Aluminum valve covers
Recommended Spark Plugs: Champion 792 w/ .035" Gap
Camshaft Specs:
Hydraulic Roller
Duration @ .050'' Lift: 258 Intake / 266 Exhaust
Lift: .577'' Intake / .577'' Exhaust
112Â° Lobe Seperation
Dress Model Adds:
Carb: 850cfm AED
Distributor: MSD Pro Billet
Edelbrock Single Plane Satin Aluminum Intake Manifold
Oil pan: Moroso
Spark Plugs: Champion
Spark Plug Wires: MSD
Horsepower: 525
Torque: 510
