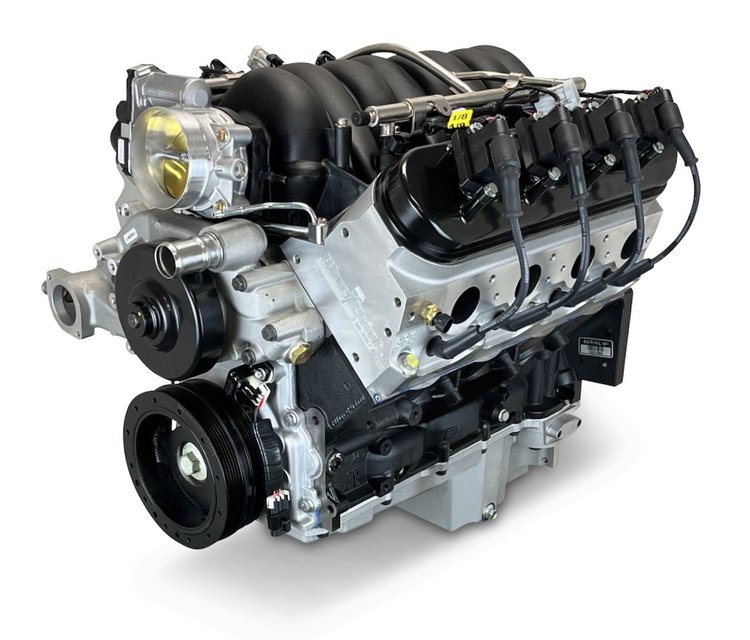

Blueprint Engines PSLS3763CTF GM LS 376 ci. (6.2L) ProSeries Base Dressed Engine w/GM Plastic Intake Manifold [530 HP]:

• Block:
  • NEW BluePrint High-Strength Cast Iron 6.2L Block
  • Increased Deck Thickness and Strength Webbing
  • Extended Cylinder Skirt
  • Priority Main Oiling
  • 6-Bolt Main
  • 4.0662 in. Bore
  • 1-Piece Rear Main Seal
  • Improved Water Jacket Design
  • Utilizes OEM LS3 Front and Rear Covers
• Rotating Assembly:
  • Nodular Iron Crankshaft
  • 3.622 in. Stroke
  • 6.125 in. Connecting Rods w/150000 PSI Bolts
  • Hypereutectic Pistons
  • Internally Balanced Front and Rear
• Cylinder Heads:
  • BluePrint Aluminum Cylinder Heads PS8015
  • Compression Ratio: 10.7:1
  • 69 cc Chambers
  • 2.165 in. Intake/1.590 in. Exhaust Valves
  • 259 cc Intake/102 cc Exhaust Runners
• Cam Specs:
  • Cam Type: Roller
  • .612 Intake/.585 Exhaust Lift
  • 225 Intake/238 Exhaust Duration @ .050
  • Lobe Seperation (LSA) 113
• Ignition Timing:
  • Controlled by Customer Provided ECU
• Also Includes:
  • DBW (Drive by Wire) Throttle Body
  • GM Plastic Intake Manifold
  • Fuel Injectors and Rails
  • Coil Packs
  • Spark Plugs and Wires
  • Water Pump
  • Oil Pan
  • Valve Covers
  • Timing Cover
  • Harmonic Balancer

Blueprint Engines PSLS3763CTF GM LS 376 ci. (6.2L) ProSeries Base Dressed Engine w/GM Plastic Intake Manifold [530 HP] Notes:

• Engine is not shipped with Engine controller kit. Must purchase separately for your application
• BluePrint Engines recommends Air Intake Kit BPPLS01013 (sold separately) to ensure correct MAF calculations and Dyno calibrations are maintained

Emissions Note:

This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.
