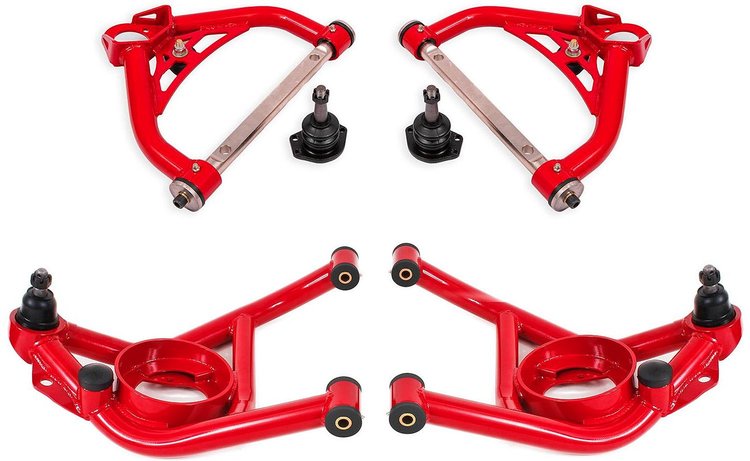

AAK322R Front Upper & Lower A-Arms for 1970-1981 GM F-Body, 1975-1979 GM X-Body [Red Powder Coat]
InfoVehicle Info Needed
BMR SUSPENSIONPART NUMBER: 142-AAK322R

AAK322R Front Upper & Lower A-Arms for 1970-1981 GM F-Body, 1975-1979 GM X-Body [Red Powder Coat]

$88396$1039.95You Save$155.99
ShippingShips on 11/24/2026
Lowest PriceLowest Price Guarantee

Items You Need

Control Arm Hardware Kit 1970-81 GM F-Body

BMR SUSPENSION

Control Arm Hardware Kit 1970-81 GM F-Body

Part Number : 142-RH009
$3651$42.95
You Save$6.44
SP313 Lowering Leaf Spring Kit for 1967-1969 GM F-Body, 1968-1974 GM X-Body [2 in. Drop]

BMR SUSPENSION

SP313 Lowering Leaf Spring Kit for 1967-1969 GM F-Body, 1968-1974 GM X-Body [2 in. Drop]

Part Number : 142-SP313
$48446$569.95
You Save$85.49
SP317 Lowering Leaf Spring Kit for 1967-1969 GM F-Body, 1968-1974 GM X-Body [3 in. Drop]

BMR SUSPENSION

SP317 Lowering Leaf Spring Kit for 1967-1969 GM F-Body, 1968-1974 GM X-Body [3 in. Drop]

Part Number : 142-SP317
$50996$599.95
You Save$89.99
Caster/Camber Gauge [Camber Angles: +/- 8 Deg.]

JEGS

Caster/Camber Gauge [Camber Angles: +/- 8 Deg.]

Part Number : 555-81679
$17599$204.99
You Save$29.00

GM F-Body - 2nd Gen
GM X-Body
Front Upper & Lower Control Arms
  • 1970-1981 GM F-Body,
  • 1975-1979 GM X-Body
  • Adds Additional Caster
  • Eliminates Deflection
  • Greaseable Delrin Bushings
  • 0.5 in. Tall Ball Joints
  • Red Powder Coat

    BMR Suspension AAK322R Front Upper & Lower A-Arms:

    • Includes both lower AAL321 and upper AAU322 control arms
    • Manufactured from heavy-duty DOM steel tubing
    • Laser-cut, CNC-formed steel plate braces
    • Greaseable, internally fluted Delrin bushings
    • Includes new tall ball joints on upper control arms (AAU322)
    • Preassembled with new ball joints and polyurethane bump stops (AAL321)
    • Eliminates A-arm deflection
    • Non-adjustable
    • Requires less shim stack for negative camber than OE arms
    • Two additional degrees of positive caster built into lower and upper A-arms, providing a total of four additional degrees of positive caster in the kit
    • Provides additional header clearance
    • Improves steering feel and response for normal and performance driving
    • Red powder coat for long lasting good looks

    BMR Suspension AAK322R Front Upper & Lower A-Arms Notes:

    • Recommended Control Arm Hardware Kit BMR RH0096 (sold separately)
  • Part TypeControl Arm
    BrandBMR SUSPENSION
    Package Height10.0
    Package Width19.0
    Package Length27.0
    Weight46.0 PG
    Part CategoryPerformance Parts
    Bushing(S) IncludedYes
    Ball Joint IncludedYes
    Hardware IncludedNo
    Arm FinishRed Powder Coat
    Bushing MaterialDelrin
    Arm MaterialSteel
    QuantitySold as a Kit
    Bushings IncludedYes
    Part FitmentDirect Fit
    AdjustableNo
    Control Arm StyleTubular
    Vendor Part NumberAAK322R
    Package Qty1
    Package TypeEA
