Made in USA

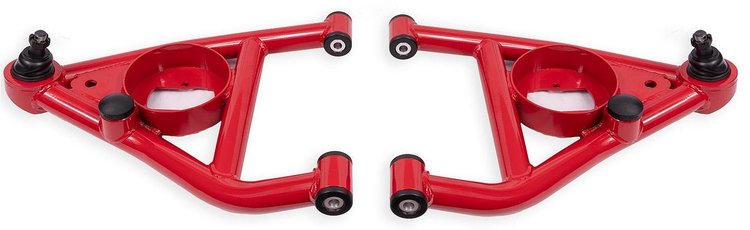

AAL311R Front Lower A-Arms for 1967-1969 GM F-Body, 1968-1974 GM X-Body w/Forward Bump Stops [Red Powder Coat]
InfoVehicle Info Needed
BMR SUSPENSIONPART NUMBER: 142-AAL311R

AAL311R Front Lower A-Arms for 1967-1969 GM F-Body, 1968-1974 GM X-Body w/Forward Bump Stops [Red Powder Coat]

$60995
ShippingShips on 09/15/2026
Lowest PriceLowest Price Guarantee

GM F-Body - 1st Gen
GM X-Body
Front Lower Control Arms
  • 1967-1969 GM F-Body
  • 1968-1974 GM X-Body
  • Cars w/Bump Stops on Front Side of Control Arm
  • Adds Additional Caster
  • Eliminates Deflection
  • Greaseable Delrin Bushings
  • Ball Joints
  • Red Powder Coat
  • Pair

    BMR Suspension AAL311R Front Lower A-Arms:

    • Fabricated from heavy-duty 1.625-inch, 0.120-inch wall DOM tubing
    • Laser-cut, CNC-formed plate steel braces for extra strength
    • Eliminates A-arm deflection for improved steering feel and response
    • Fitted with heavy-duty ball joints
    • Greaseable, internally fluted Delrin bushings for solid, responsive feel
    • Fluted bushings allow grease to evenly coat the inner sleeve and thrust surface
    • Ensures quiet, reliable operation over the life of the bushings
    • Greatly improves steering response in both normal and performance driving
    • Delrin bushings reduce deflection compared to stock rubber bushings
    • Engineered for street performance, drag race, handling, and pro-touring use
    • Provides 2 additional degrees of positive caster for increased high-speed stability
    • Combine with BMR Upper A-arms for a total of up to 6 degrees of positive caster
    • Improves geometry and increases lateral grip during cornering situations

    BMR Suspension AAL311R Front Lower A-Arms Note:

    • Recommended Control Arm Hardware Kit BMR RH006 (sold separately)
  • Part TypeControl Arm
    BrandBMR SUSPENSION
    Package Height7.0
    Package Width19.0
    Package Length27.0
    Weight28.0 PG
    Part CategoryPerformance Parts
    Ball Joint IncludedYes
    Hardware IncludedNo
    Arm FinishRed Powder Coat
    Bushing MaterialDelrin
    Arm MaterialSteel
    QuantitySold as a pair
    Part FitmentDirect Fit
    Bushings IncludedYes
    AdjustableNo
    Control Arm StyleTubular
    Vendor Part NumberAAL311R
    Package Qty1
    Package TypeEA
